SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
PM240 Power Modules –
0.37 kW to 250 kW (0.5 hp to 400 hp)
4/45
Siemens D 11.1 · 2009
4
■

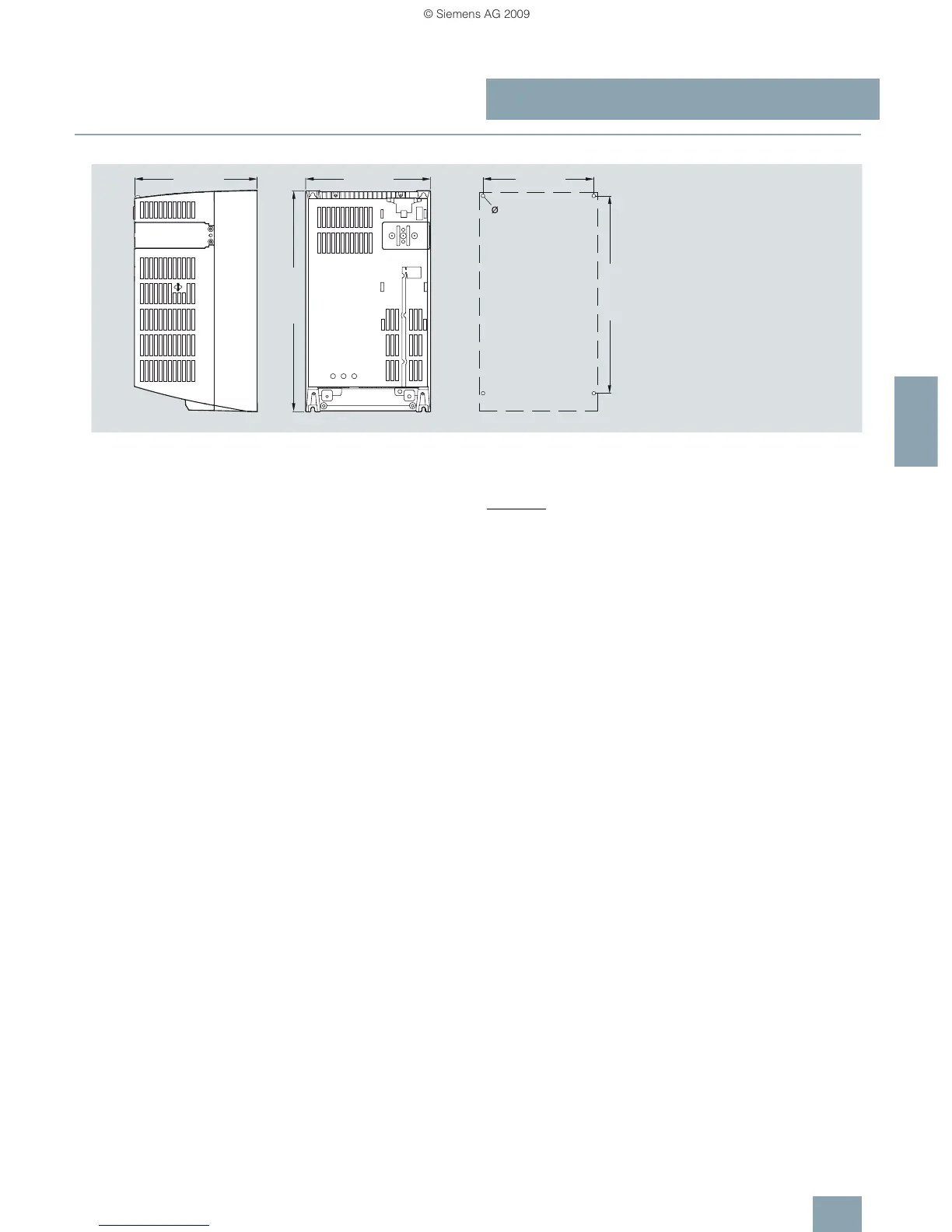

Dimensional drawings
PM240 Power Module frame size FSC
Mounted with 4 M5 studs, 4 M5 nuts, 4 M5 washers.
Ventilation clearance required at top and bottom: 100 mm
(3.94 inches).
Ventilation clearance required at sides:
• Ambient temperature ≤ 40 °C: 0 mm (0 inches).
• Ambient temperature > 40 °C: 50 mm (1.97 inches).
When the Control Unit is plugged on, the mounting depth
increases by 65 mm (2.56 inches).
Exception
: for CU240E, mounting depth +31 mm
(+1.22 inches).
All dimensions in mm (values in brackets are in inches).
Drill pattern
G_D011_EN_0093
185 (7.28) 167 (6.57)
323 (12.72)
189 (7.44)
334 (13.15)
5.5 (0.22)
