SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
PM240 Power Modules –
0.37 kW to 250 kW (0.5 hp to 400 hp)
4/44
Siemens D 11.1 · 2009
4
■

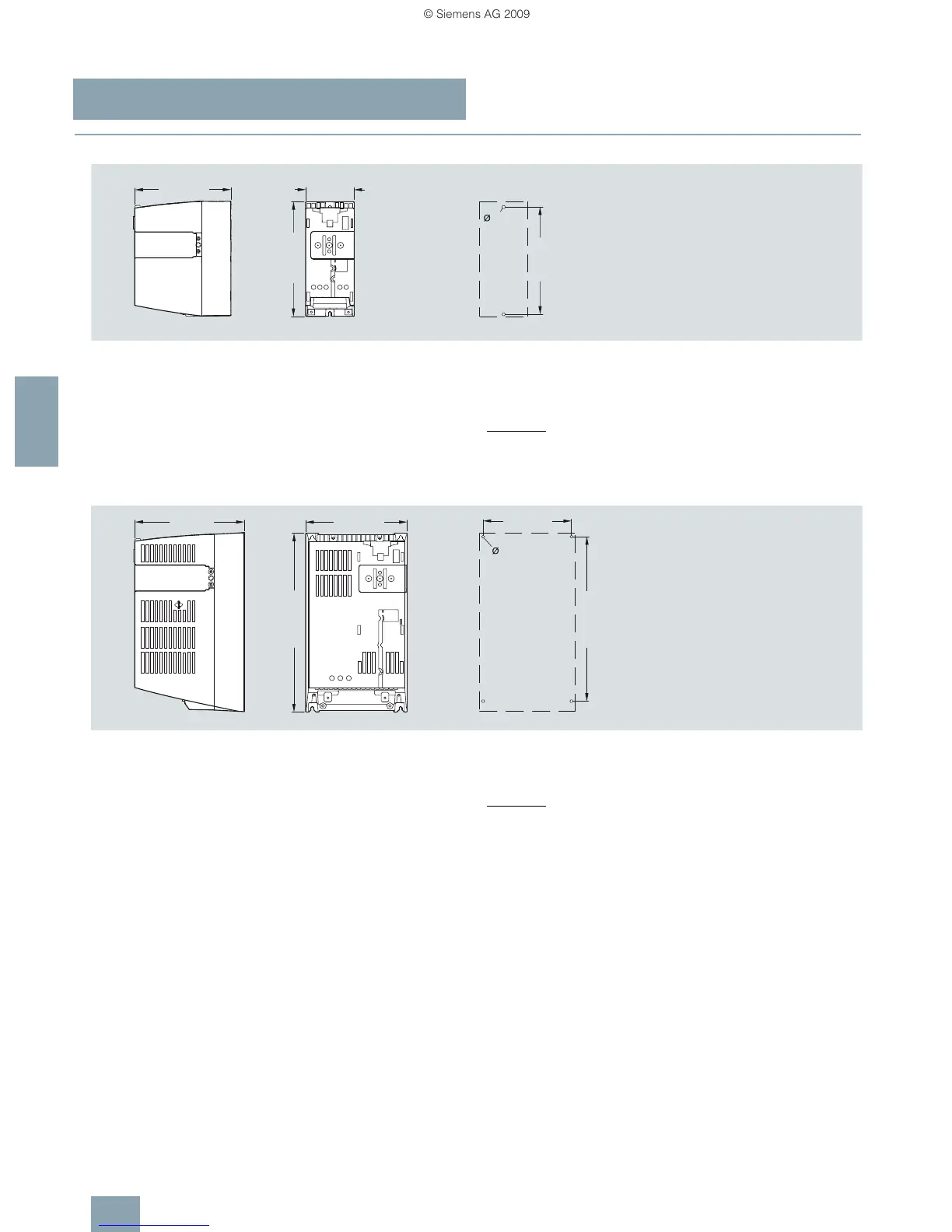

Dimensional drawings
PM240 Power Module frame size FSA
Mounted with 2 M4 studs, 2 M4 nuts, 2 M4 washers.
Ventilation clearance required at top and bottom: 100 mm
(3.94 inches).
Ventilation clearance required at sides:
• Ambient temperature ≤ 40 °C: 0 mm (0 inches).
• Ambient temperature > 40 °C: 30 mm (1.18 inches).
When the Control Unit is plugged on, the mounting depth
increases by 65 mm (2.56 inches) and the total height by 14 mm
(0.55 inches).
Exception
: for CU240E, mounting depth +31 mm
(+1.22 inches), total height +32 mm (+1.26 inches).
All dimensions in mm (values in brackets are in inches).
PM240 Power Module frame size FSB
Mounted with 4 M4 studs, 4 M4 nuts, 4 M4 washers.
Ventilation clearance required at top and bottom: 100 mm
(3.94 inches).
Ventilation clearance required at sides:
• Ambient temperature ≤ 40 °C: 0 mm (0 inches).
• Ambient temperature > 40 °C: 40 mm (1.57 inches).
When the Control Unit is plugged on, the mounting depth
increases by 65 mm (2.56 inches).
Exception
: for CU240E, mounting depth +31 mm
(+1.22 inches).
All dimensions in mm (values in brackets are in inches).
Drill
pattern
G_D011_EN_00091
4.5
(0.18)
145 (5.71) 73 (2.87)
173 (6.81)
160 (6.3)
Drill pattern
G_D011_EN_00092
133 (5.24)
4.8 (0.19)
165 (6.5) 153 (6.02)
270 (10.63)
258 (10.16)
