SINAMICS G120 - Page 53

SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
PM250 Power Modules –
7.5 kW to 75 kW (10 hp to 100 hp)
4/53
Siemens D 11.1 · 2009
4
■ Integration
Power and DC link components which are optionally avail-
able depending on the Power Module used
The following line-side power components, DC link components
and load-side power components are optionally available in the
appropriate frames sizes for the Power Modules:
U = Base component
S = Lateral mounting
I = Integrated
– = Not possible
F = Power Modules available with and without integrated class A filter
Available as base components
Many system components for PM250 Power Modules are de-
signed as base components, that is, the component is mounted
on the baseplate and the PM250 Power Module above it in a
space-saving design. Up to two base components can be
mounted above one another.

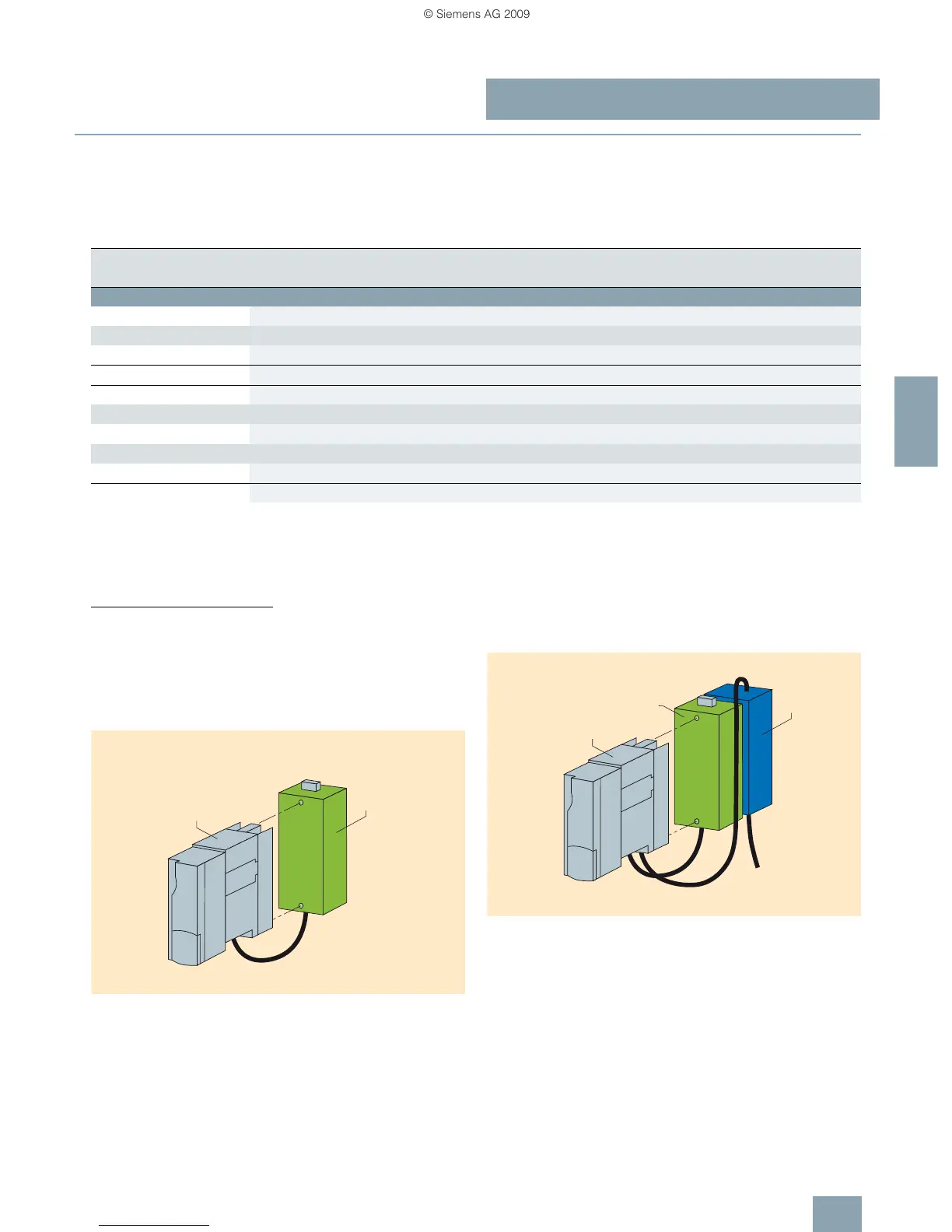

The following diagram shows the basic layout of a PM250 Power
Module with additional class B line filter as base component:
Basic layout of a PM250 Power Module with class B line filter as base
component
The following example shows the structure for two base compo-
nents:
Basic layout of a PM250 Power Module with class B line filter as base
component and output reactor
Frame size
FSA FSB FSC FSD FSE FSF FSGX
PM250 Power Module with line-commutated energy recovery
Available frame sizes – – ✓ ✓ ✓ ✓ –
Line-side power components
Line filter, class A – – I F F F –
Line filter, class B – – U – – – –
Line reactor
1)
– – –
1)
–
1)
–
1)
–
1)
–
DC link components
Braking resistor
2)
– – –
2)
–
2)
–
2)
–
2)
–
Load-side power components
Output reactor – – U S S S –
Sine-wave filter – – U S S S –
Power supply
G_D211_EN_00107a
Line
filter
Power
module
Power
supply
G_D211_EN_00108a
Output
reactor
Power
module
Line
filter
to the motor
1)
A line reactor is not required and must not be used in conjunction with a
PM250 or PM260 Power Module.
2)
Line-commutated energy recovery is possible in conjunction with a PM250
or PM260 Power Module. A braking resistor cannot be connected and is
not necessary.
© Siemens AG 2009
