SINAMICS G120
Standard inverters 0.37 kW to 250 kW (0.5 hp to 400 hp)
PM250 Power Modules –
7.5 kW to 75 kW (10 hp to 100 hp)
4/59
Siemens D 11.1 · 2009
4
■

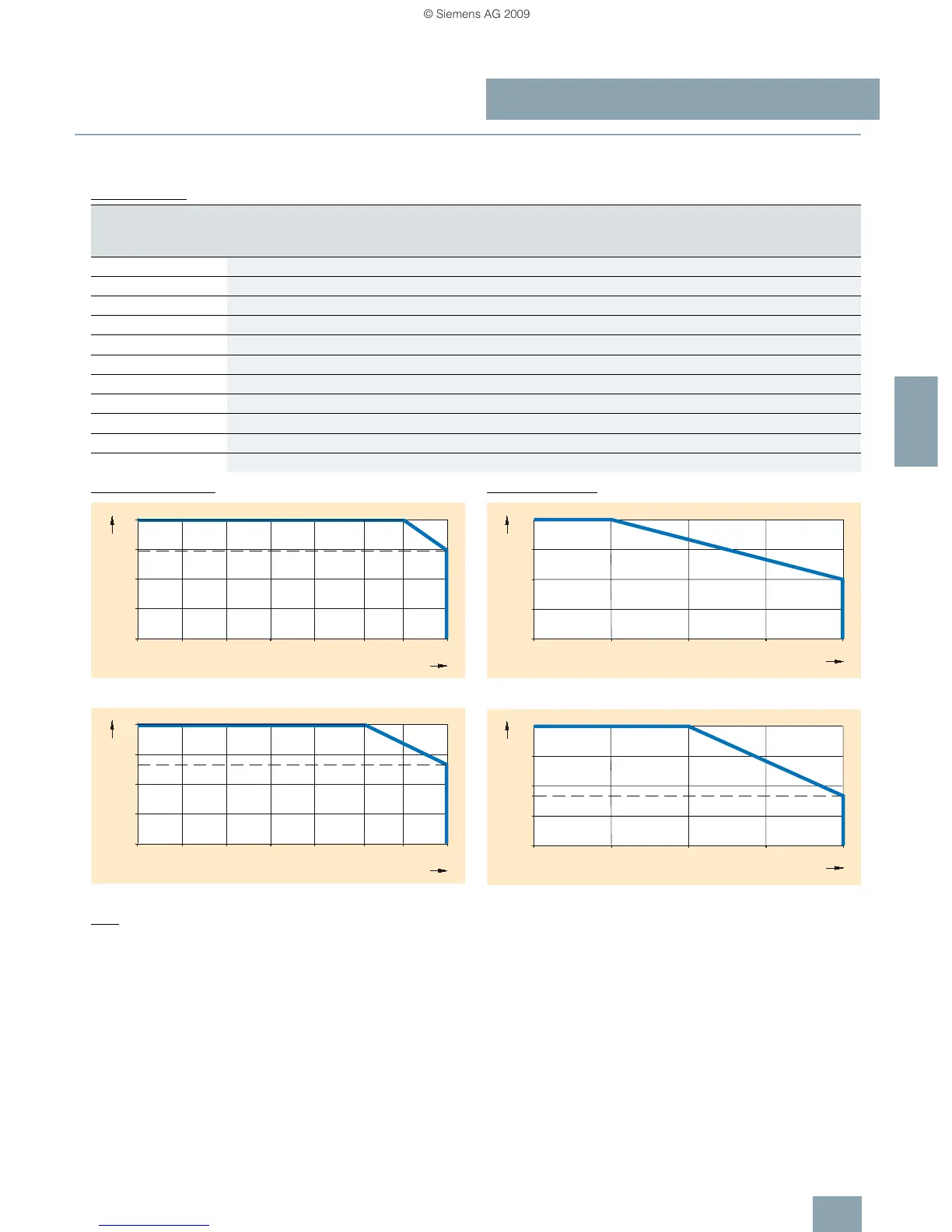

Characteristic curves
Derating data
Pulse frequency
Ambient temperature
High overload (HO)
Light overload (LO)
Note: The operating temperature ranges of the Control Units
should be taken into account. The temperature ranges are spe-
cified in the technical specifications under Control Units.
Installation altitude
Rated power at
400V3AC
Rated output current in A
at a pulse frequency of
kW hp 4kHz 6kHz 8kHz 10 kHz 12 kHz 14 kHz 16 kHz
7.5 10 18 12.5 11.9 10.6 9.2 7.9 6.6
11.0 15 25 18.1 17.1 15.2 13.3 11.4 9.5
15.0 20 32 24.7 23.4 20.8 18.2 15.6 13
18.5 25 38 32 27 23 19 17 15
22.0 30 45 38 32 27 23 20 18
30.0 40 60 51 42 36 30 27 24
37.0 50 75 64 53 45 38 34 30
45.0 60 90 77 63 54 45 41 36
55.0
75 110 94 77 – – – –
75.0
100 145 123 102 – – – –
90.0 125 178 151 125 – – – –
0 20 30 10 40
