Operating Procedures / Photos
Terminal Clasp
Water Tray

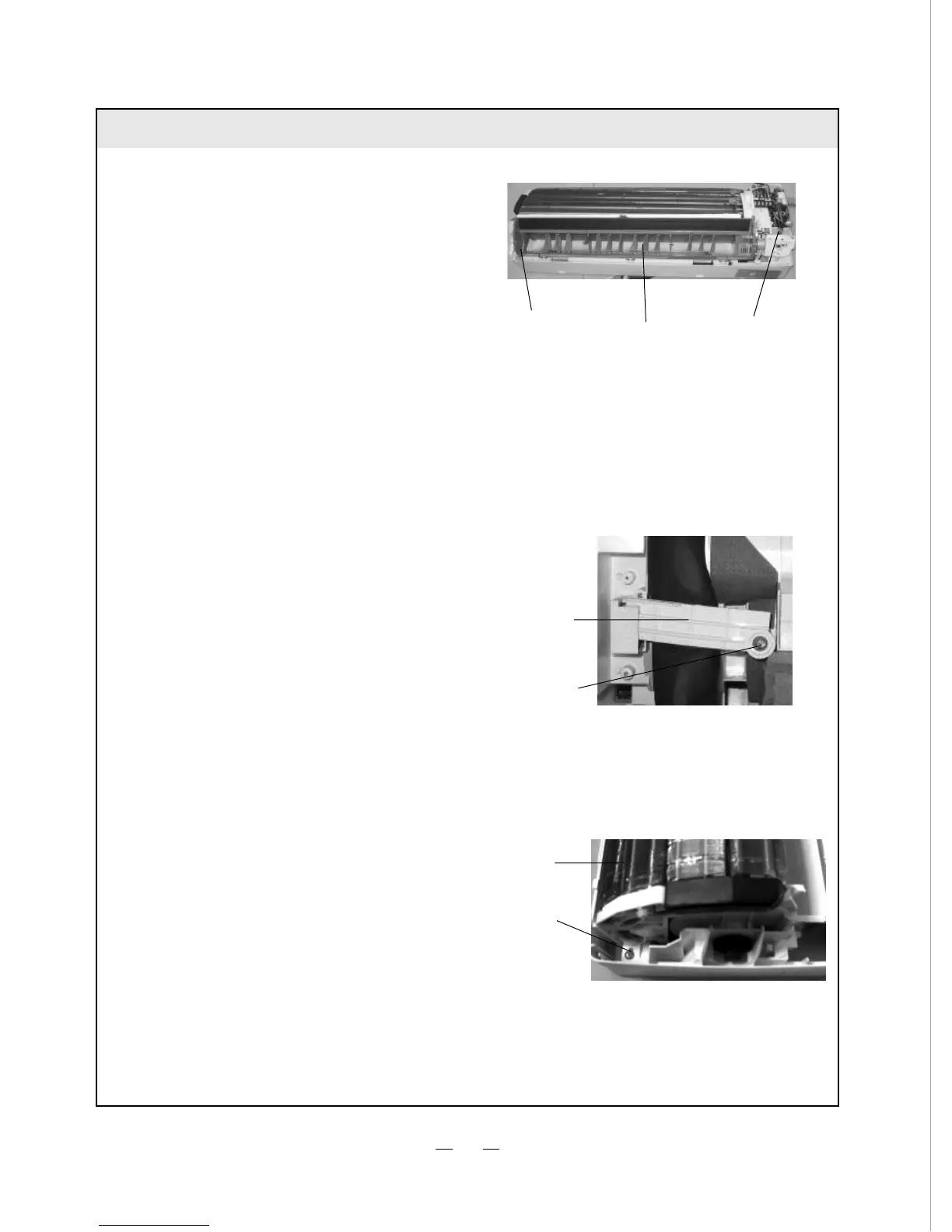

Pull open the holding clasp on the left side of the
water tray, disconnect the terminal of the stepping
motor, lift and pull out the drainage pipe, and
remove the water tray.
Disassemble Water Tray
Unscrew the screw to remove the rear pipe clamp.
Remove the left and right screws at the evaporator,
manually move the evaporator to loosen the clasp of its
side plate from the groove. Carefully take out the evaporator
and pay attention to protect the connecting pipe.
8.Disassemble Evaporator
Rear pipe
clamp
Screw
Evaporator
Screw
７．
37
