Operating Procedures / Photos
Evaporator
Screw
Motor Clamp
Screw

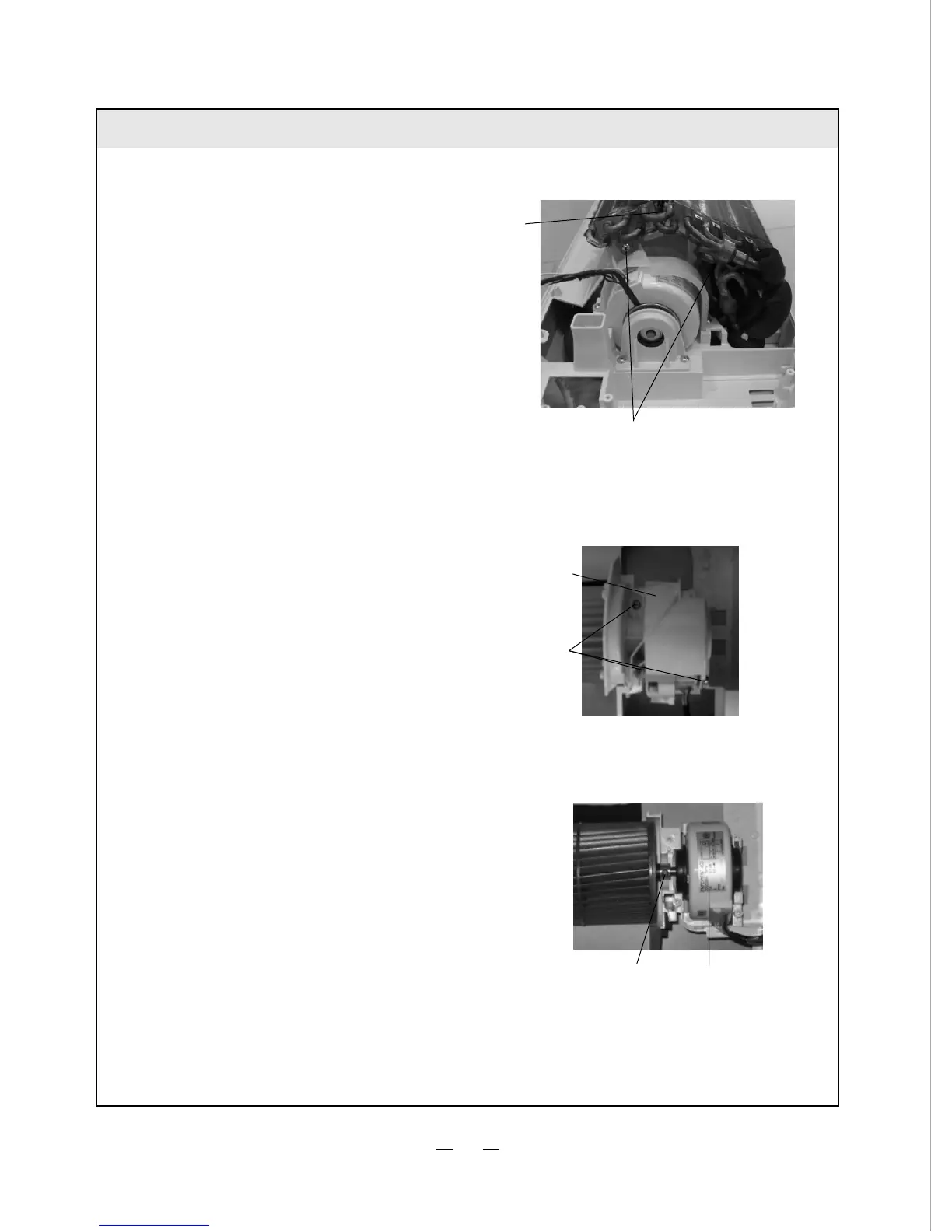

Unscrew the three screws fixing the motor clamp,
and remove the motor clamp.
Loosen the holding nut at the shaft sleeve on the
right side of the cross flow fan. Slightly lift and then
pull out the motor.
9.Disassemble Motor
Holding Screw Motor
38
