Unscrew the screws fixing the panel and turn right
the front panel to remove it.
Unscrew the 2 screws fixing electric box ,and then
unscrew the 5 screws fixing the right side plate to
remove it.
Operating Procedures / Photos
Unscrew the screw fixing the handle,and then
remove it upwards to take it out.
Unscrew the 2 screws fixing left side of top cover
and the 1 screw fixing the right side to remove the
top cover.
Right Side Plate
Handle
Screws
Screws
Top Cover

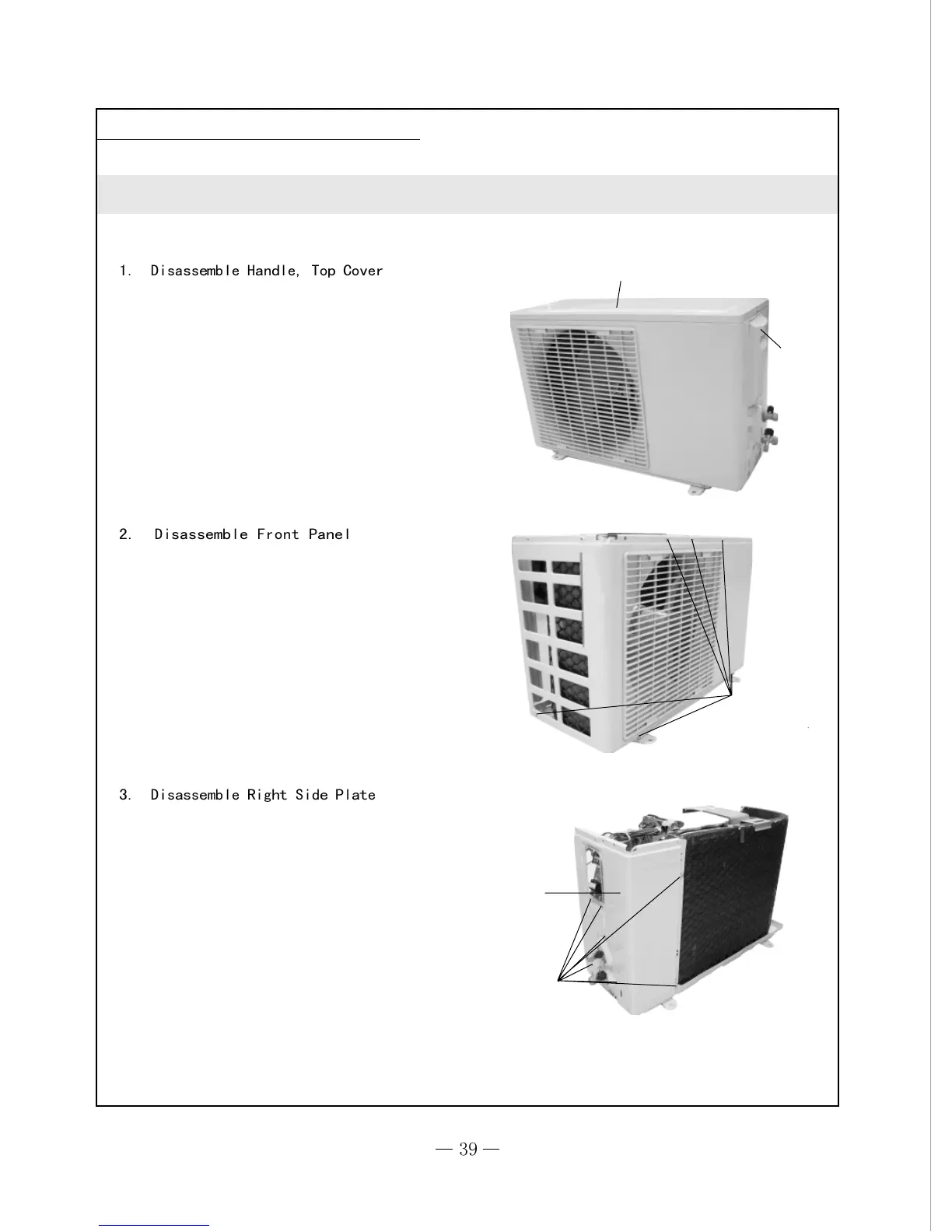

Operation procedures/pictures for outdoor uni(for 12K)
