Operating Procedures / Photos

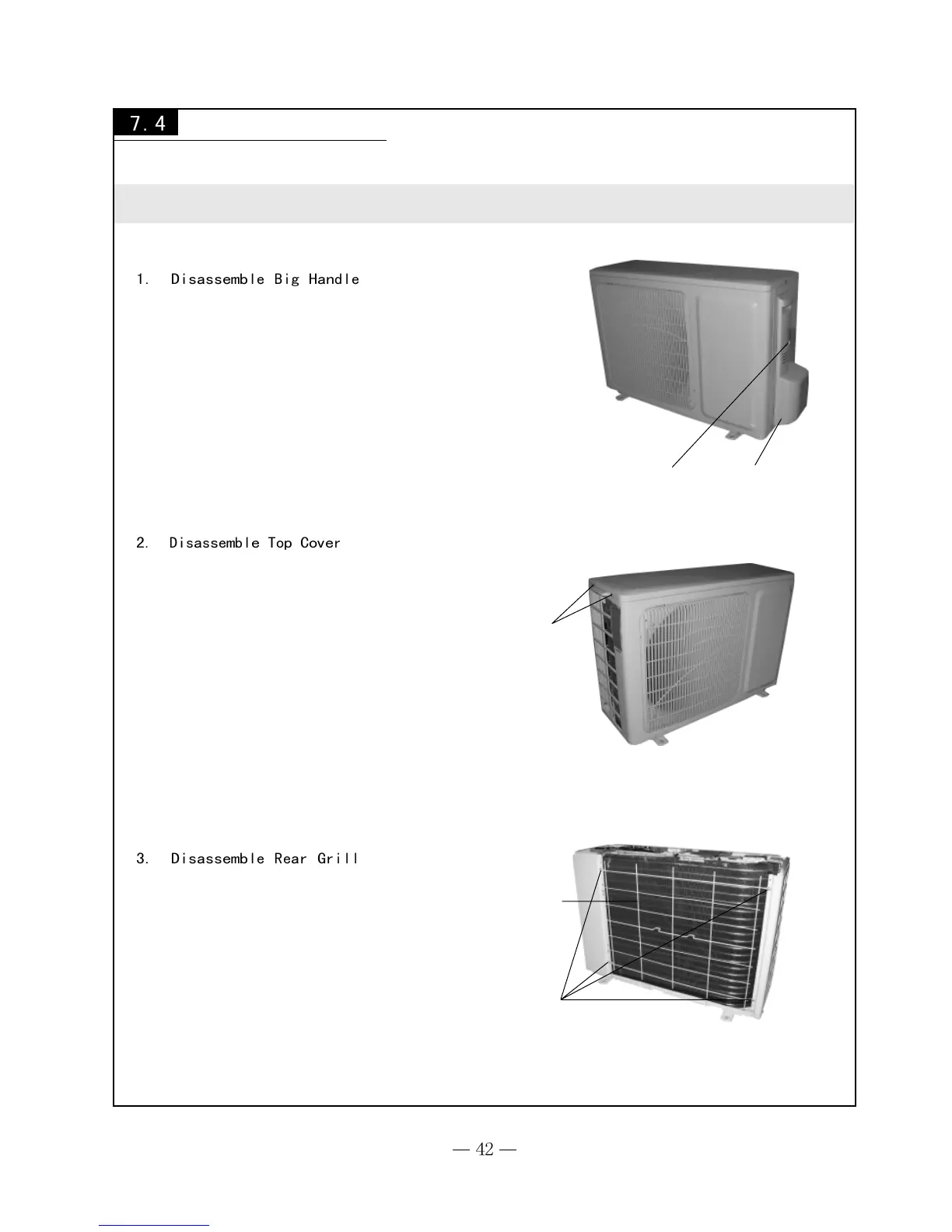

Unscrew the screw fixing the big handle,and then
remove it downwards to take it out.
Screw
Unscrew the 2 screws fixing left side of top cover
and the 1 screw fixing the right side to remove the
top cover.
Unscrew the 4 screws fixing the rear grill to re-
move it.
Rear Grill
Big Handle
Screws
Screws
Operation procedures/pictures for outdoor uni(for 12K)
