Operating Procedures / Photos

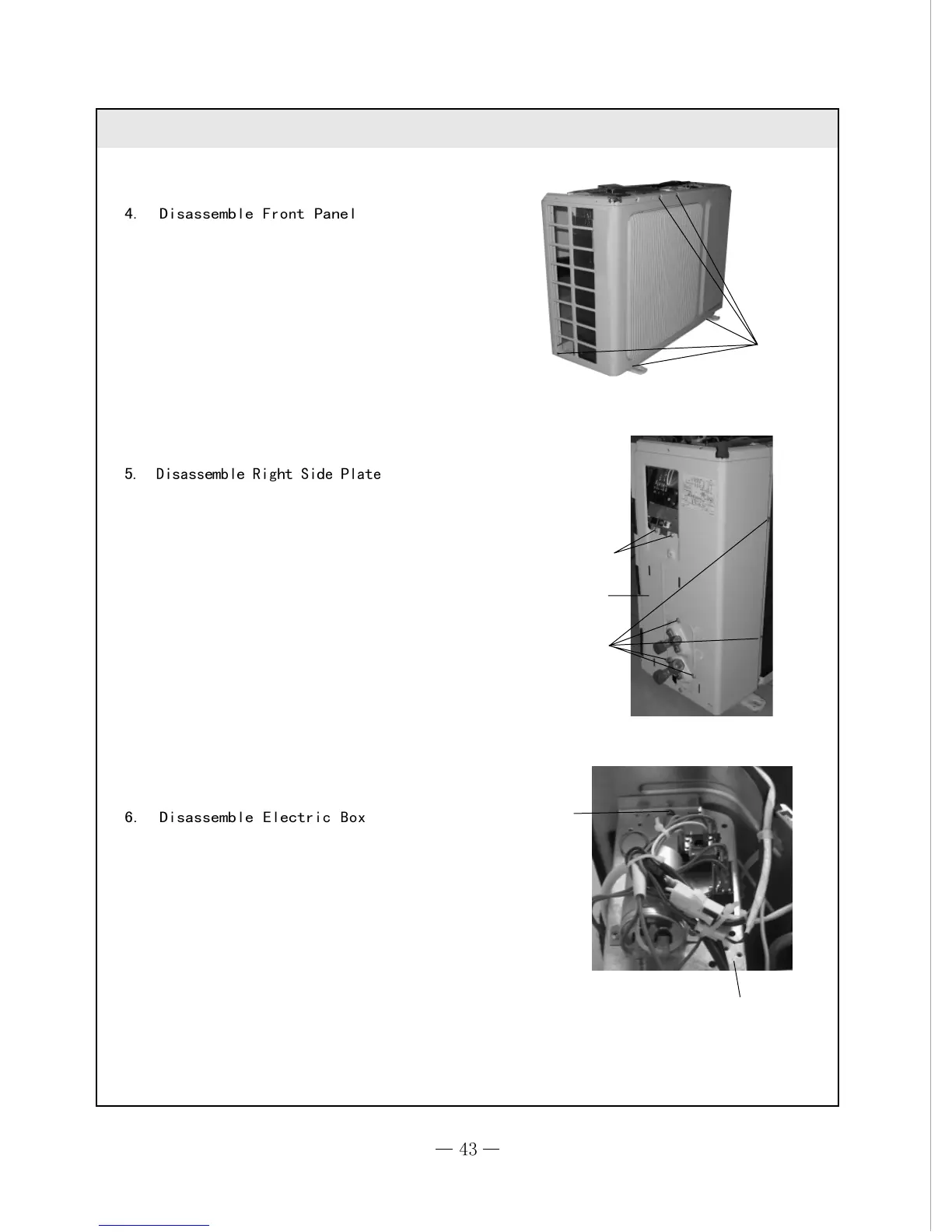

Unscrew the 5 screws fixing the panel and
dextrorotate the front panel to pull it out from
groove.
Unscrew the 2 screws fixing electric box ,and then
unscrew the 5 screws fixing the right side plate to
remove it.
Right Side Plate
Screws
Unscrew the screws fixing the electric box, and
then pull out the inset block of lead-out wire of
compressor and fan motor to take out the electric
box.
Screws
Screws
Screw
Electric Box
To Next Page
