Sine Systems RFC-1/B Instruction Book

■e

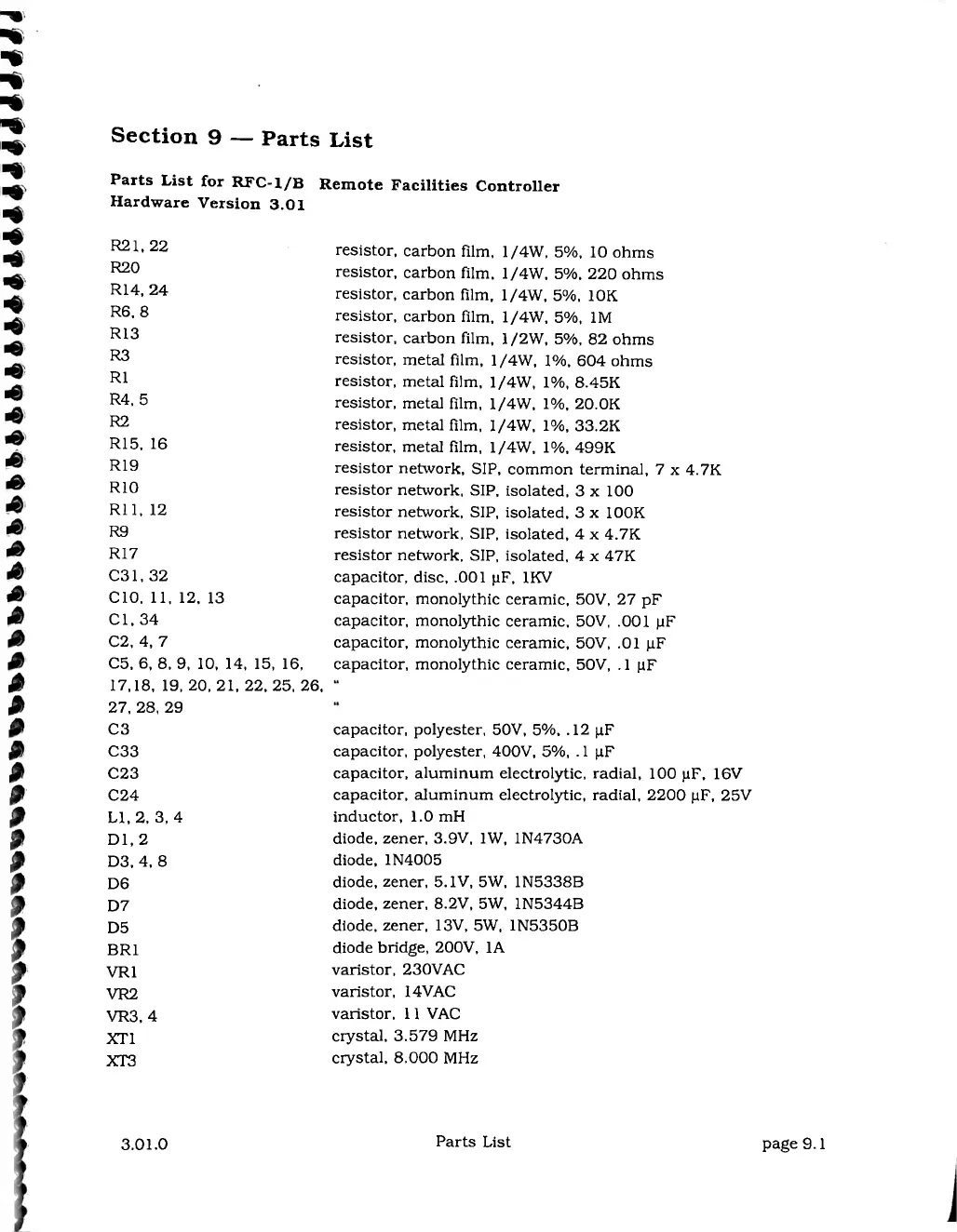

Section 9 — Parts List
Parts List for RFC-l/B Remote Facilities Controller
Hardware Version 3.01
R21, 22
R20
R14, 24
R6, 8
R13
R3
R1
R4, 5
R2
R15, 16
R19
RIO
Rll, 12
R9
R17
C31, 32
CIO, 11, 12, 13
Cl, 34
C2, 4, 7
C5, 6, 8, 9, 10, 14, 15, 16,
17,18, 19, 20, 21, 22, 25, 26,
resistor, carbon film, 1/4W, 5%, 10 ohms
resistor, carbon film, 1/4W, 5%, 220 ohms
resistor, carbon film, 1/4W, 5%, 10K
resistor, carbon film, 1/4W, 5%, IM
resistor, carbon film, 1/2W, 5%, 82 ohms
resistor, metal film, 1/4W, 1%, 604 ohms
resistor, metal film, 1/4W, 1%, 8.45K
resistor, metal film, 1/4W, 1%, 20.0K
resistor, metal film, 1/4W, 1%, 33. 2K
resistor, metal film, 1/4W, 1%, 499K
resistor network, SIP, common terminal, 7 x 4.7K
resistor network, SIP, isolated, 3 x 100
resistor network, SIP, isolated, 3 x 100K
resistor network, SIP, isolated, 4 x 4.7K
resistor network, SIP, isolated, 4 x 47K
capacitor, disc, .001 pF, 1KV
capacitor, monolythic ceramic, 50V, 27 pF
capacitor, monolythic ceramic, 50V, .001 pF
capacitor, monolythic ceramic, 50V, .01 pF
capacitor, monolythic ceramic, 50V, . 1 pF
27, 28, 29
C3 capacitor, polyester, 50V, 5%, .12 pF
C33
capacitor, polyester, 400V, 5%, . 1 pF
C23 capacitor, aluminum electrolytic, radial, 100 pF, 16V
C24
capacitor, aluminum electrolytic, radial, 2200 pF, 25V
LI, 2, 3, 4
inductor, 1.0 mH
DI, 2
diode, zener, 3.9V, 1W, 1N4730A
D3, 4, 8
diode, 1N4005
D6
diode, zener, 5.1V, 5W. 1N5338B
D7
diode, zener, 8.2V, 5W, 1N5344B
D5
diode, zener, 13V, 5W, 1N5350B
BRI
diode bridge, 200V, 1A
VR1
varistor, 230VAC
VR2
varistor, 14VAC
VR3, 4
varistor, 11 VAC
XT1
crystal, 3.579 MHz
XT3
crystal, 8.000 MHz
3.01.0
Parts List
page 9.1
