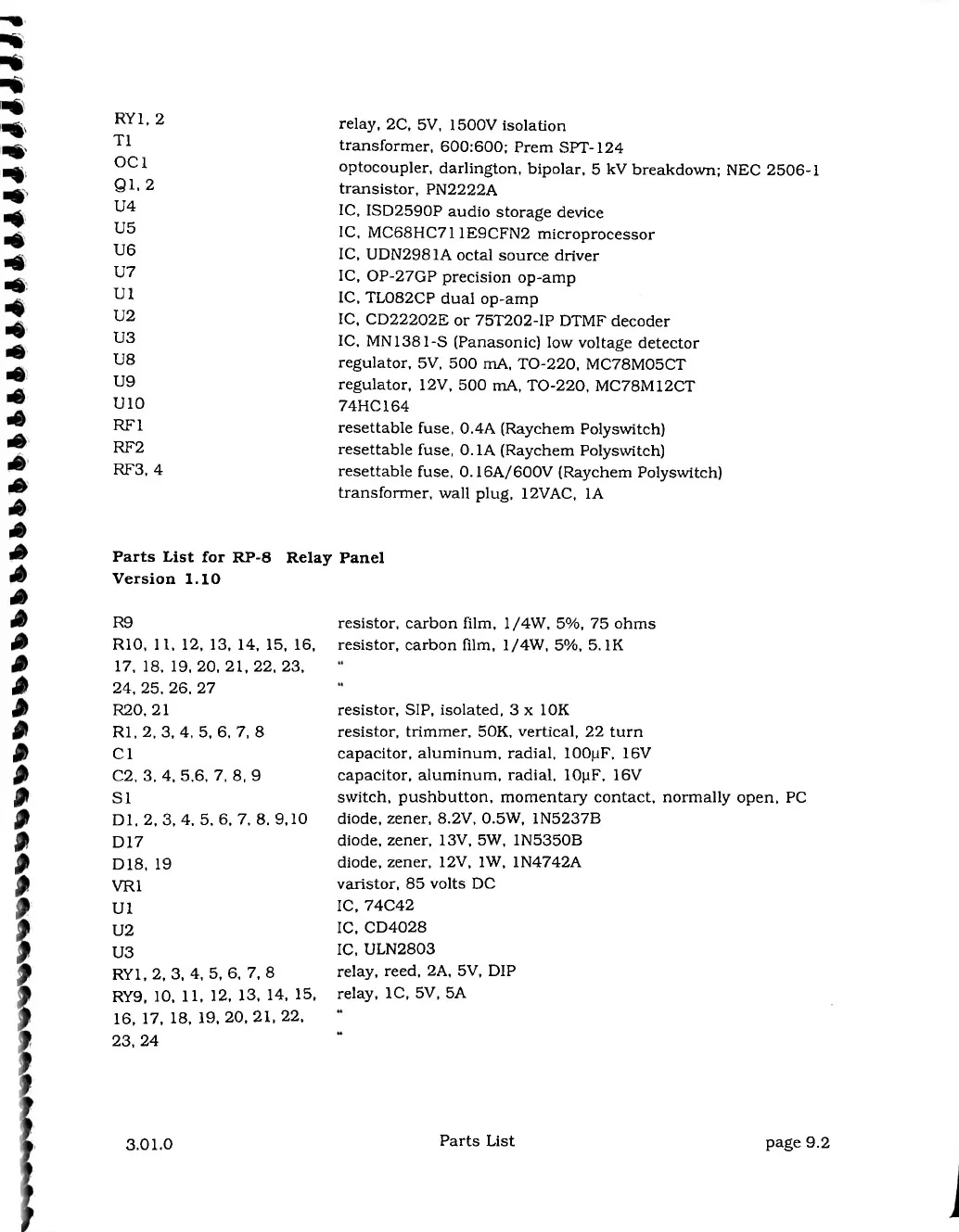

Sine Systems RFC-1/B Instruction Book

Parts List for RP-8 Relay Panel
Version 1.10
RY1, 2
T1
OC1
QI. 2
U4
U5
U6
U7
U1
U2
U3
U8
U9
U10
RF1
RF2
RF3, 4
relay, 2C, 5V, 1500V isolation
transformer, 600:600; Prem SPT-124
optocoupler, darlington, bipolar, 5 kV breakdown; NEC 2506-1
transistor, PN2222A
IC, ISD2590P audio storage device
IC, MC68HC711E9CFN2 microprocessor
IC, UDN2981A octal source driver
IC, OP-27GP precision op-amp
IC, TL082CP dual op-amp
IC, CD22202E or 75T202-IP DTMF decoder
IC, MN1381-S (Panasonic) low voltage detector
regulator, 5V, 500 mA, TO-220, MC78M05CT
regulator, 12V, 500 mA, TO-220, MC78M12CT
74HC164
resettable fuse, 0.4A (Raychem Poly switch)
resettable fuse, 0. 1A (Raychem Polyswitch)
resettable fuse, 0. 16A/600V (Raychem Polyswitch)
transformer, wall plug, 12VAC, 1A
R9
RIO, 11. 12. 13, 14, 15, 16,
17,
18, 19, 20, 21, 22, 23,
24, 25. 26, 27
R20, 21
Rl, 2, 3, 4, 5, 6, 7, 8
Cl
C2, 3, 4, 5,6, 7. 8, 9
SI
DI, 2, 3, 4, 5. 6, 7, 8, 9,10
D17
D18, 19
VR1
U1
U2
U3
RY1, 2, 3, 4, 5, 6, 7, 8
RY9, 10, 11, 12, 13, 14, 15,
16, 17, 18, 19, 20, 21, 22,
23,
24
resistor, carbon film, 1/4W, 5%, 75 ohms
resistor, carbon film, 1/4W, 5%, 5. IK
resistor, SIP, isolated, 3 x 10K
resistor, trimmer, 50K, vertical, 22 turn
capacitor, aluminum, radial, lOOpF, 16V
capacitor, aluminum, radial, lOpF, 16V
switch, pushbutton, momentary contact, normally open. PC
diode, zener, 8.2V, 0.5W, 1N5237B
diode, zener, 13V, 5W, 1N5350B
diode, zener, 12V, 1W, 1N4742A
varistor. 85 volts DC
IC, 74C42
IC, CD4028
IC, ULN2803
relay, reed, 2A, 5V, DIP
relay, IC, 5V, 5A
3.01.0
Parts List
page 9.2
