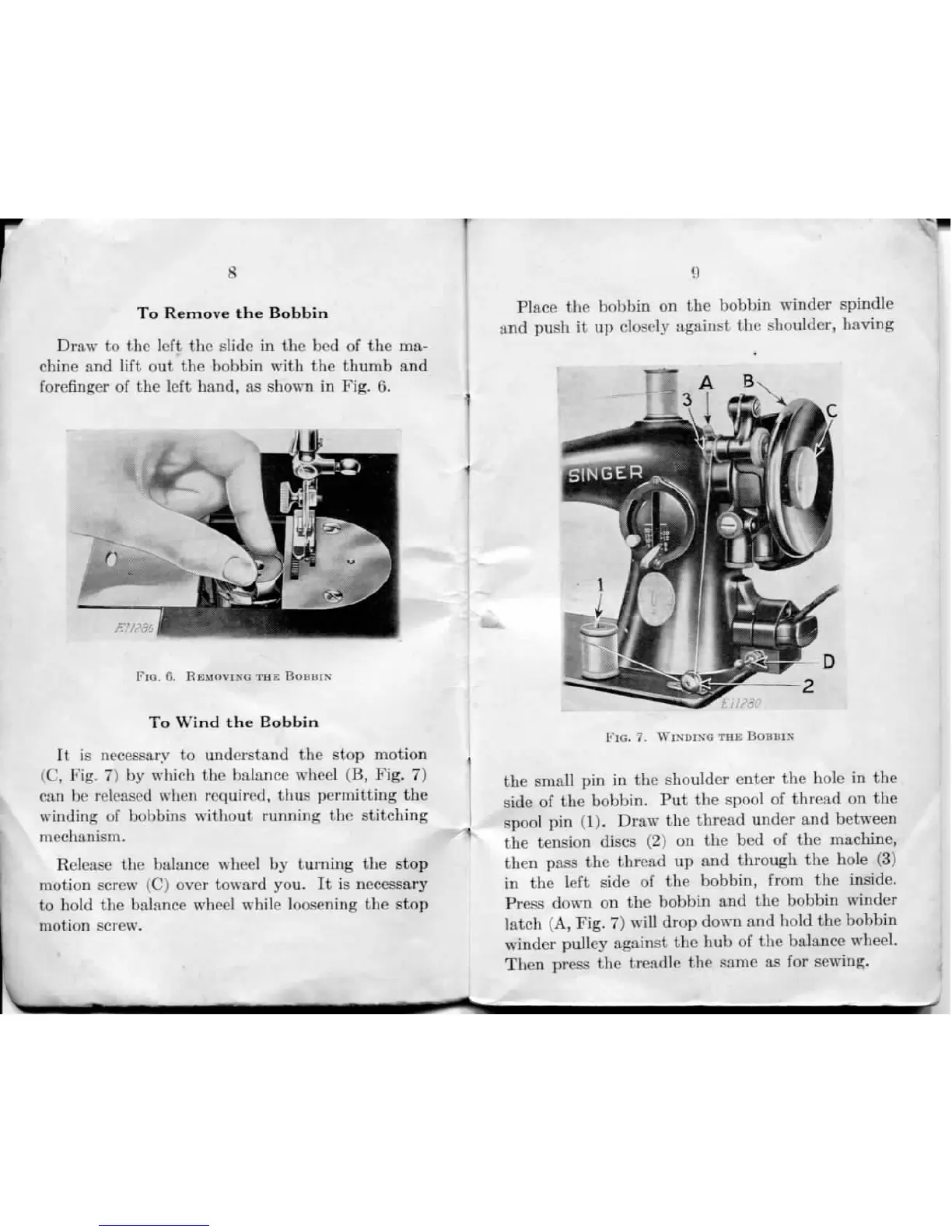

r
To
Remove
the
Bobbin
Draw
to the
left
the
slide
in the bed of the ma-
chine
and
lift
out the
bobbin with
the
thumb
and
forefinger
of the
left
hand,
as
shown
in
Fig.
6.
FIG.
C>.
HEMOVIXG
THE
ROBBI\o
Wind
the
Bobbin
It is
necessary
to
understand
the
stop
motion
(C,
Fig.
7} by
which
the
balance wheel
(B,
Fig.
7)
can be
released
when
required,
thus permitting
the
winding
of
bobbins without running
the
stitching
mechanism.
Release
the
balance wheel
by
turning
the
stop
motion
screw
(C)
over toward you.
It
is
necessary
to
hold
the
balance
wheel
while
loosening
the
stop
motion
screw.
"
9
Place
the
bobbin
on the
bobbin winder spindle
und
push
it up
closely against
the
shoulder,
having
FIG.
7.
WINDING
THE
BOBBIN
the
small
pin in the
shoulder
enter
the
hole
in the
side
of the
bobbin.
Put the
spool
of
thread
on the
spool
pin
(1).
Draw
the
thread
under
and
between
the
tension
discs
(2) on the bed of the
machine,
then
pass
the
thread
up and
through
the
hole
(3)
in
the
left side
of the
bobbin,
from
the
inside.
Press
down
on the
bobbin
and the
bobbin winder
latch
(A,
Fig.
7)
will
drop down
and
hold
the
bobbin
winder
pulley
against
the
hub of the
balance wheel.
Then
press
the
treadle
the
same
as for
sewing.
