10
The end of the thread must be held by the hand
until a few coils are wound and should then be
broken off. When sufficient thread has been wound
upon the bobbin, the bobbin winder is automatically
released from the balance wheel.

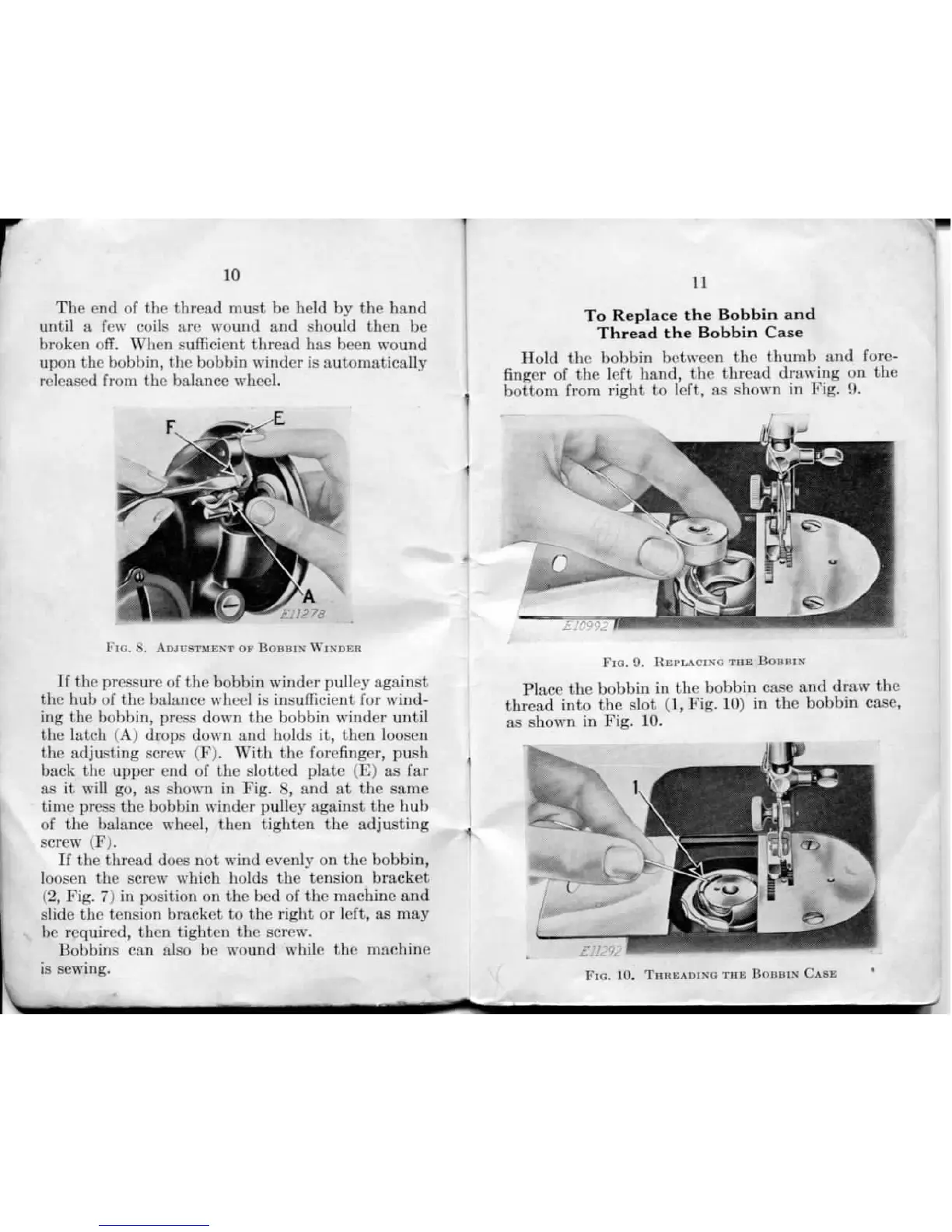

FIG. 8. ADJUSTMENT OF BOBBIN WINDER
If the pressure of the bobbin winder pulley against
the hub of the balance wheel is insufficient for wind-
ing the bobbin, press down the bobbin winder until
the latch (A) drops down and holds it, then loosen
the adjusting screw (F). With the forefinger, push
back the upper end of the slotted plate (E) as far
as it will go, as shown in Fig. 8, and at the same
time press the bobbin winder pulley against the hub
of the balance wheel, then tighten the adjusting
screw (Fj.
If the thread does not wind evenly on the- bobbin,
loosen the screw which holds the tension bracket
(2, Fig. 7) in position on the bed of the machine and
slide the tension bracket to the right or left, as may
he required, then tighten the screw.
Bobbins can also be wound while the machine
is sewing.
•
11
To Replace the Bobbin and
Thread the Bobbin Case
Hold the bobbin between the thumb and fore-
finger of the left hand, the thread drawing on the
bottom from right to left, as shown in Fig. <).
120932
FIG. 0. REPLACING THE BOHHIN
Place the bobbin in the bobbin case and draw the
thread into the slot (1, Fig. 10) in the bobbin case,
as shown in Fig. 10.
£1129^ I
Fin. 10. THREADING THE BOBBIN CASE
