F
L2

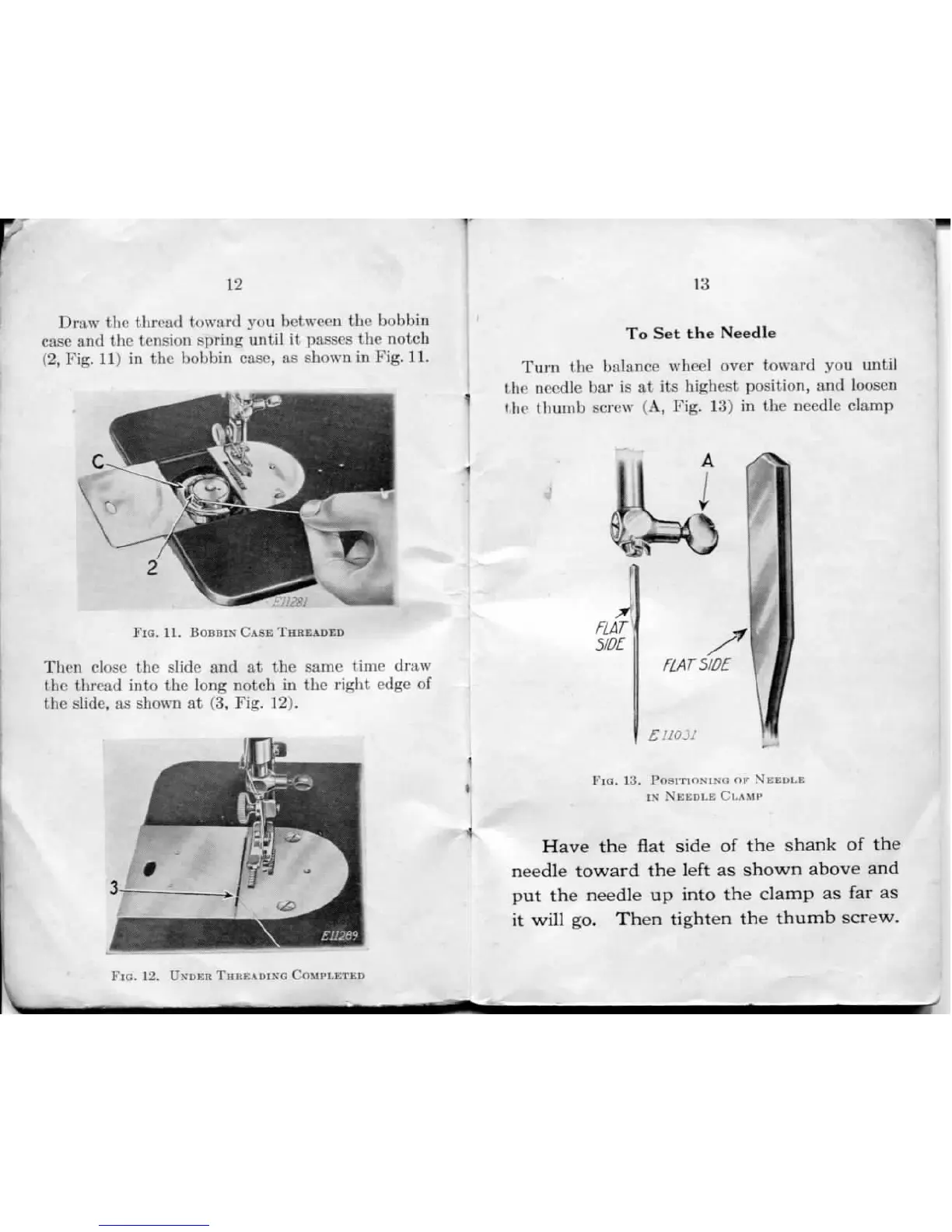

Draw the thread toward you between the bobbin
case and the tension spring until it passes the notch
(2, Fig. 11) in the bobbin case, as shown in Fig. 11.
13
To Set the Needle
Turn the balance wheel over toward you until
the needle bar is at its highest position, and loosen
the thumb screw (A, Fig. 13) in the needle clamp
FIG. 11. BOBBIN CASE THREADED
Then close the slide and at the same time draw
the thread into the long notch in the right edge of
the slide, as shown at (3, Fig. 12).
FLAT
SIDE
FIG. 13. POSITIONING or N
IN NUKDLE CLAMP
Have the flat side of the shank of the
needle toward the left as shown above and
put the needle up into the clamp as far as
it will go. Then tighten the thumb screw.
FIG. 12. UNDER THREADING
