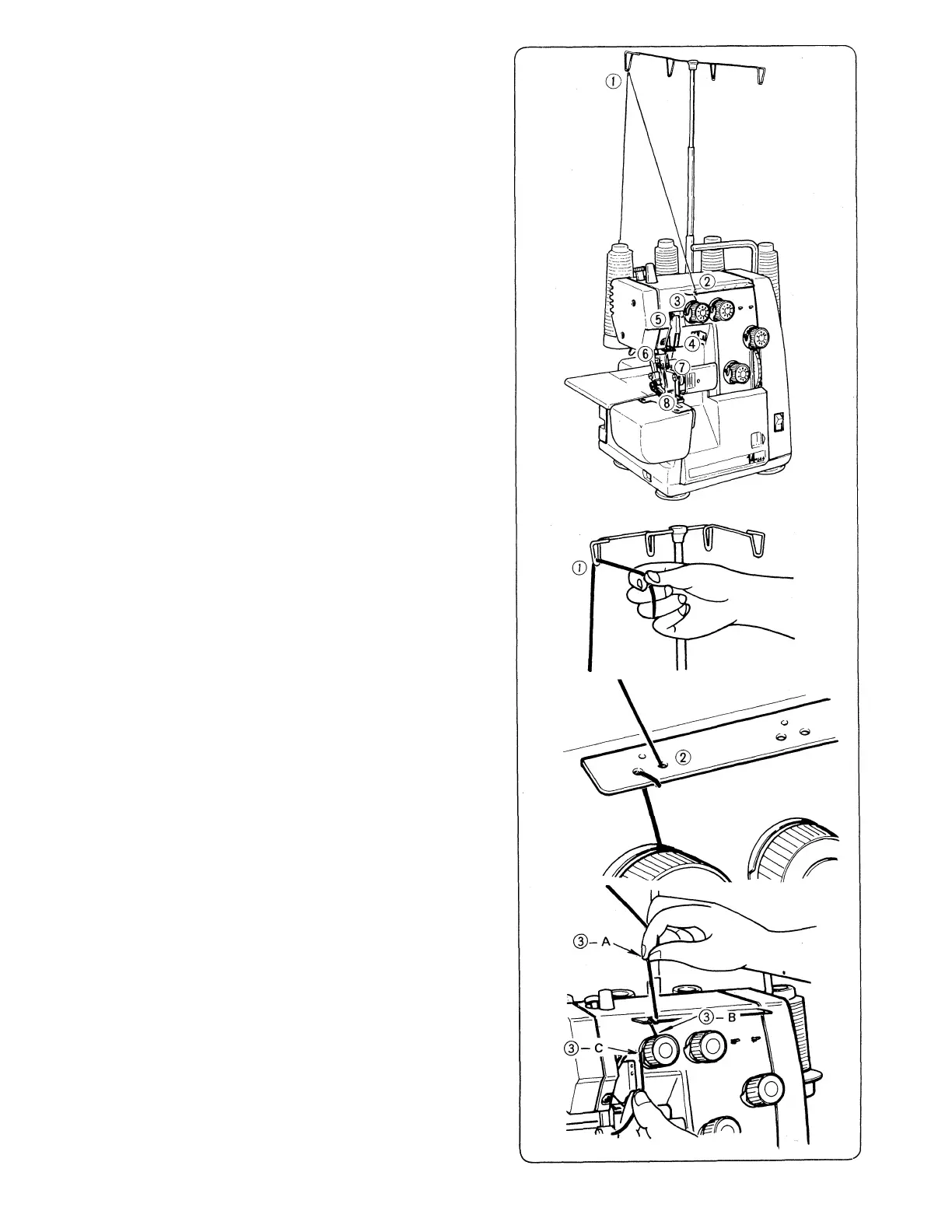

(3) Threading the Left Needle (Blue)
* Thread the left needle as indicated ®
* Pass thread from back to the front through the
thread guide ®.
* Insert thread down through the right hole.
* Bring thread up and insert through top of left hole
* Hold the thread above tension disc to stabilize
it (|)-A.
* Pass the thread between the tension discs (3)—B.
* Pull thread up and over the top of the metal finger
@-C.
* Pull thread down to make certain it is properly
threaded between the tension discs.
14
