Singer 1409 - Winding the Bobbin

Winding the Bobbin

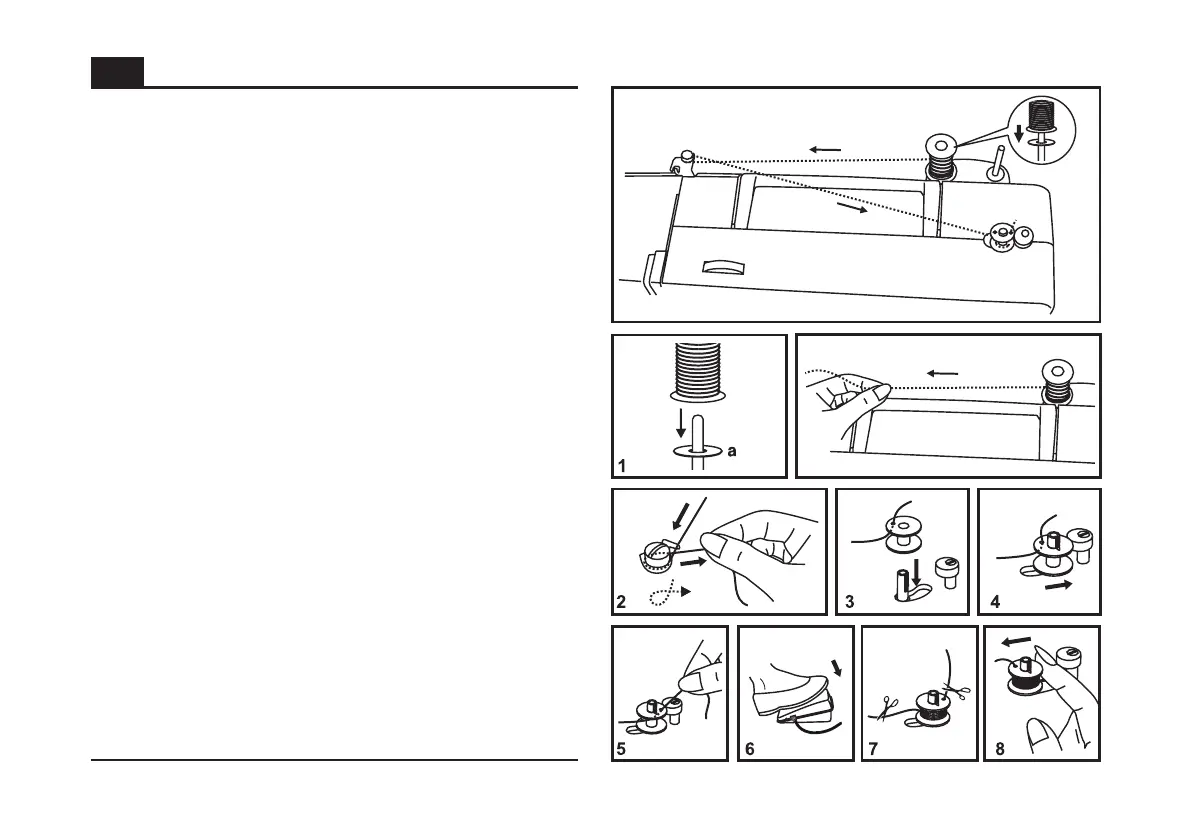

- Place the thread and Spool pin felt (a) onto the spool pin. (1)
- Wind thread clockwise around bobbin winder tension discs.
(2)
- Thread bobbin as illustrated and place on spindle. (3)
- Push bobbin spindle to right. (4)
- Hold thread end. (5)
- Step on foot control pedal. (6)
- Cut thread. (7)
- Push bobbin spindle to left (8) and remove.
When the bobbin winder spindle is in "bobbin winding"
position, the machine will not sew and the hand wheel will
not turn. To start sewing, push the bobbin winder spindle to
the left (sewing position).
Please Note:
