9
Release the balance wheel by turning the stop
motion screw (C) over toward you. It is necessary
to hold the balance wheel while loosening the stop
motion screw.

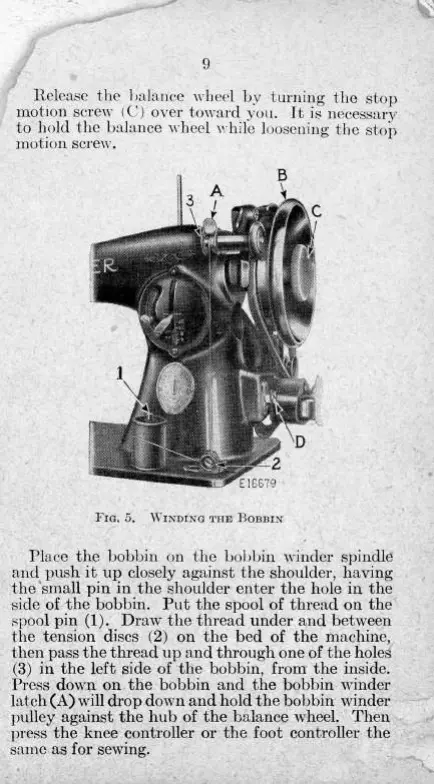

FIG. 5. WINDING THE BOBBIN
Place the bobbin on the bobbin winder spindle
and push it up closely against the shoulder, having
the 'small pin in the shoulder enter the hole in the
side of the bobbin. Put the spool of thread on the
spool pin (1). Draw the thread under and between
the tension discs (2) on the bed of the machine,
then pass the thread up and through one of the holes
(3) in the left side of the bobbin, from the inside.
Press down on the bobbin and the bobbin winder
latch (A) will drop down and hold the bobbin winder
pulley against the hub of the balance wheel. Then
press the knee controller or the foot controller the
same as for sewing.
9
Release the balance wheel by turning the
stop
motion screw (C) over toward you. It is necessary
to hold the balance wheel
while
loosening the
stop
motion screw.
FIG.
5. WINDING THE BOBBIN
Place the bobbin on the bol)bin wdnder spindle
and push it up closely
against
the shoulder, having
the small pin in the shoulder enter the hole in the
side
of the bobbin. Put the spool of thread on the
spool pin (1). Draw the thread under and between
the tension discs (2) on the bed of the machine,
then
pass
the thread up and through one of the holes
(3)
in the left
side
of the bobbin, from the inside.
Press down on the bobbin and the bobbin winder
latch
(A)
will
drop down and hold the bobbin winder
pulley
against
the hub of the balance wheel.
Then
press
the knee controller or the
foot
controller the
same
as for sewing.
