25
To Oil the Machine
To insure easy running, the machine requires
oiling and if used continuously it should be oiled

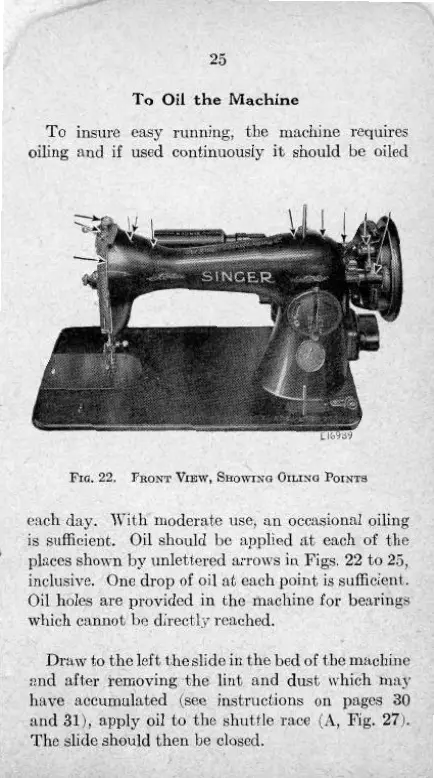

FIG.
22.
FRONT VIZTW, SHOWING OILING POINTS
each day. With moderate use, an occasional oiling
is sufficient. Oil should be applied at each of the
places shown by unlettered arrows in Figs. 22 to 25,
inclusive. One drop of oil at each point is sufficient.
Oil holes are provided in the machine for bearings
which cannot be directly reached.
Draw to the left the slide in the bed of the machine
and after removing the lint and dust which may
have accumulated (see instructions on pages 30
and 31), apply oil to the shuttle race (A, Fig. 27).
The slide should then be closed.
25
To
Oil the Machine
To insure easy running, the machine requires
oiHng and if used continuously it should be oiled
FIG.
22.
FRONT
VIEW,
SHOWING
OILING
POINTS
each day.
With
moderate use, an occasional oiling
is
sufficient. Oil should be apphed at each of the
places shown by unlettered arrows in
Figs.
22 to 25,
inclusive.
One
drop
of oil at each point is sufficient.
Oil
holes are provided in the machine for bearings
which
cannot be directly reached.
Draw
to the left the shde in the bed of the machine
and
after removing the hnt and dust which may
have accumulated (see instructions on
pages
30
and
31), apply oil to the shuttle race (A, Fig. 27).
The
shde should then be closed.
