30
To Clean the Stitch Forming Mechanism
After considerable use, the stitch forming mechan-
ism in the bed of the machine may become clogged
with lint and this may interfere with the perfect
operation of the machine.
Occasionally remove the shuttle, as instructed
below, and remove the lint, etc., which has accumu-
lated in the machine.
To Remove the Shuttle
Draw to the left the slide in the bed of the ma-
chine. Turn the balance wheel over toward you

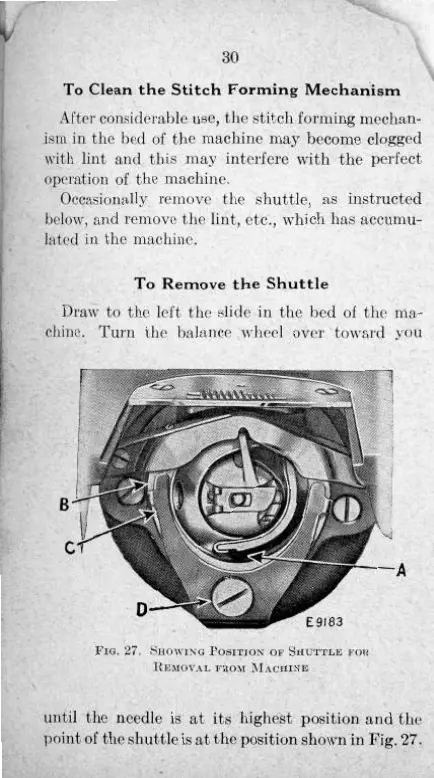

Fie. 27. SHOWING POSITION OF SHUTTLE FOR
REMOVAL FROM MACHINE
until the needle is at its highest position and the
point of the shuttle is at the position shown in Fig. 27.
To
Clean
the
Stitch
Forming
Mechanism
After
considerable use, the stitch forming mechan-
ism
in the bed of the machine may
become
clogged
with
lint
and
this
may interfere
with
the perfect
operation of the machine.
Occasionally remove the shuttle, as instructed
below,
and remove the
lint,
etc., which has accumu-
lated
in the machine.
To
Remove the Shuttle
Draw
to the left the shde in the bed of the ma-
chine.
Turn
the balance wheel over toward you
FIG.
27.
SHOWING
POSITION
OF
SHUTTLE
FOR
REMOVAL
FROM
MACHINE
until
the needle is at its highest position and the
point of the shuttle is at the position shown in
Fig.
27.
