55
RUFFLER
Lines 1, 2, 3, 4 and 5 shown in Fig. 59 indicate
where the material is to be placed for various
operations as follows:

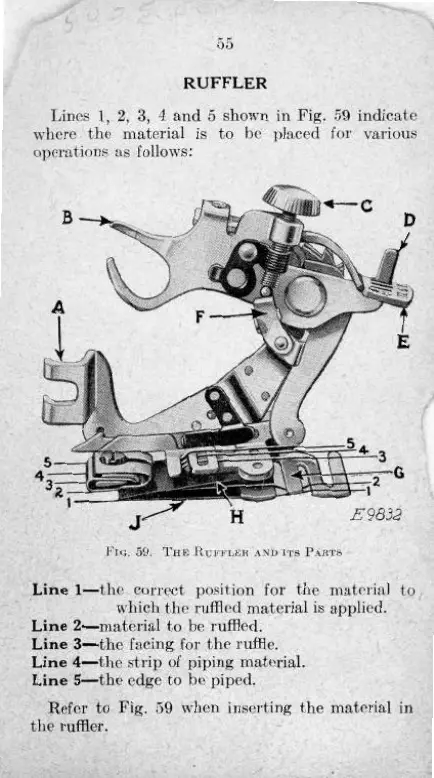

FIG. 59. THE RUFFLER AND ITS PARTS
Line 1—the correct position for the material to,
which the ruffled material is applied.
Line 2—material
to be ruffled.
Line 3—the facing for the ruffle.
Line 4—the strip of piping material.
Line 5—the edge to be piped.
Refer to Fig. 59 when inserting the material in
the miller.
55
RUFFLER
Lines
1, 2, 3, 4 and 5 shown in Fig. 59 indicate
where the material is to be
placed
for various
operations
as
follows:
FIG.
59. THE
RUFFLER
AND ITS
PARTS
Line
1—the
correct
position
for the material to
which the ruffled material is applied.
Line
2—material to be ruffled.
Line
3—the
facing for the ruffle.
Line
4—the
strip of piping material.
Line
5—the
edge
to be
piped.
Refer to Fig. 59 when inserting the material in
the ruffler.
