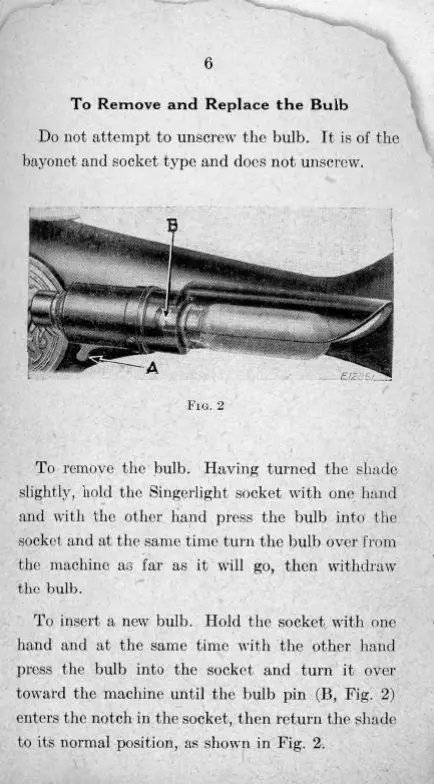

6
To Remove and Replace the Bulb
Do not attempt to unscrew the bulb. It is of the
bayonet and socket type and does not unscrew.
FIG. 2
To remove the bulb. Having turned the shade
slightly, hold the Singerlight socket with one hand
and with the other hand press the bulb into the
socket and at the same time turn the bulb over from
the machine as far as it will go, then withdraw
the bulb.
To insert a new bulb. Hold the socket with one
hand and at the same time with the other hand
press the bulb into the socket and turn it over
toward the machine until the bulb pin (B, Fig. 2)
enters the notch in the socket, then return the shade
to its normal position, as shown in Fig. 2.
6
To
Remove
and
Replace
the
Bulb
Do not
attempt
to unscrew the bulb. It is of the
bayonet and socket type and
does
not unscrew.
FIG.
2
To
remove the bulb. Having turned the
shade
slightly,
hold the Singeriight socket
with
one hand
and
with
the other hand
press
the bulb into the
socket and at the
same
time
turn
the bulb over from
the machine as far as it
will
go, then withdraw
the bulb.
To
insert a new bulb. Hold the socket
with
one
hand and at the
same
time
with
the other hand
press
the bulb into the socket and
turn
it over
toward
the machine
until
the bulb pin (B, Fig. 2)
enters the notch in the socket, then return the
shade
to its normal position, as shown in Fig. 2.
