20
GB

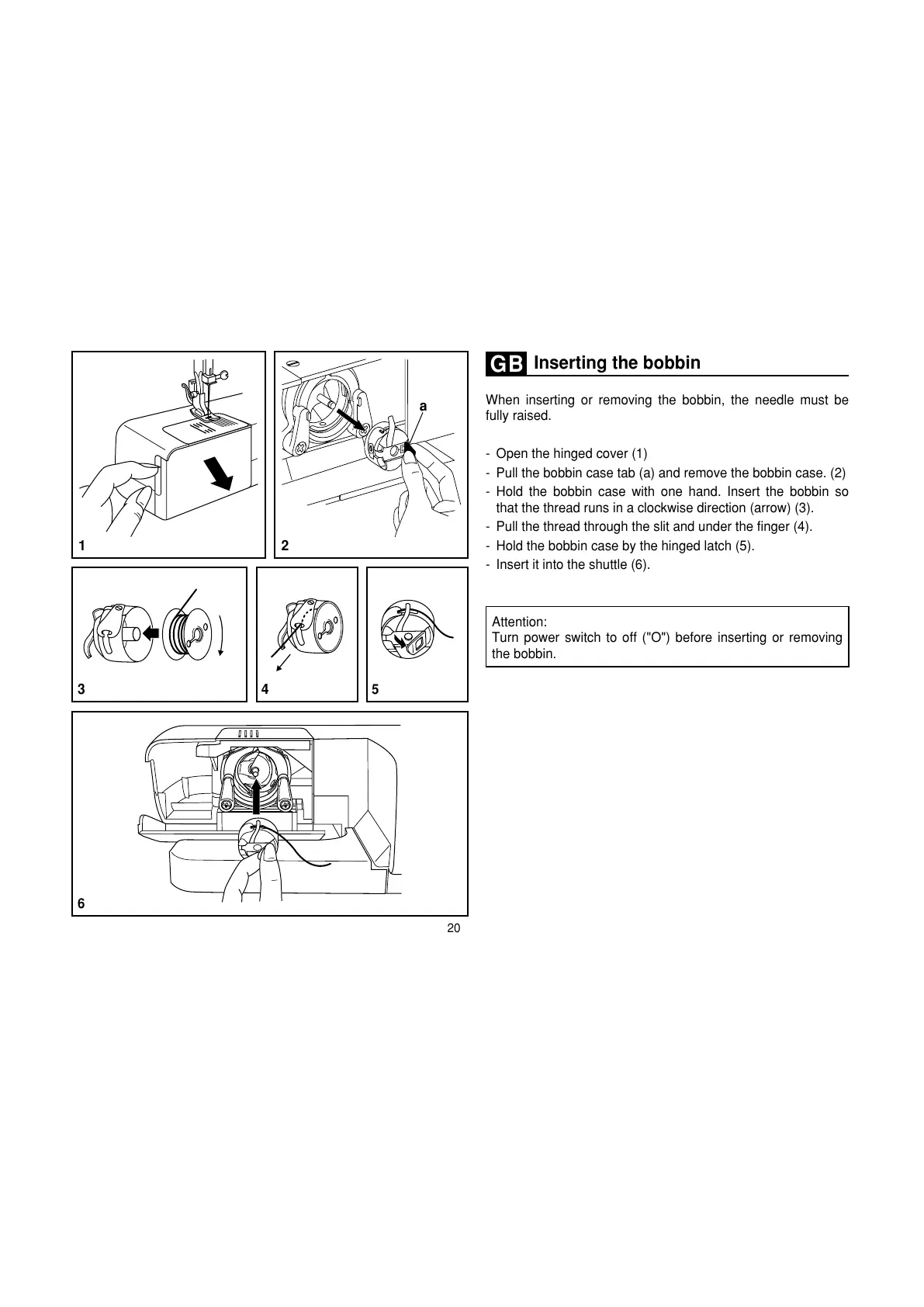

Inserting the bobbin
1
3
4
6
5
a
When inserting or removing the bobbin, the needle must be
fully raised.
- Open the hinged cover (1)
- Pull the bobbin case tab (a) and remove the bobbin case. (2)
- Hold the bobbin case with one hand. Insert the bobbin so
that the thread runs in a clockwise direction (arrow) (3).
- Pull the thread through the slit and under the finger (4).
- Hold the bobbin case by the hinged latch (5).
- Insert it into the shuttle (6).
Attention:
Turn power switch to off ("O") before inserting or removing
the bobbin.
