VI -b
DRUM
ADJUSTMENT
(1)
Remove
the E ring
(40)
which holds Sub
Drum
and
two binding
screws
(3x5) which
hold Sub
Drum
Piece
Holder.
Remove the
Holder.
E
Ring
(40)
Sub
Drum
Binding Screws
(3x5)
Sub
Drum
Piece Holder

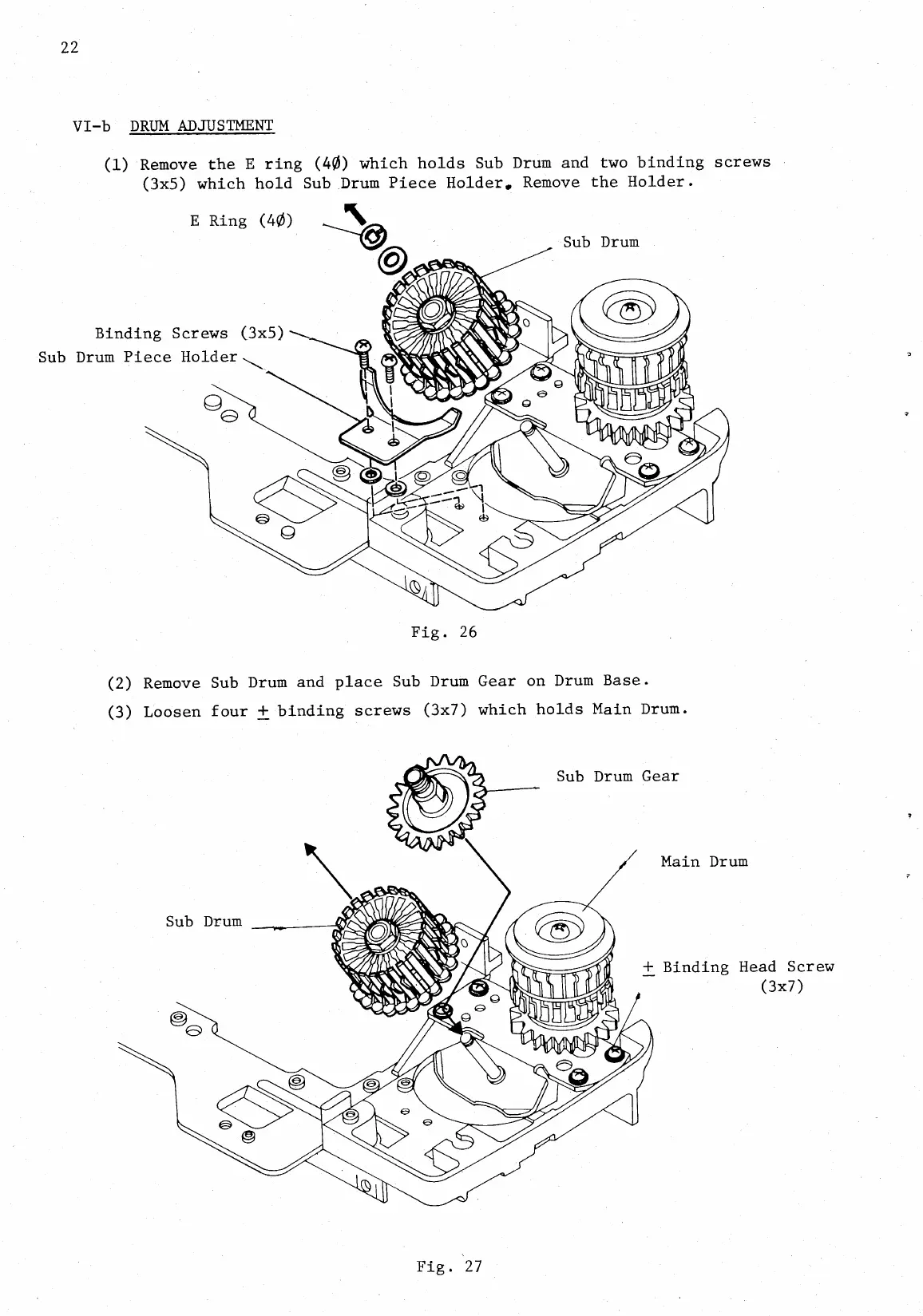

Fig.
26
(2)
Remove Sub
Drum
and
place Sub
Drum
Gear on
Drum
Base.
(3)
Loosen
four +
binding
screws
(3x7)
which holds Main
Drum.
Sub Drum
Gear
Main
Drum
+
Binding
Head
Screw
(3x7)
Fig.
27
