23

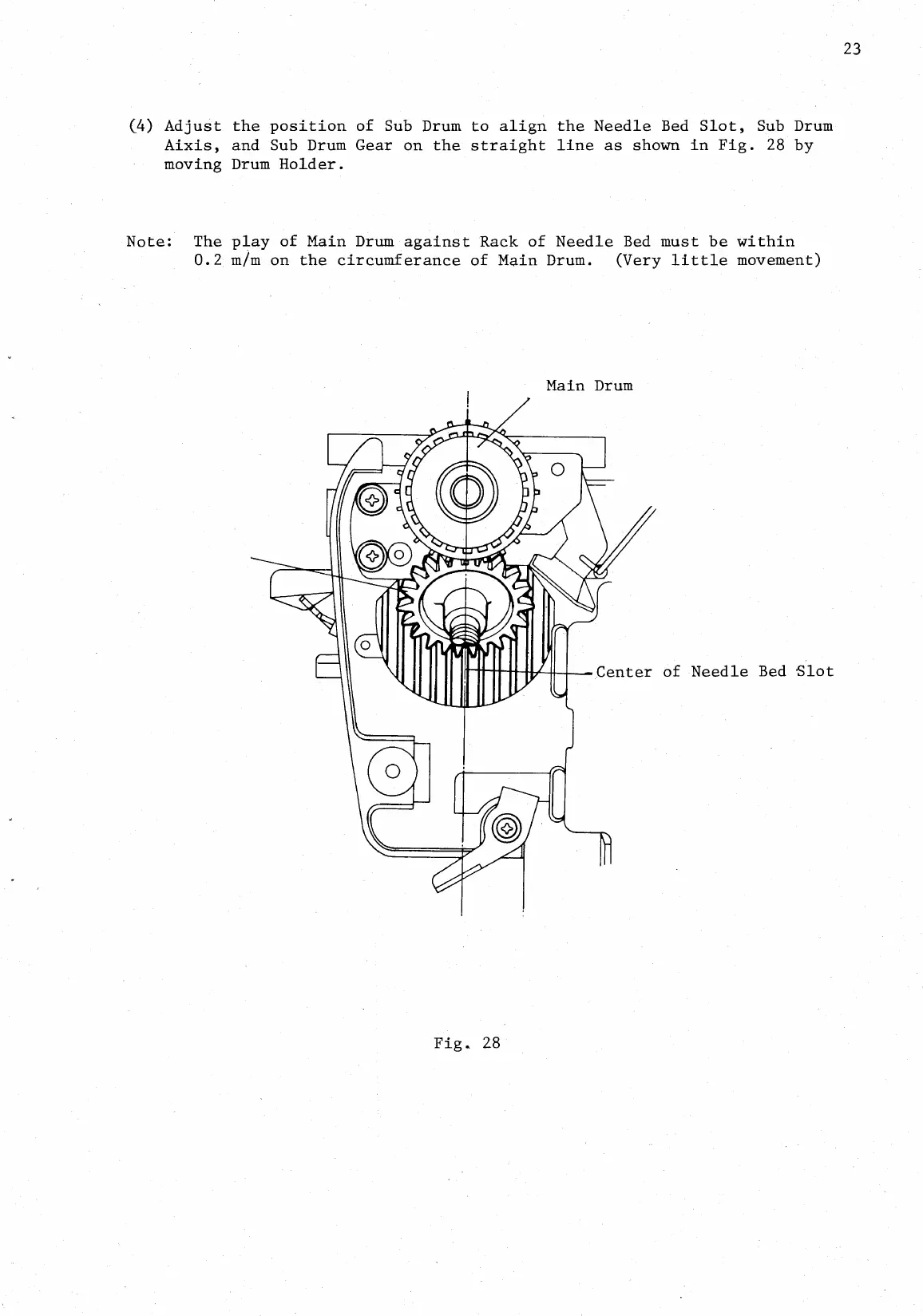

(4)
Adjust
the
position
of
Sub
Drum
to
align
the
Needle
Bed
Slot,
Sub
Drum
Aixis,
and
Sub
Drum
Gear
on
the
straight
line
as
shown
in
Fig.
28
by
moving
Drum
Holder.
Note:
The
play
of
Main
Drum
against
Rack
of
Needle
Bed
must
be
within
0.2
m/m
on
the
circumferance
of
Main
Drum.
(Very
little
movement)
Main
Drum
Center
of
Needle
Bed
Slot
Fig.
28
