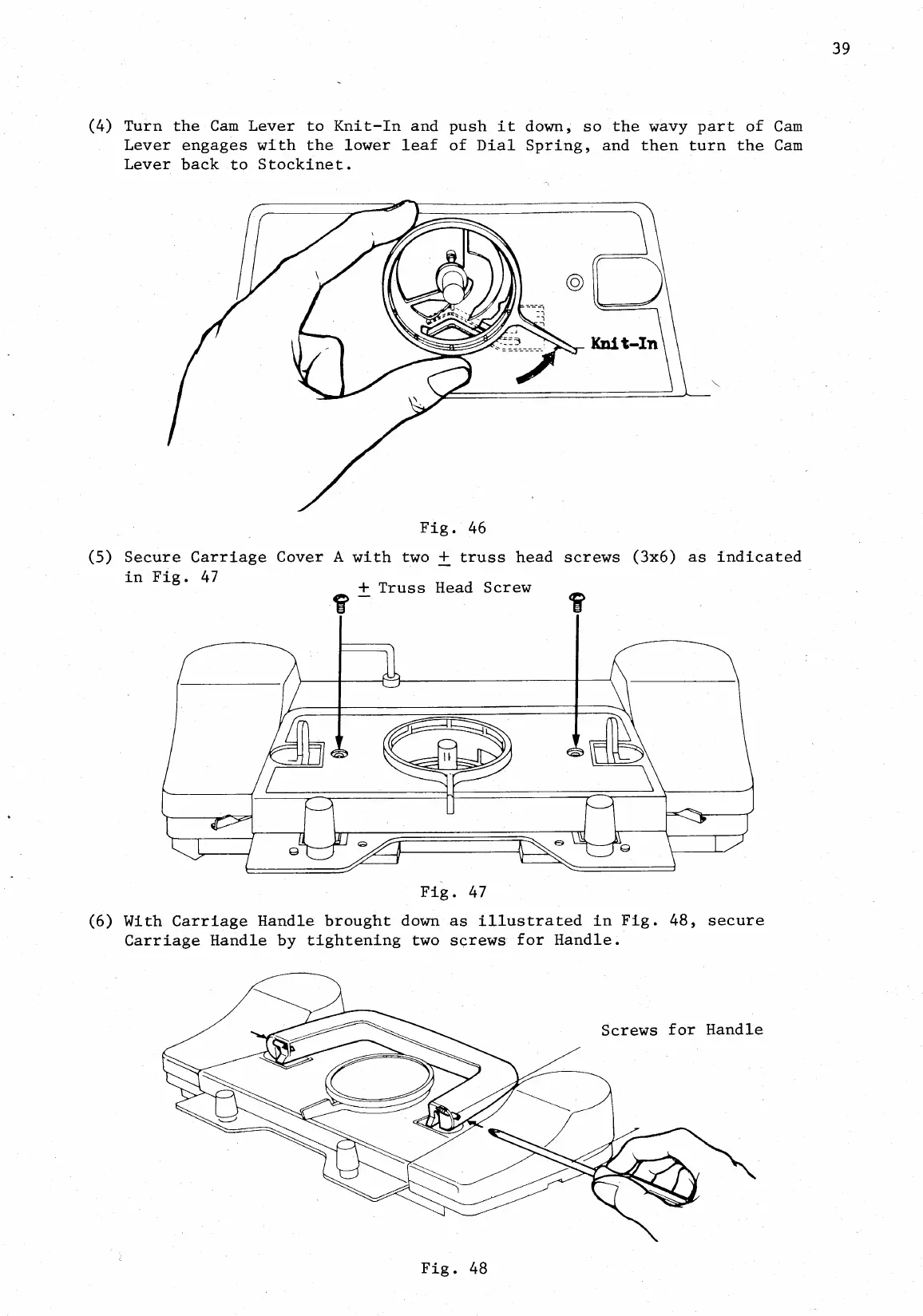

39
(4)
Turn the Cam Lever to Knit -In
and
push it down, so
the wavy part of Cam
Lever
engages with the lower leaf of Dial Spring, and then turn the Cam
Lever back to Stockinet.
Fig.
46
(5) Secure Carriage Cover A with two + truss head screws
(3x6) as indicated
+ Truss Head
Screw
in Fig. 47
e
Fig. 47
(6) With
Carriage
Handle
brought
down as
illustrated in Fig. 48, secure
Carriage Handle by tightening two
screws for Handle.
Screws
for
Handle
Fig.
48
