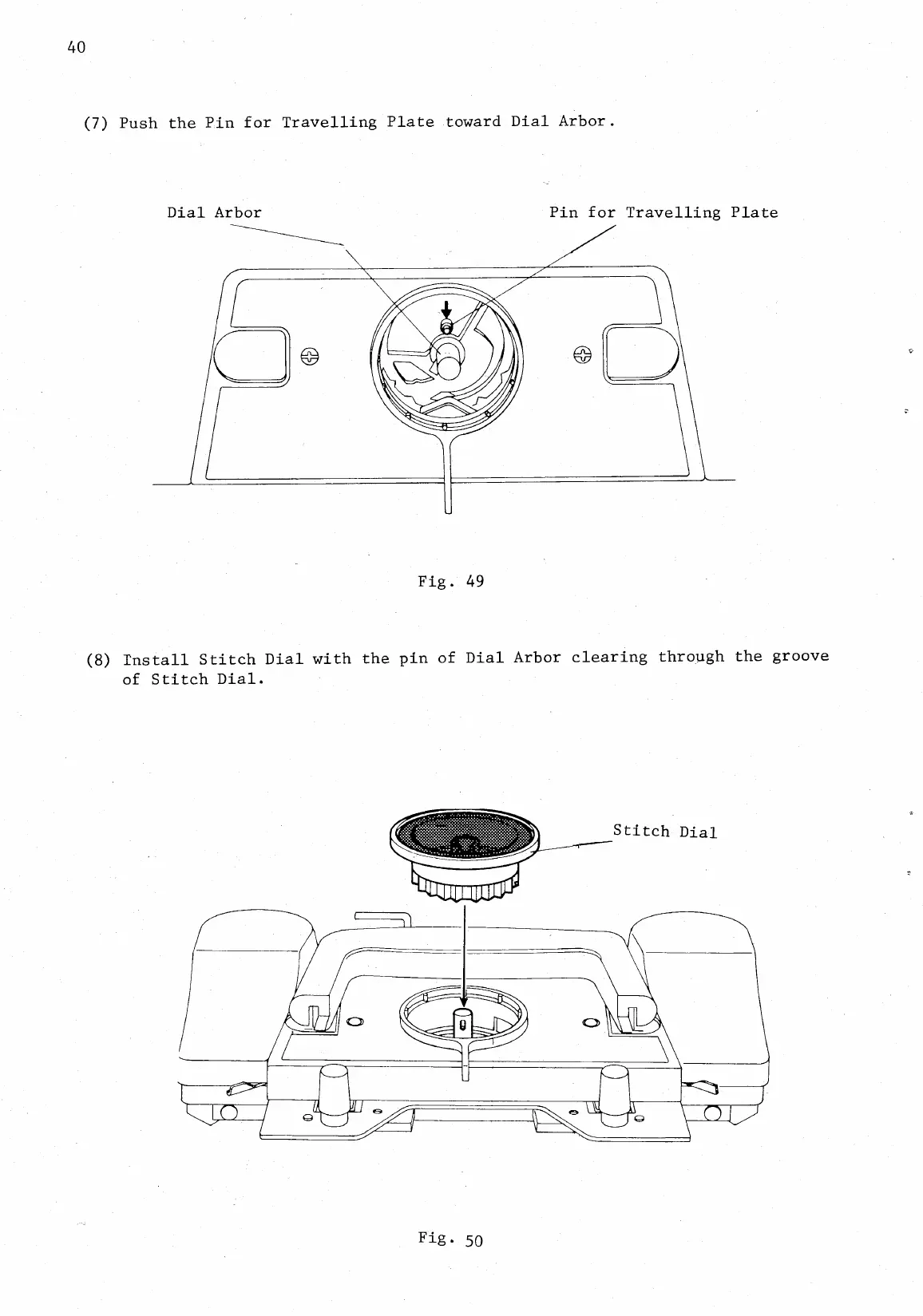

40
(7)
Push
the
Pin
for
Travelling
Plate
toward
Dial
Arbor.
Dial
Arbor
Fig.
49
Pin
for
Travelling
Plate
(8)
Install
Stitch
Dial
with
the
pin
of
Dial
Arbor
clearing
through
the
groove
of
Stitch
Dial.
Stitch
Dial
Fig.
50
