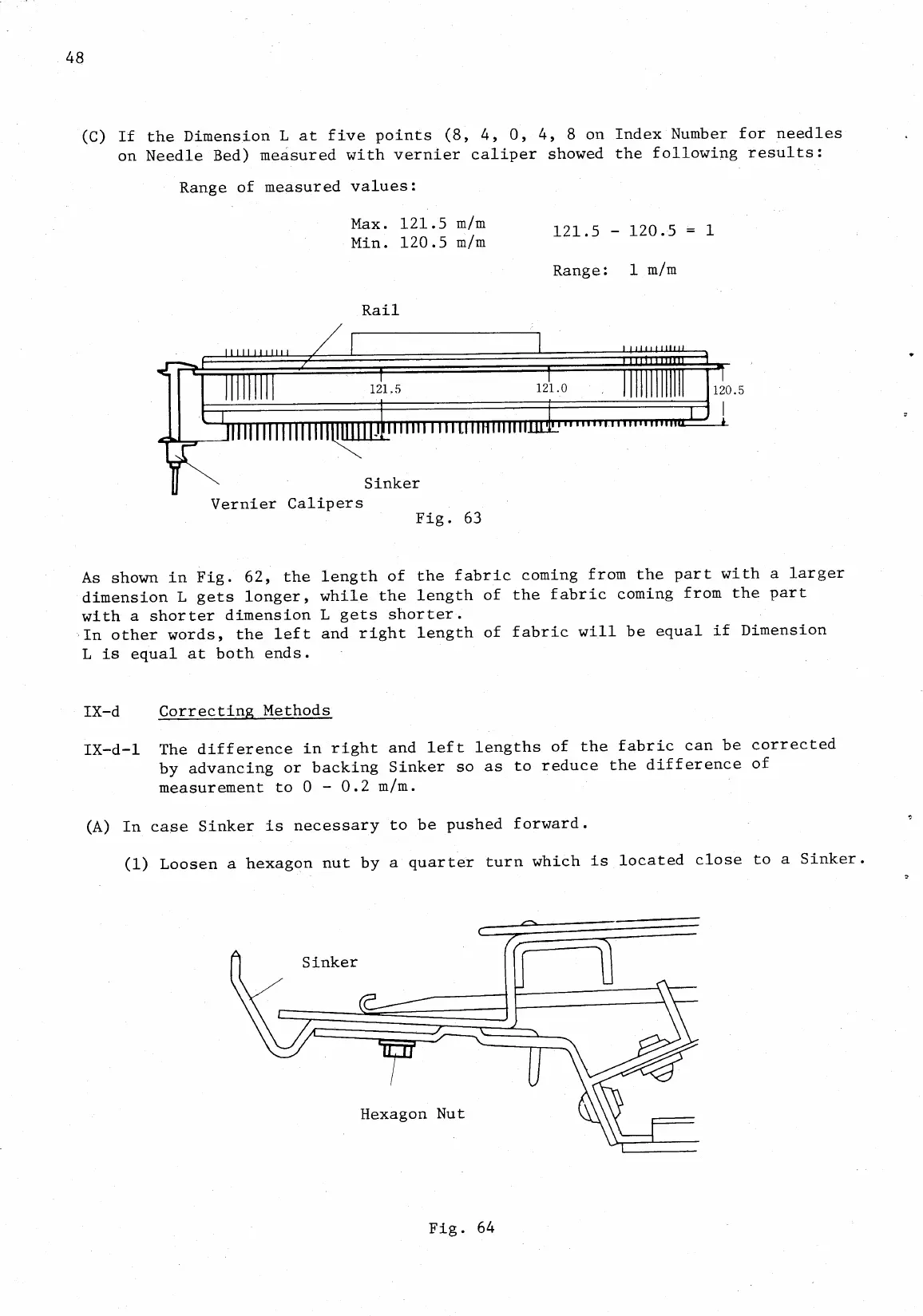

Singer 321 KNITTER - Page 52

48
(C)
If
the
Dimension
L
at
five
points
(8,
4,
0,
4,
8
on
Index
Number
for
needles
on
Needle
Bed)
measured
with
vernier
caliper
showed
the
following
results:
Range
of
measured
values:
Max.
121.5
m/m
Min.
120.5
m/m
Vernier
Calipers
Rail
Sinker
Fig.
63
121.5
-
120.5
=
1
Range:
1
m/m
120.5
As
shown
in
Fig.
62,
the
length
of
the
fabric
coming
from
the
part
with
a
larger
dimension
L
gets
longer,
while
the
length
of
the
fabric
coming
from
the
part
with
a
shorter
dimension
L
gets
shorter.
In
other
words,
the
left
and
right
length
of
fabric
will
be
equal
if
Dimension
L
is
equal
at
both
ends.
IX
-d
Correcting
Methods
IX
-d-1
The
difference
in
right
and
left
lengths
of
the
fabric
can
be
corrected
by
advancing
or
backing
Sinker
so
as
to
reduce
the
difference
of
measurement
to
0
-
0.2
m/m.
(A)
In
case
Sinker
is
necessary
to
be
pushed
forward.
(1)
Loosen
a
hexagon
nut
by
a
quarter
turn
which
is
located
close
to
a
Sinker.
Hexagon
Nut
Fig.
64
