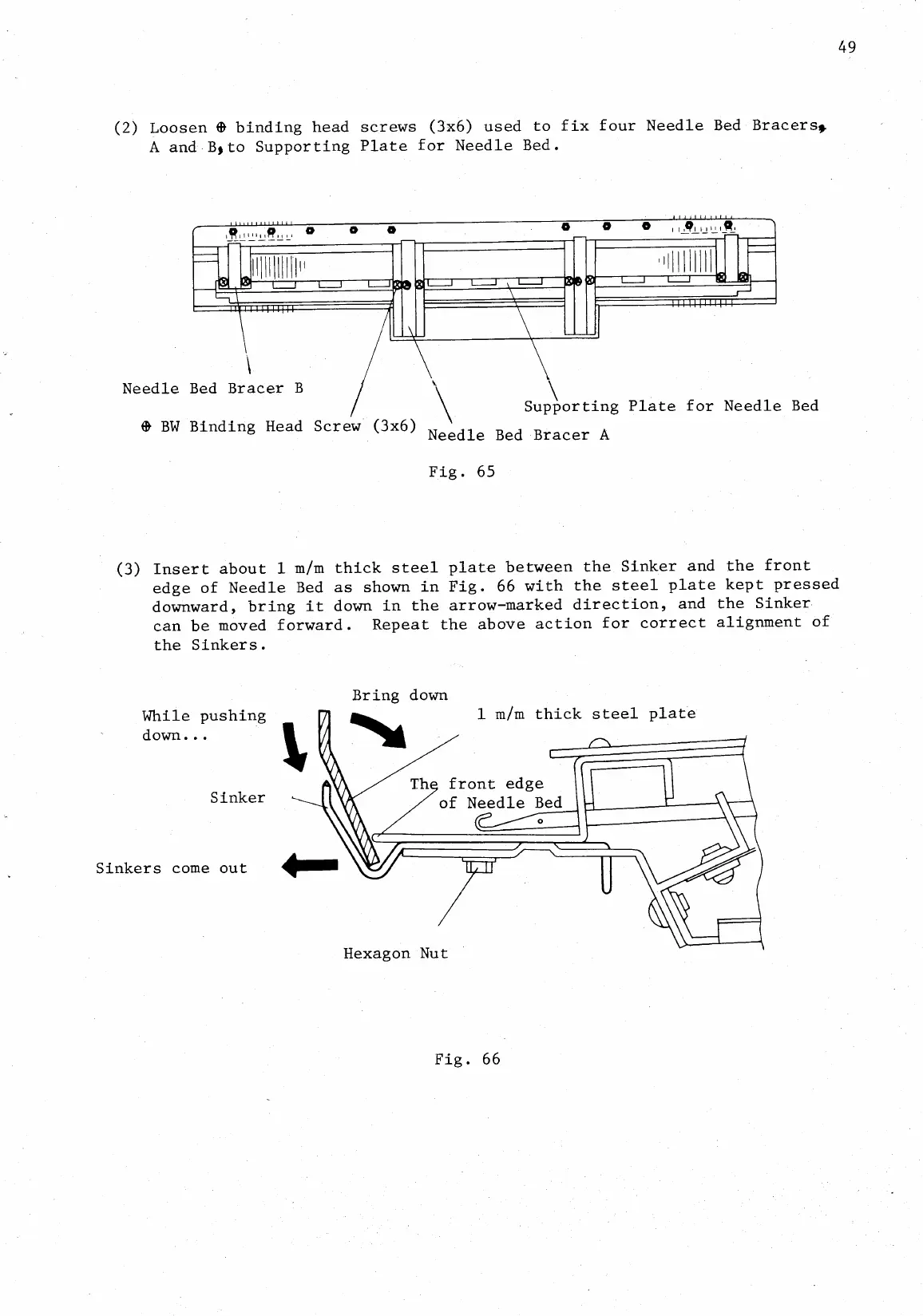

Singer 321 KNITTER - Page 53

49
(2)
Loosen ia
binding
head
screws (3x6)
used to
fix four
Needle
Bed
Bracers,
A
and
B,to
Supporting
Plate
for
Needle
Bed.
Needle
Bed Bracer B
BW
Binding Head
Screw
(3x6
Supporting Plate for
Needle Bed
Needle Bed
Bracer A
Fig. 65
(3)
Insert
about 1
m/m
thick
steel
plate
between
the
Sinker and
the
front
edge of
Needle
Bed
as shown
in
Fig. 66
with
the
steel
plate
kept
pressed
downward,
bring it
down in
the
arrow
-marked
direction,
and the
Sinker
can be
moved
forward.
Repeat the
above
action for
correct
alignment
of
the
Sinkers.
While pushing
down
..
.
Sinker
Sinkers
come out
Bring down
444
41i
1 m
m thick
steel plate
11
//
19 front edge
of Needle
Bed
Hexagon Nut
Fig. 66
