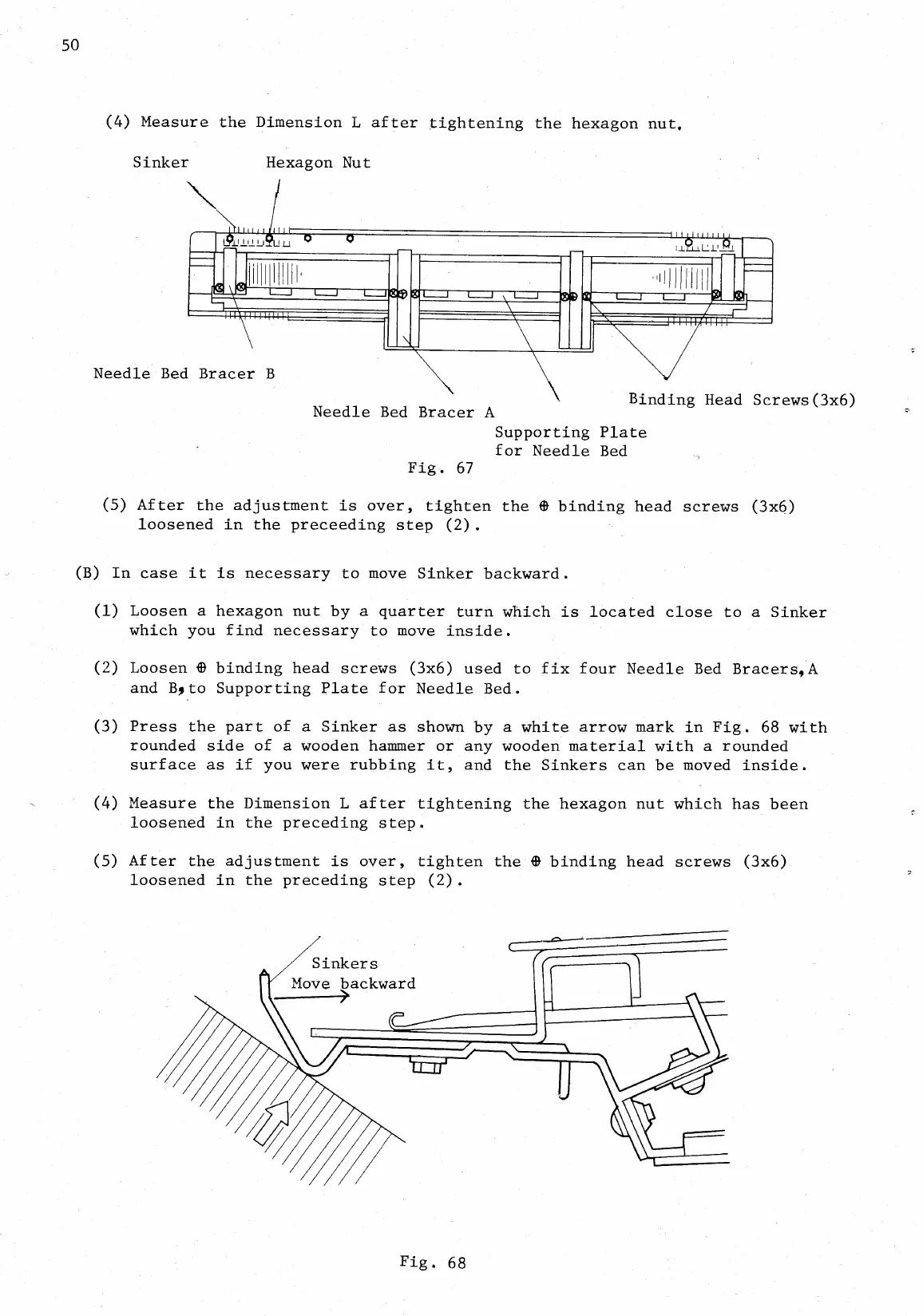

Measure the
Dimension L
after
tightening the
hexagon
nut.
Sinker Hexagon
Nut
ir=1110
_
IN
!'u_ht_l
•
u
ill
ur
Needle
Bed Bracer
B
Needle
Bed Bracer A
Fig.
67
Binding Head
Screws(3x6)
Supporting Plate
for
Needle Bed
(5) After the
adjustment is
over, tighten
the * binding
head screws
(3x6)
loosened in the preceeding
step (2).
(B) In case it is
necessary to move
Sinker backward.
(1) Loosen a
hexagon nut by a
quarter turn which is
located close to
a Sinker
which you find
necessary to move inside.
(2)
Loosen binding
head screws (3x6)
used to fix four
Needle Bed Bracers,A
and Blito
Supporting Plate
for Needle Bed.
(3)
Press the part of a Sinker
as shown by a white
arrow mark in Fig. 68 with
rounded side of a wooden hammer or any
wooden material with a rounded
surface as if you
were rubbing it, and the
Sinkers can be moved
inside.
(4) Measure the
Dimension L after tightening the
hexagon nut which has been
loosened in the
preceding step.
(5)
After the adjustment is
over, tighten the ED binding
head screws (3x6)
loosened in the preceding step (2).
Sinkers
Move backward
T
Fig.
68
