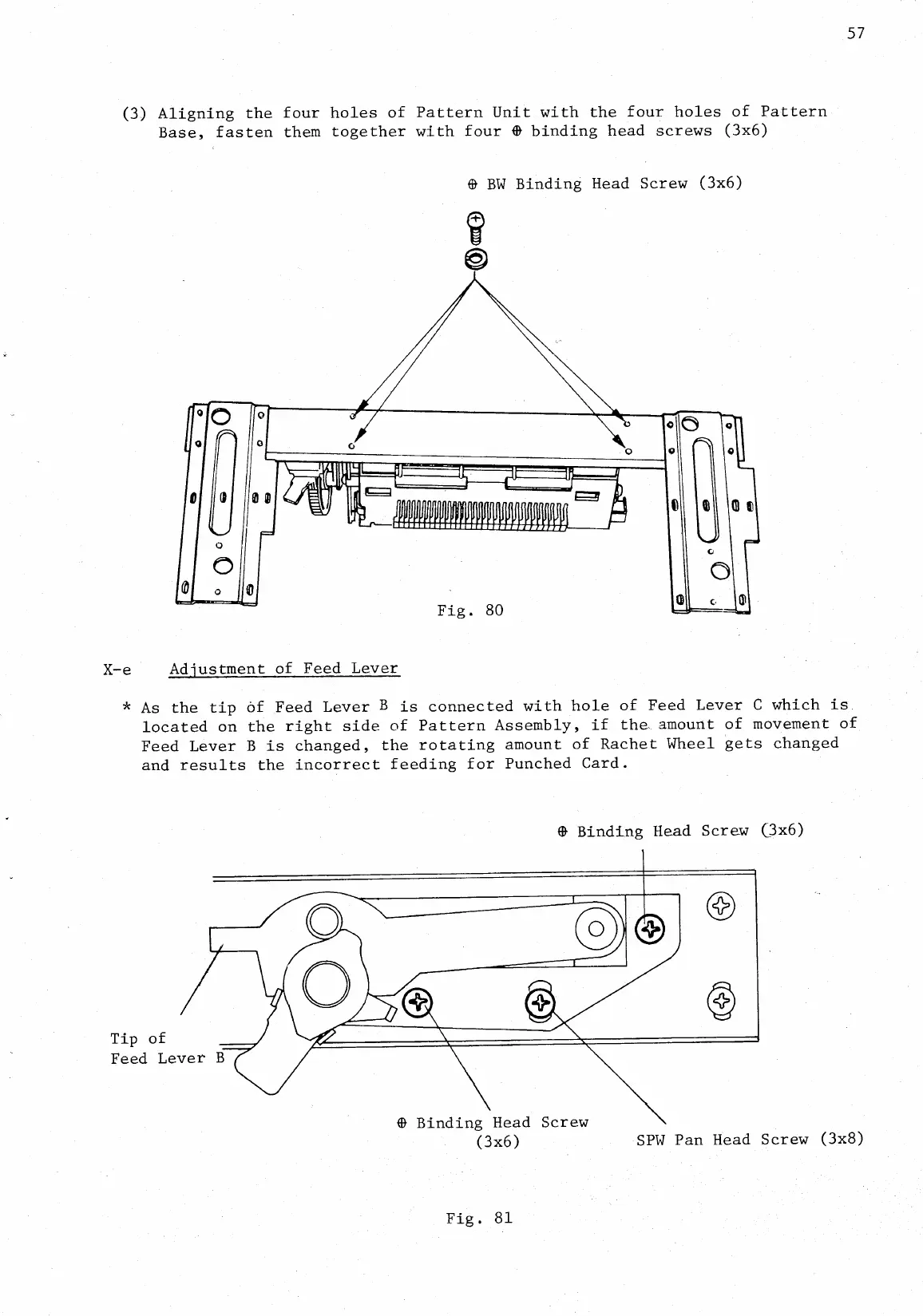

57
(3)
Aligning
the
four
holes
of
Pattern
Unit
with
the
four
holes
of
Pattern
Base,
fasten
them
together
with
four
ER
binding
head
screws
(3x6)
BW
Binding
Head
Screw
(3x6)
if
ff
oiR10)
X
-e
Adjustment
of
Feed
Lever
*
As
the
tip
of
Feed
Lever
B
is
connected
with
hole
of
Feed
Lever
C
which
is
located
on
the
right
side
of
Pattern
Assembly,
if
the
amount
of
movement
of
Feed
Lever
B
is
changed,
the
rotating
amount
of
Rachet
Wheel
gets
changed
and
results
the
incorrect
feeding
for
Punched
Card.
Tip
of
Feed
Lever
Binding
Head
Screw
(3x6)
.13)
Binding
Head
Screw
(3x6)
Fig.
81
SPW
Pan
Head
Screw
(3x8)
