58

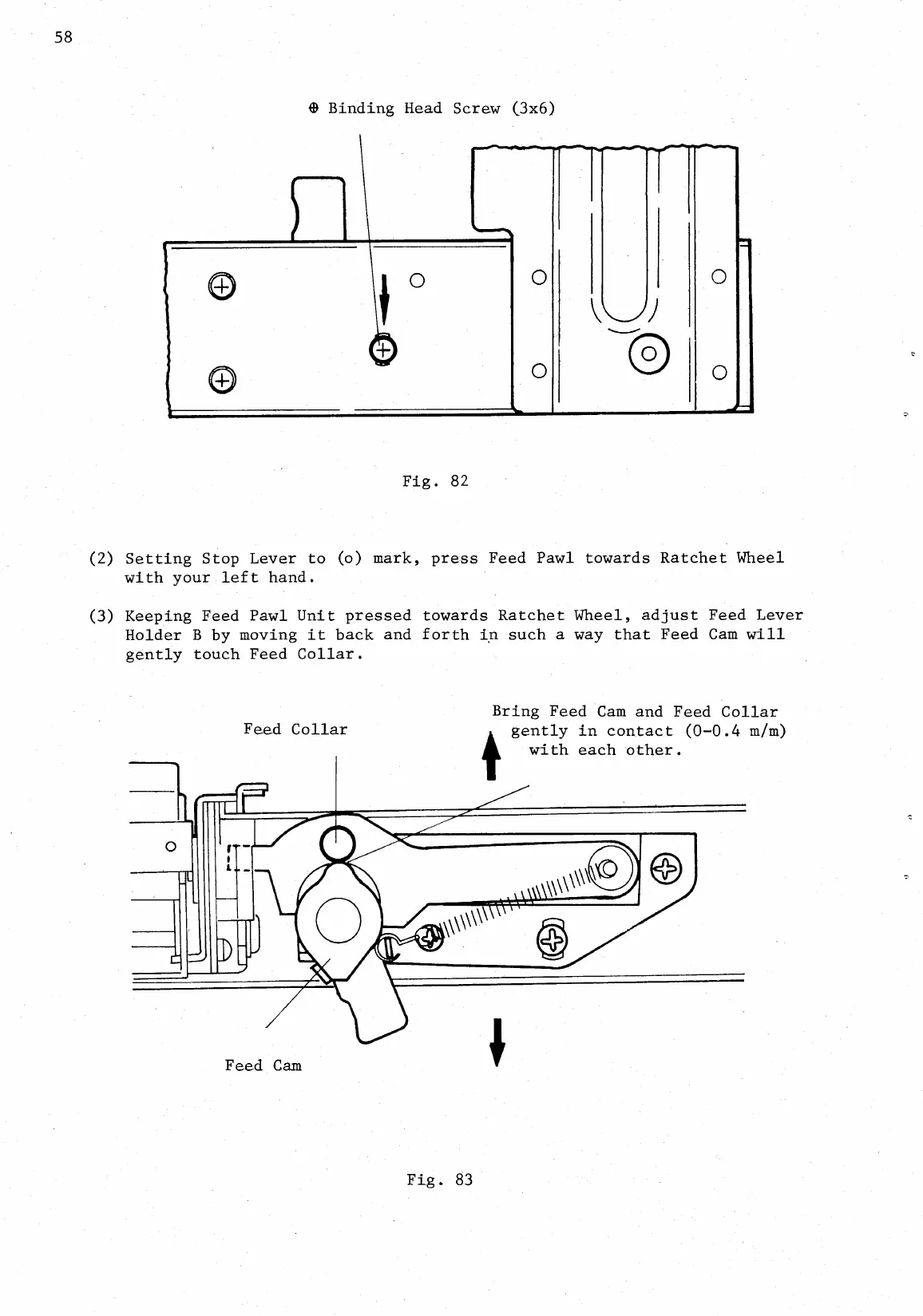

0 Binding Head
Screw (3x6)
Fig.
82
(2)
Setting Stop Lever to (o) mark, press
Feed Pawl towards Ratchet Wheel
with your left hand.
(3)
Keeping Feed Pawl Unit pressed
towards Ratchet Wheel, adjust
Feed Lever
Holder B
by moving
it back and
forth
in such a
way that Feed Cam will
gently
touch Feed
Collar.
Feed Collar
Feed Cam
Fig. 83
Bring Feed Cam and Feed Collar
gently in contact (0-0.4 m/m)
t
with each other.
