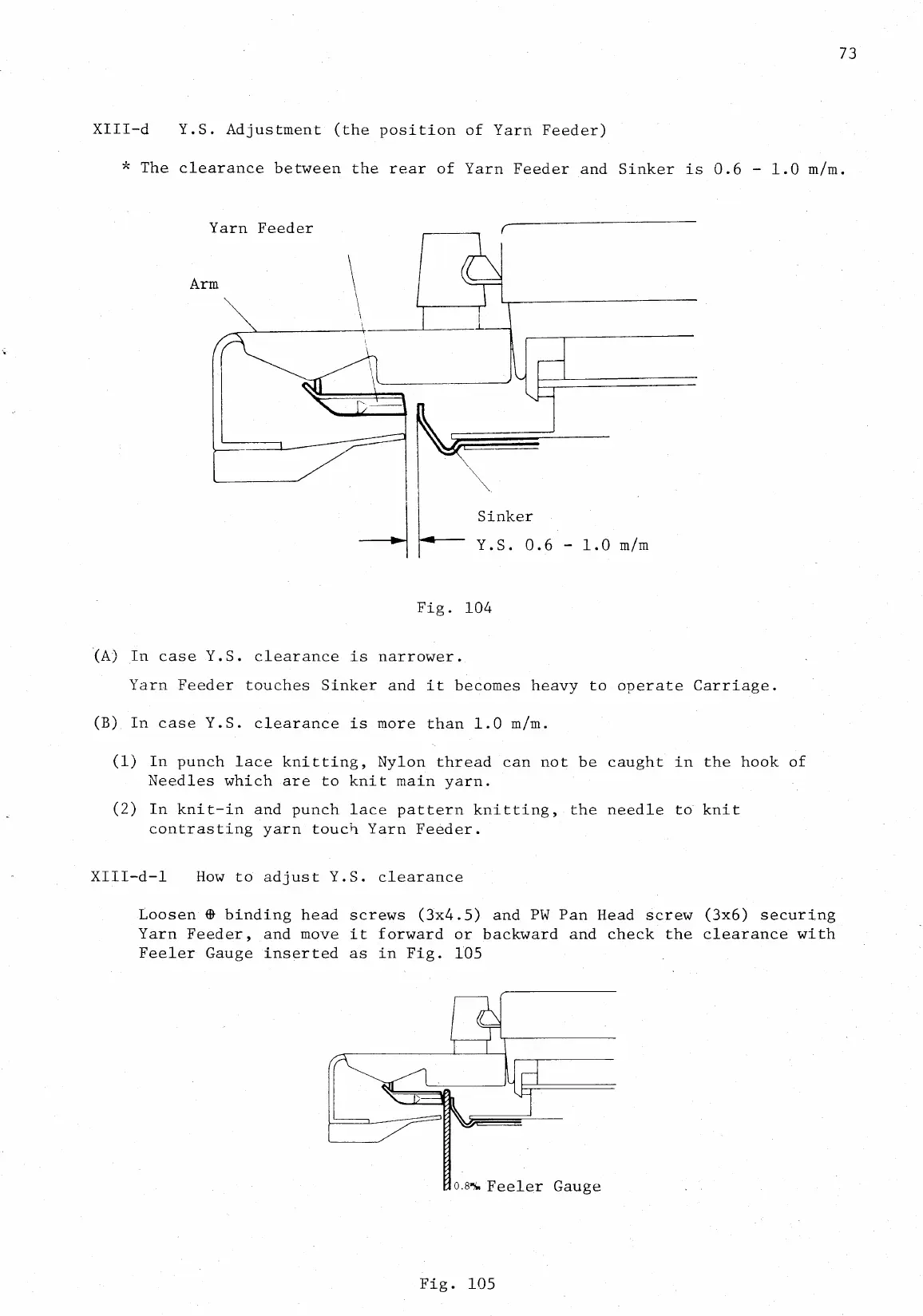

Singer 321 KNITTER - Page 77

73
XIII-d
Y.S.
Adjustment (the
position of Yarn
Feeder)
*
The clearance
between the rear
of Yarn Feeder
and Sinker is 0.6
- 1.0 m/m.
Yarn Feeder
Arm
Sinker
Y.S. 0.6 - 1.0 m/m
Fig.
104
(A)
In case Y.S.
clearance is narrower.
Yarn Feeder touches Sinker and it becomes heavy to operate
Carriage.
(B) In
case Y.S. clearance is more
than 1.0 m/m.
(1) In
punch lace knitting, Nylon thread can not be
caught
in the hook
of
Needles which are to knit main yarn.
(2) In knit -in and punch lace
pattern knitting, the needle to
knit
contrasting yarn touch Yarn Feeder.
XIII-d-1 How to adjust Y.S. clearance
Loosen ID binding head screws (3x4.5) and PW Pan Head
screw (3x6) securing
Yarn Feeder, and move it forward or backward and check the clearance with
Feeler Gauge
inserted as in Fig. 105
o.".
Feeler
Gauge
Fig.
105
