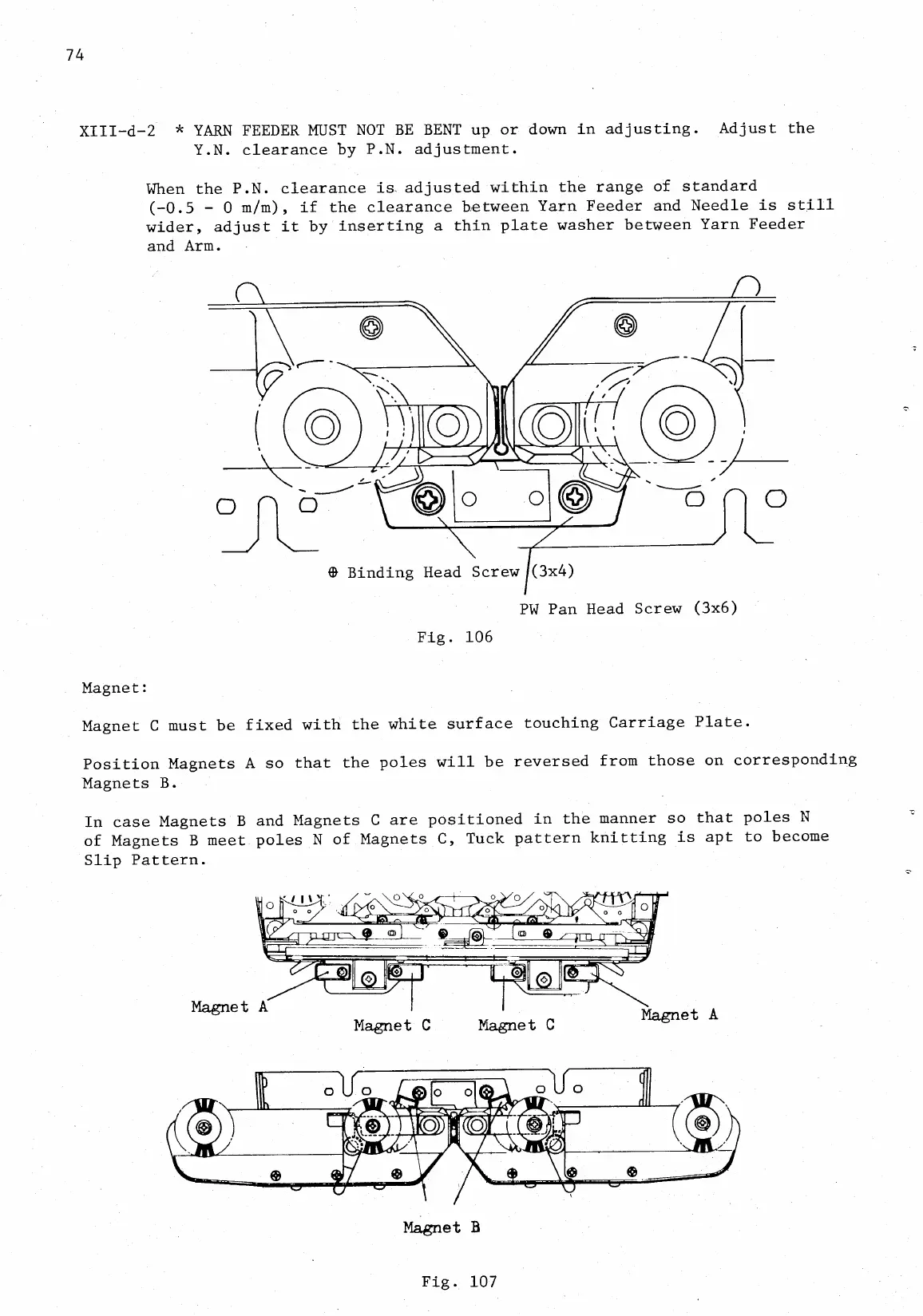

Singer 321 KNITTER - Page 78

74
XIII-d-2 *
YARN
FEEDER MUST
NOT BE
BENT up or
down in
adjusting.
Adjust the
Y.N.
clearance by
P.N.
adjustment.
When
the P.N.
clearance is
adjusted
within
the
range of
standard
(-0.5 -
0 m/m),
if the
clearance
between Yarn
Feeder
and
Needle is
still
wider,
adjust
it by
inserting a
thin
plate
washer
between Yarn
Feeder
and
Arm.
Binding
Head
Screw
(3x4)
PW Pan
Head
Screw
(3x6)
Fig. 106
Magnet:
Magnet C
must be
fixed
with
the
white
surface
touching
Carriage
Plate.
Position
Magnets A so
that
the
poles
will be
reversed
from
those on
corresponding
Magnets B.
In
case
Magnets
B and
Magnets
C
are
positioned in
the
manner
so
that
poles N
of
Magnets B
meet
poles
N of
Magnets C,
Tuck
pattern
knitting
is
apt to
become
Slip
Pattern.
Magnet
C
Magnet C
Magnet
B
Magnet
A
Fig. 107
