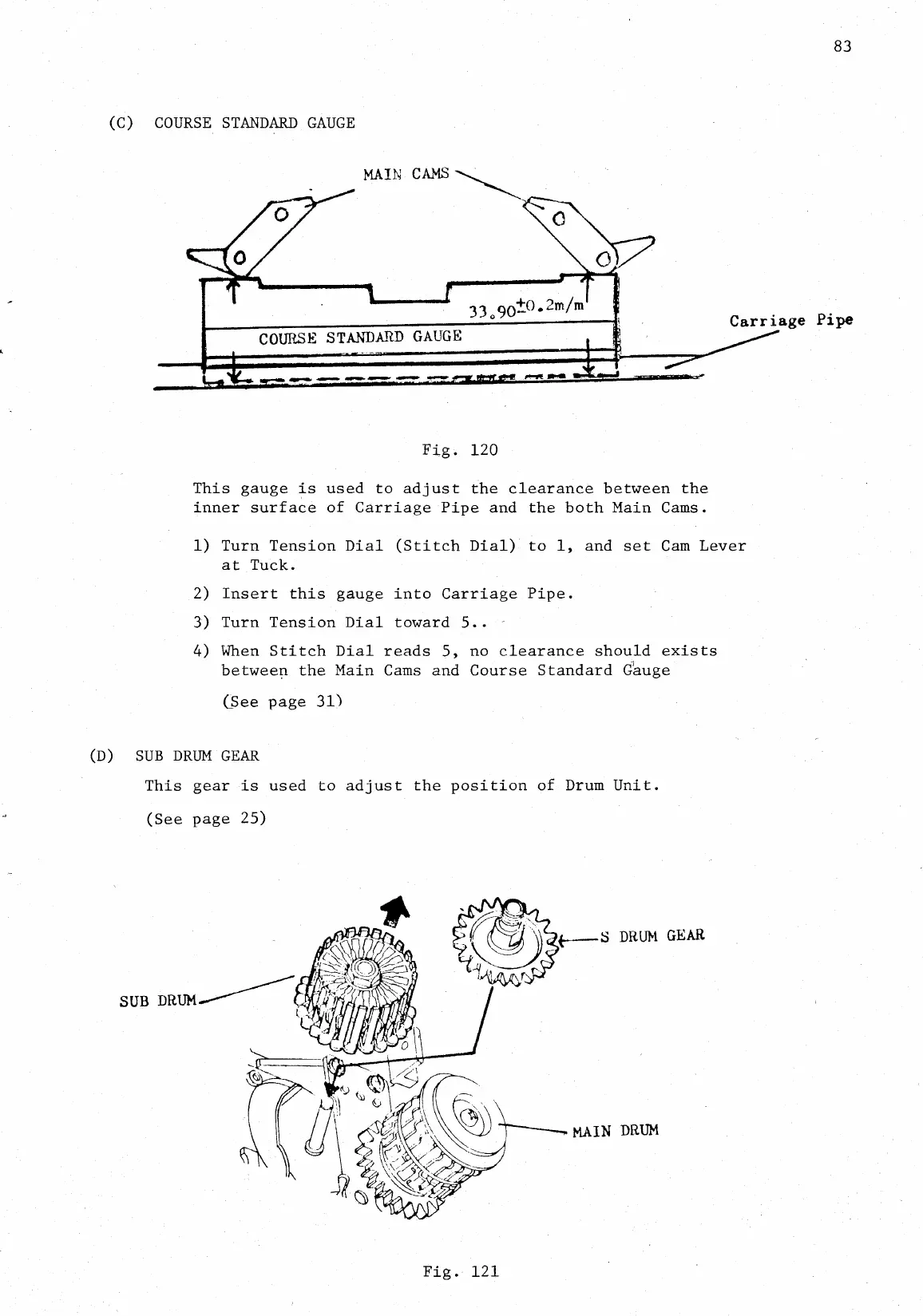

(C) COURSE STANDARD GAUGE
MAIN
CAMS
+0 2m
33.90— '
COURSE
STANDARD
GAUGE
1,••••
11.0
01,1 •1• y1.111 OMR
,A,114.
llama
Fig.
120
...--alliallannissiaoce
•
This gauge is used to adjust the clearance between the
inner surface of Carriage Pipe and the both Main Cams.
Carriage
Pipe
1) Turn Tension Dial (Stitch Dial) to 1, and set Cam Lever
at Tuck.
2) Insert this gauge into Carriage Pipe.
3) Turn Tension Dial toward 5..
4) When Stitch Dial reads 5, no clearance should exists
between the Main Cams and Course Standard Gauge
(See
page 31)
(D) SUB DRUM GEAR
This
gear is used to adjust the
position of Drum Unit.
(See
page
25)
Fig. 121
