DIRECTIONS
FOR
SPECIAL
TOOL
KITS
FOR
SK
-321
(A)
RACK
STANDARD
GAUGE

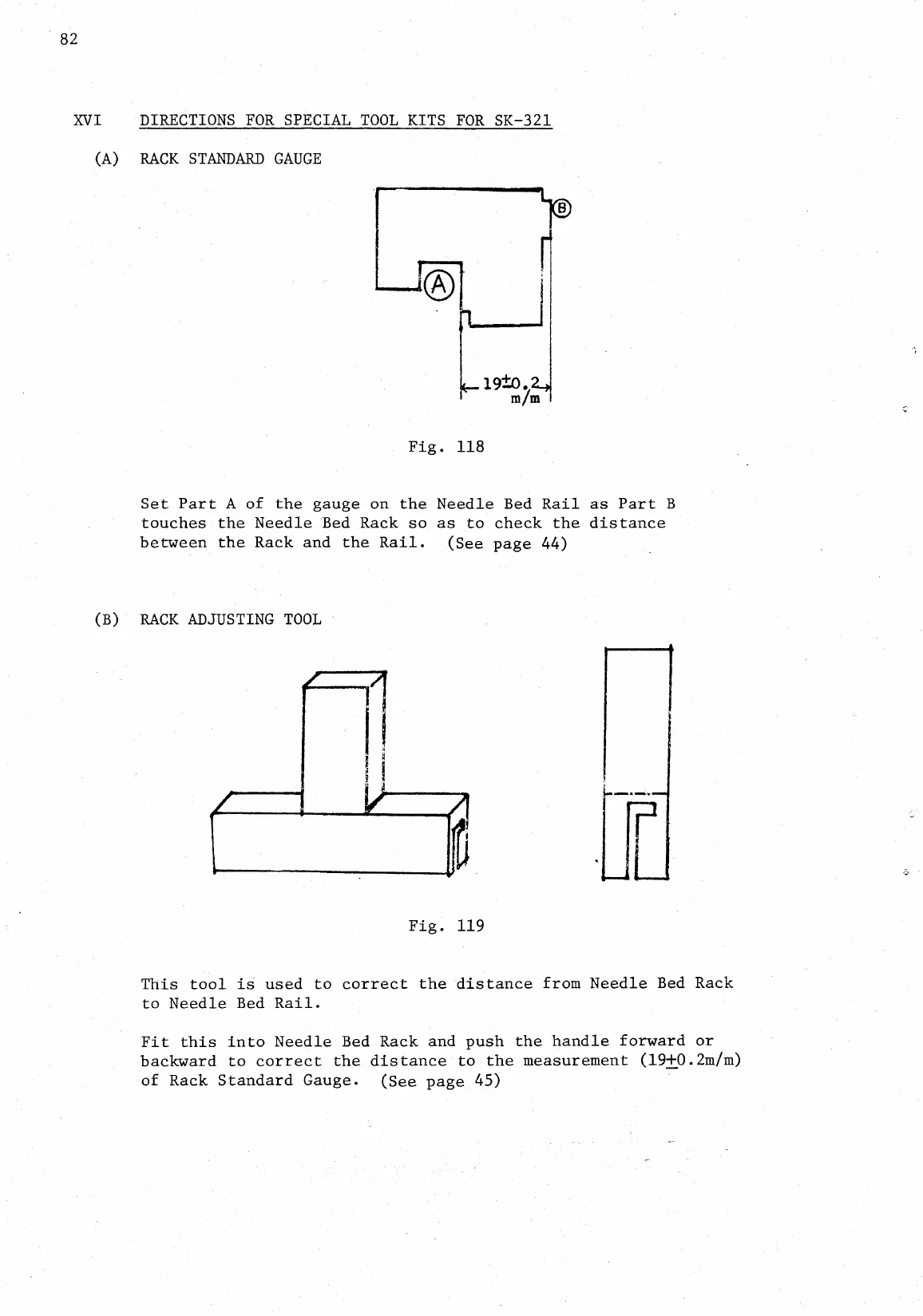

Fig.
118
Set
Part
A
of
the
gauge
on
the
Needle
Bed
Rail
as
Part
B
touches
the
Needle
Bed
Rack
so
as
to
check
the
distance
between
the
Rack
and
the
Rail.
(See
page
44)
(B)
RACK
ADJUSTING
TOOL
Fig.
119
This
tool
is
used
to
correct
the
distance
from
Needle
Bed
Rack
to
Needle
Bed
Rail.
Fit
this
into
Needle
Bed
Rack
and
push
the
handle
forward
or
backward
to
correct
the
distance
to
the
measurement
(19+0.2m/m)
of
Rack
Standard
Gauge.
(See
page
45)
