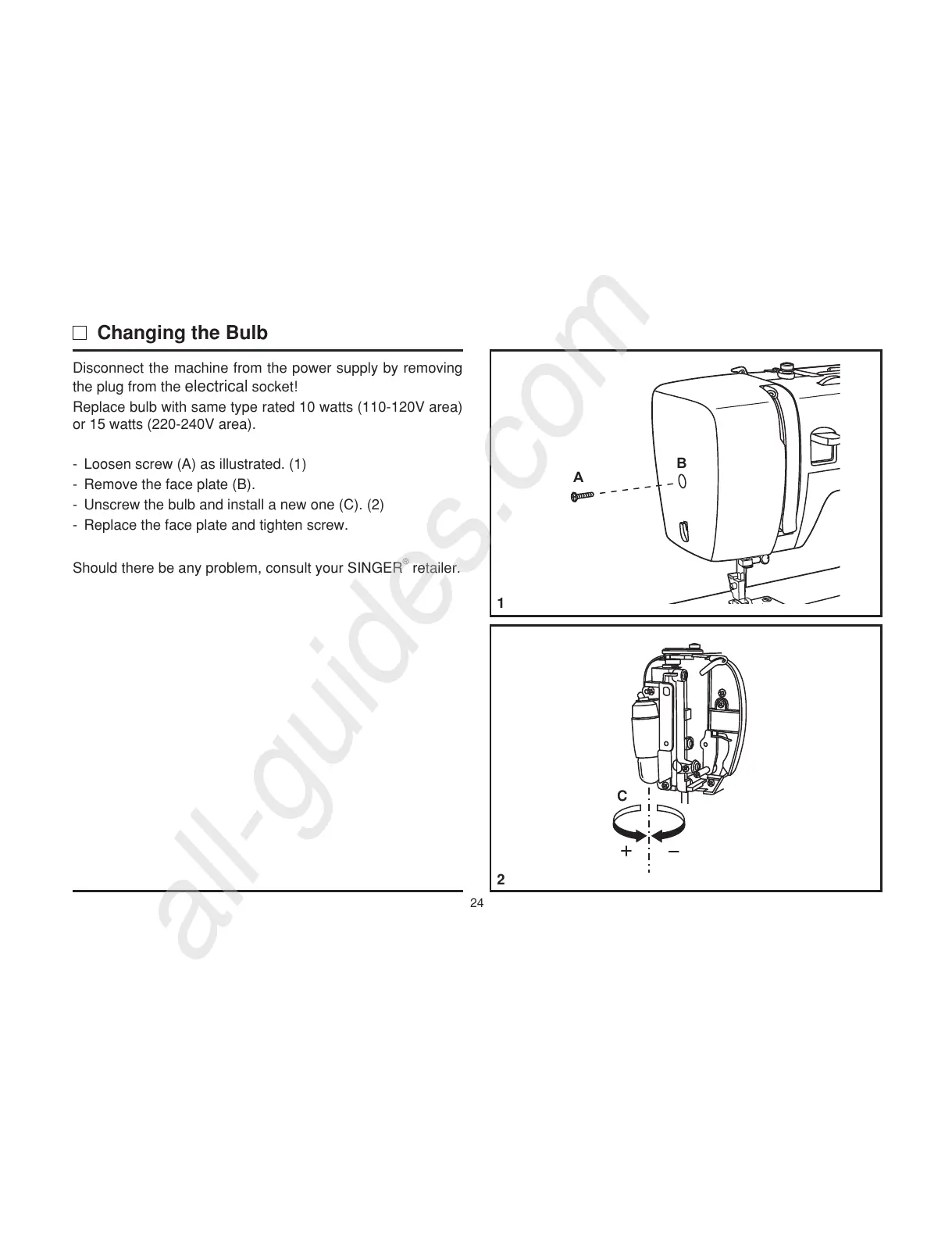

Changing the Bulb
24
Disconnect the machine from the power supply by removing
the plug from the socket!
Replace bulb with same type rated 10 watts (110-120V area)
or 15 watts (220-240V area).
- Loosen screw (A) as illustrated. (1)
- Remove the face plate (B).
- Unscrew the bulb and install a new one (C). (2)
- Replace the face plate and tighten screw.
Should there be any problem, consult your SINGER retailer.
®
electrical
C
1
2
A
B
