6
TAKE-UP
LEVER
~
MOVE
NEEDLE
BAR
TO HIGHEST POINT

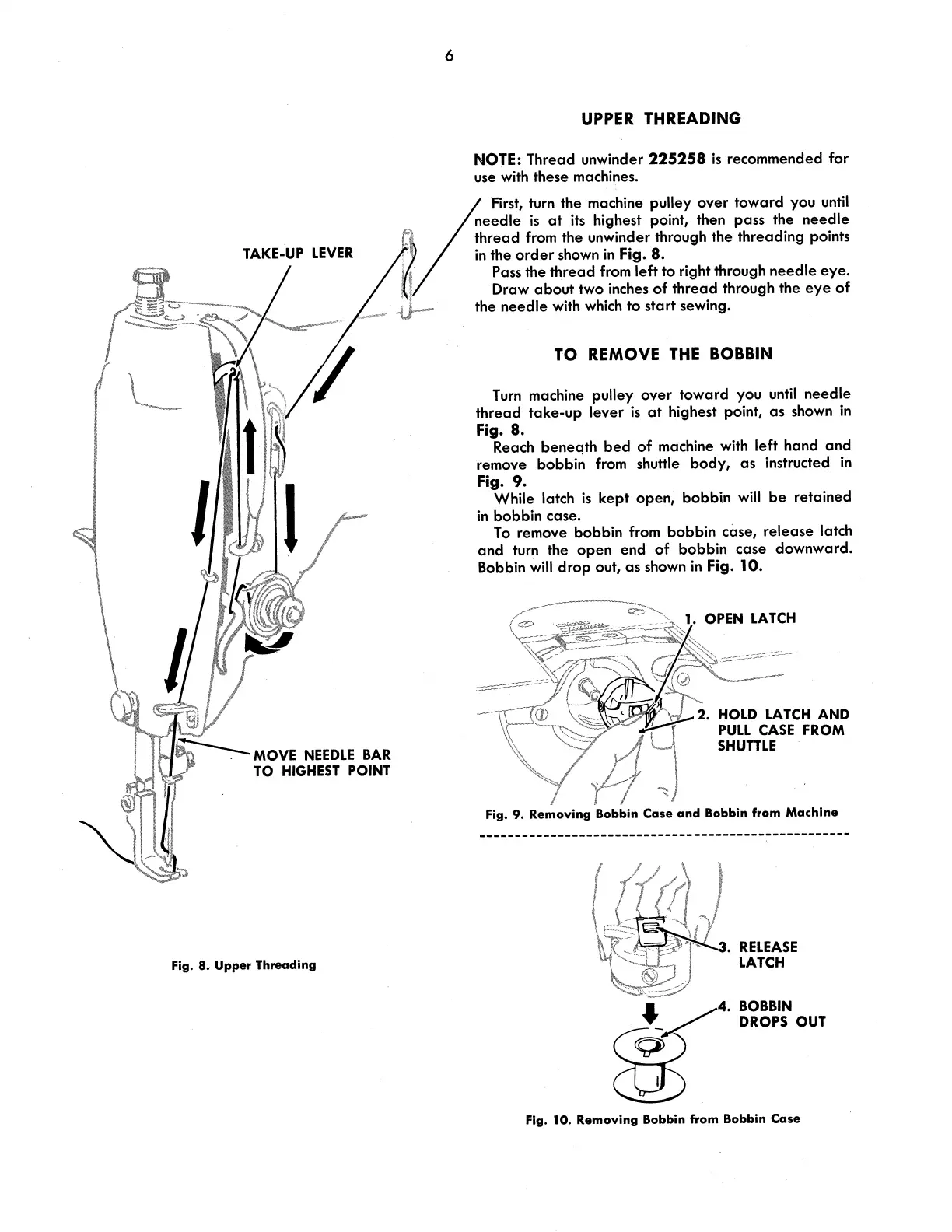

Fig. 8. Upper Threading
UPPER
THREADING
NOJE:
Thread unwinder 225258
is
recommended for
use with these machines.
First,
turn the machine pulley
over
toward you
until
needle
is
at
its highest point, then
pass
the
needle
thread
from the unwinder through the threading points
in
the
order
shown
in
Fig. 8.
Pass the
thread
from left to right through
needle
eye.
Draw
about
two inches
of
thread
through the
eye
of
the
needle
with
which
to
start
sewing.
TO REMOVE
THE
BOBBIN
Turn
machine pulley
over
toward you
until
needle
thread
take-up lever
is
at
highest point,
as
shown
in
Fig.
8.
Reach beneqth
bed
of
machine with left hand
and
remove bobbin from shuttle body,
as
instructed
in
Fig.
9.
While latch
is
kept
open, bobbin
will
be
retained
in
bobbin case.
To
remove bobbin from bobbin case,
release
latch
and
turn the
open
end
of
bobbin
case
downward.
Bobbin
will
drop
out,
as
shown
in
Fig.
10.
""
.
RELEASE
LATCH
■
/4.
BOBBIN
~
DROPS OUT
Fig. 10. Removing Bobbin from Bobbin Case
