32

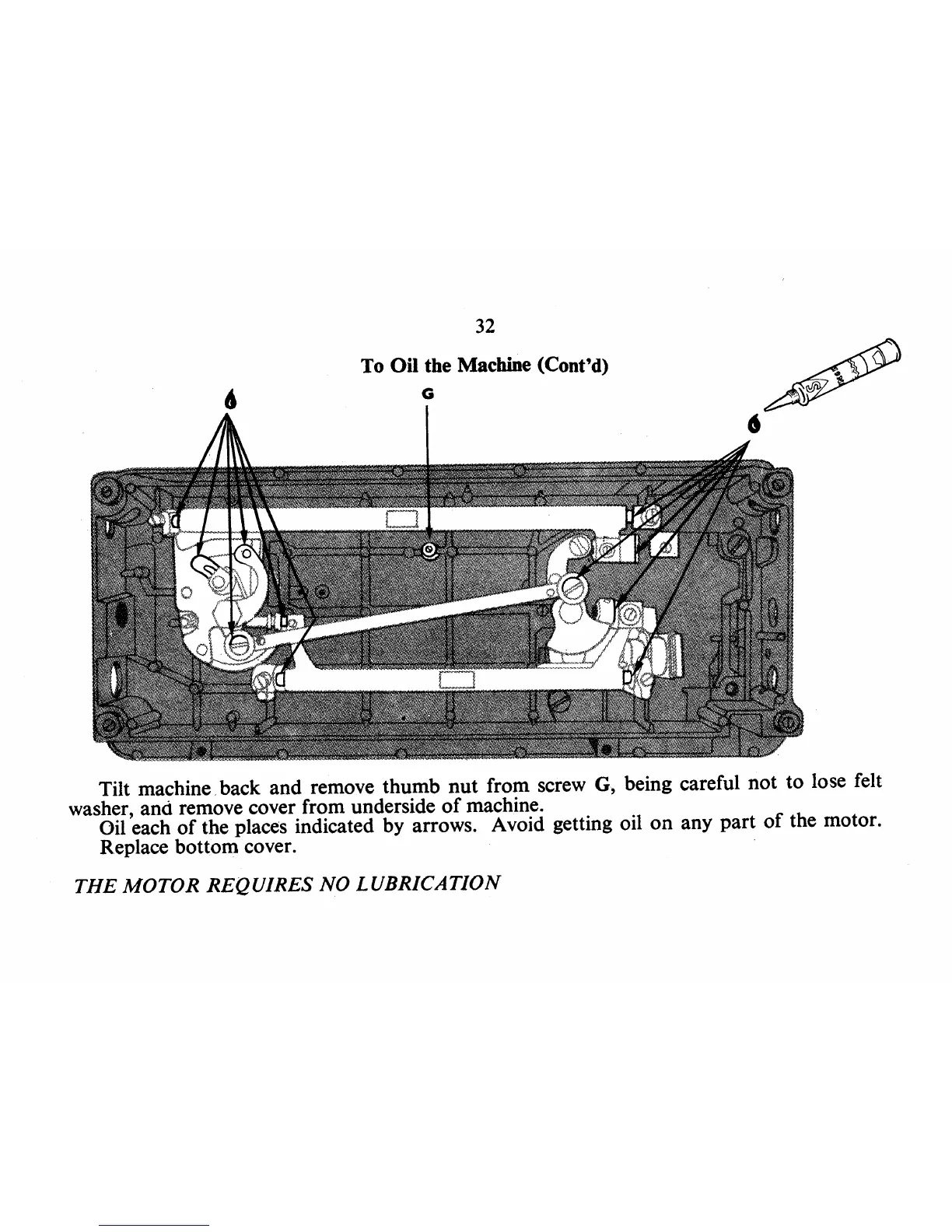

To Oil the Machine (Cont'd)
G
Tilt machine back and remove thumb nut from screw G, being careful not to lose felt
washer, and remove cover from underside of machine.
Oil each of the places indicated by arrows. Avoid getting oil on any part of the motor.
Replace bottom cover.
THE MOTOR REQUIRES NO LUBRICATION
