Singer 40 - Disc Sector Layout Diagram

Timing Considerations
The disc is formatted as shown in Figure 7 -1.
63 73 83 93
61
51
95
90
56
66
98 88 78 68
NOTE: Sector 0-49 are accessed by the upper head on each arm, and sectors
50-99 are accessed by the lower head.

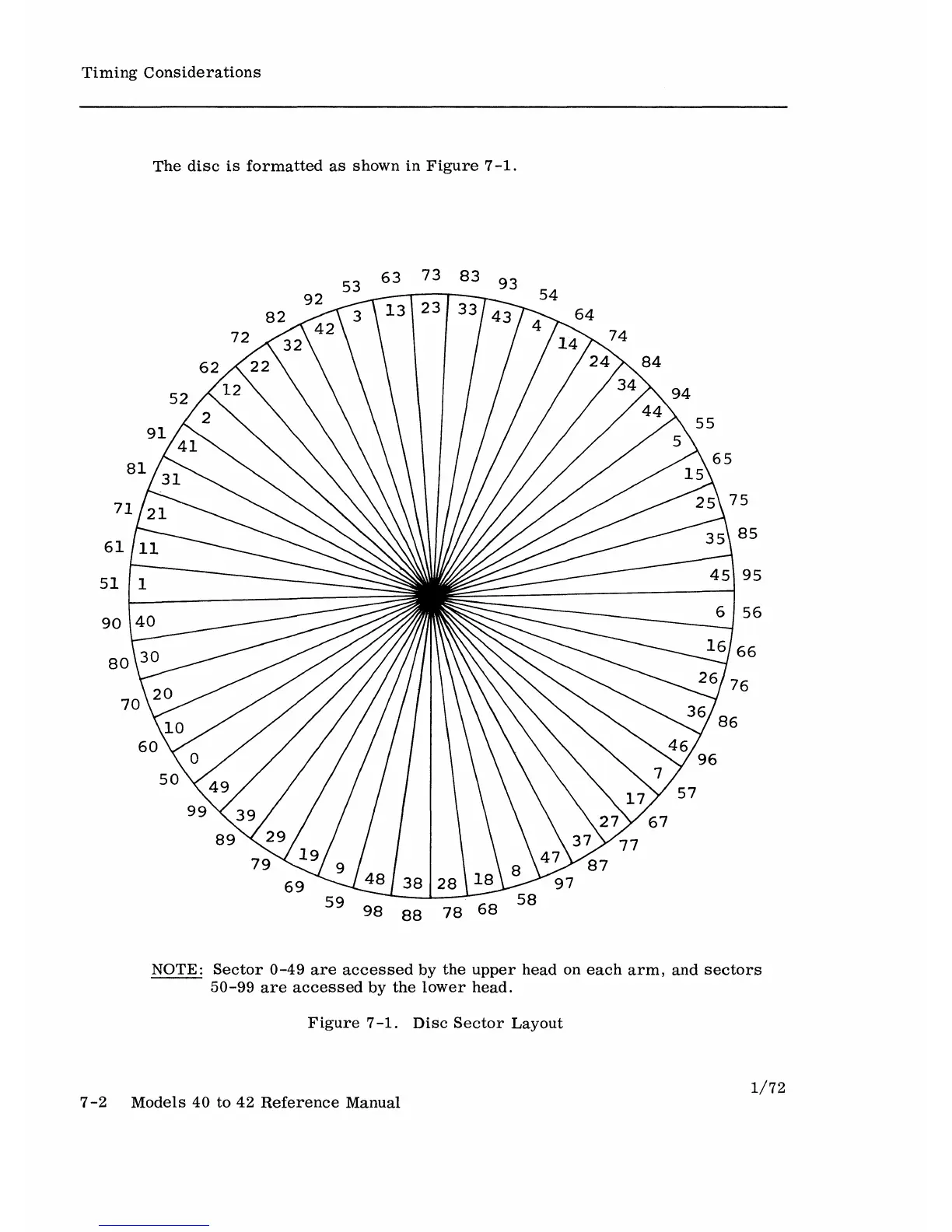

Figure 7-1. Disc Sector Layout
