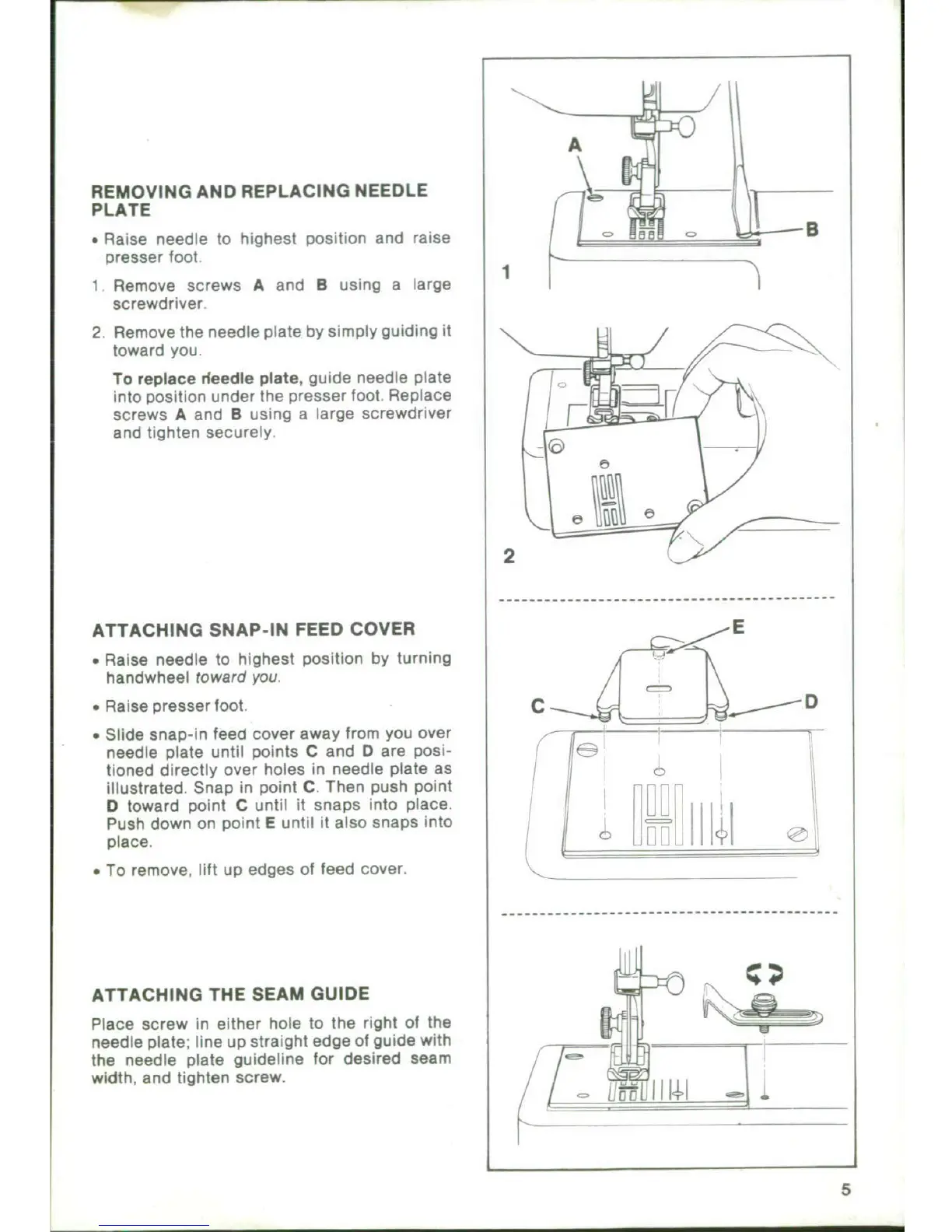

REMOVING
AND
REPLACING
NEEDLE
t
PLATE
* Raise
needle
to highest
position
and raise
a
a
B
presser
foot.
1
Remove screws
A and
B using a
large
screwdriver.
2. Remove
the needle
plate
by simply
guiding
it
toward
you.
To replace
deedle
plate,
guide
needle
plate
into
position
under
the presser
foot.
Replace
-
screws
A and
B using
a
large
screwdriver
and tighten
securely.
2O
ATTACHING
SNAP-IN
FEED
COVER
E
" Raise
needle
to highest
position
by
turning
handwheel
toward
you.
. Raise
presser
foot.
C
" Slide
snap-in feed
cover away
from you over
needle
plate until
points
C and
D are posi-
"(
tioned
directly
over
holes
in
needle
plate
as
illustrated.
Snap
in point
C.
Then
push
point
D toward
point
C until
it
snaps
into
place.
Push
down
on point
E
until it
also
snaps
into
place.
" To remove,
lift
up edges
of
feed
cover.
ATTACHING
THE
SEAM
GUIDE
Place
screw
in either
hole
to
the right
of
the
needle
plate;
line
up straight
edge
of guide
with
the needle
plate
guideline
for
desired
seam
width,
and tighten
screw.
/ /
,-
