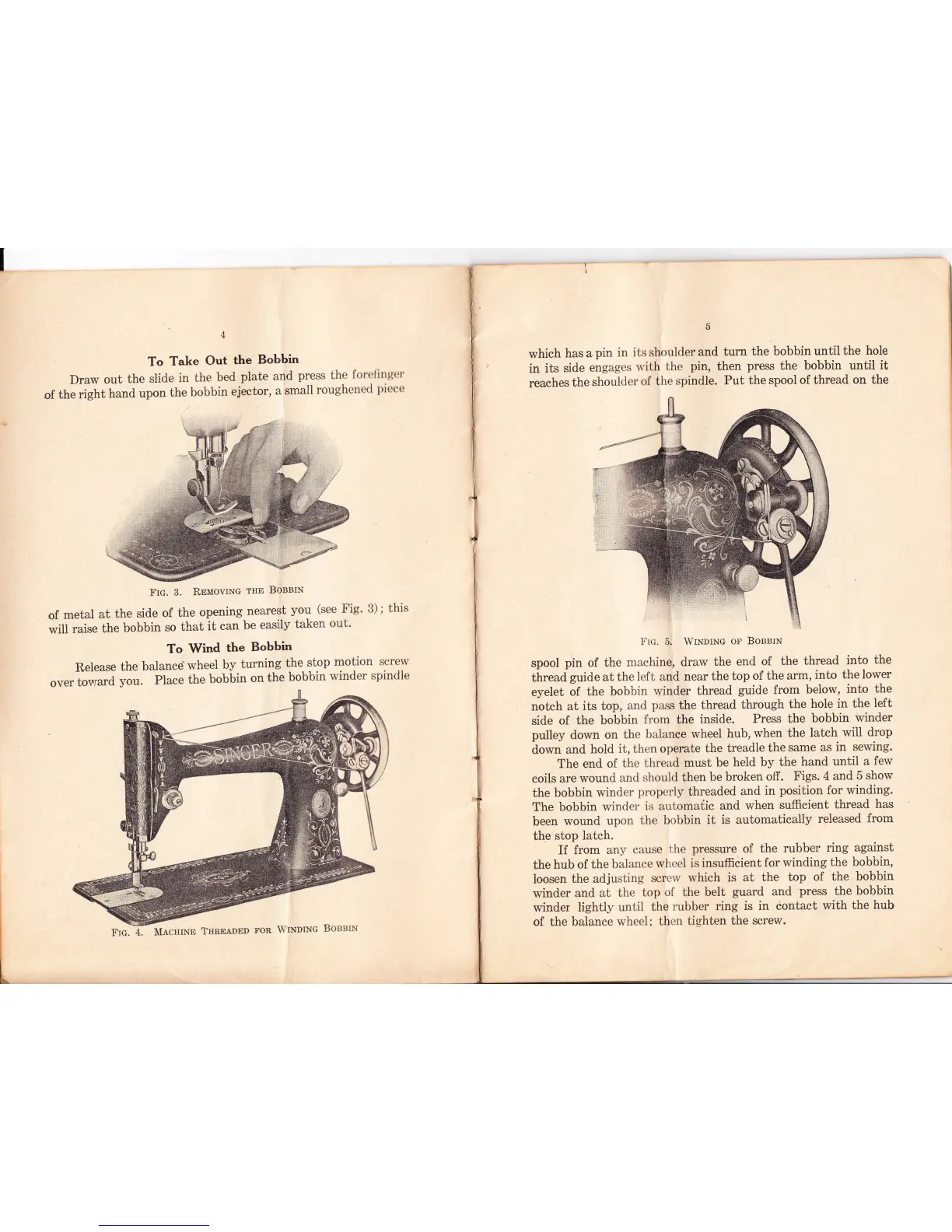

To
Take
Out
the
Bohbin
Draw
out
the
slide
in
the
bed
plate and
press
the
fort'firlg(rl'
of
the
right
hand
upon
the
bobbin
ejector,
dsmall
roughened
Piece
FIG.
3.
RPuovING
THE
Bognn'{
of
me
tal
atthe
side
of
the
opening
nearest
you
(see
Fig.
3)
;
this
will
raise
the
bobbin
so
that
it
can
be
easily
taken
out'
To
Wind
the
Bobbin
Release
the
balancd
wheel
by
turning
the
stop
motion
screw
over
tovrard
you.
place
the
bobbin
on
the
bobbin
winder
spindle
5
which
has
a
pin
in
its
shoulcler
and
turn
the bobbin
until
the
hole
in
its
side
engages
with
the
pin,
then
press
the
bobbin
until
it
reaches
the
shoulder
of the
spindle.
Put
the spool
of thread
on
the
F tc. 5.
WrNPrNc
oF
BoeslN
spool
pin
of
the
machine, draw
the
end
of
the
thread
into
the
thread
guide
at
the left
and
near
the
top
of
the arm,
into
the lower
eyelet
of
the bobbin
winder
thread
guide
from beiow,
into
the
notch
at
its top,
and
pass
the
thread
through
the
hole
in
the
left
side
of
the
bobbin
from the
inside.
Press
the
bobbin
winder
pulley
down
on
the
balance
wheel
hub,
when
the latch
will
drop
do*rr
and
hold
it,
then
operate
the
treadle
the
same
as
in
sewing.
The
end.
of
the
thread
must
be
held by
the
hand
until
a
few
coils
are
wounrj
and
should
then
be
broken
off.
Figs.
4
and
5
show
the bobbin
winder
properly
threaded
and
in
position
for
winding.
The
bobbin
winder
is automatic
and
when
sufficient
thread
has
been
wound
upon
the bobbin
it
is automatically
released
from
the
stop
latch.
If
from
any
cause
the
pressure
of
the
rubber
ring
against
the
hub
of the
balance
wheel
is
insufficient
for
winding
the
bobbin,
loosen
the
adjusting
screw
which is
at the
top
of
the
bobbin
winder
and
at
the
top
of
the
belt
guard
and
press
the
bobbin
winder
lightly
until
the
rubber
ring
is in contact
with
the
hub
of
the
balance
wheel:
then
tiehten
the
screw.
Frc.
4. MacnrNP
TnnPnDED
FoR
