SINOMATIC SL600AC - Installation; Installation Drawing

4
Maximum weight of gate
600Kg
Remote control distance
≥30m
Remote control mode
Single button mode
/ Three button mode
Limit switch
Spring limit switch
Magnetic limit switch
Noise
≤58dB
Working duty
S2, 15min
Recording of up remote controls
25
Frequency
433.92 MHz
Working temperature
-20°C ~ +70°C
Package weight
9.4Kg
4. Installation
SL600AC sliding gate opener is applicable to gate weight less than 600kg, and length of the sliding
gate less than 12m. The drive mode adopts the rack and gear transmission. This gate opener must
be installed inside the enclosure or yard for protection.

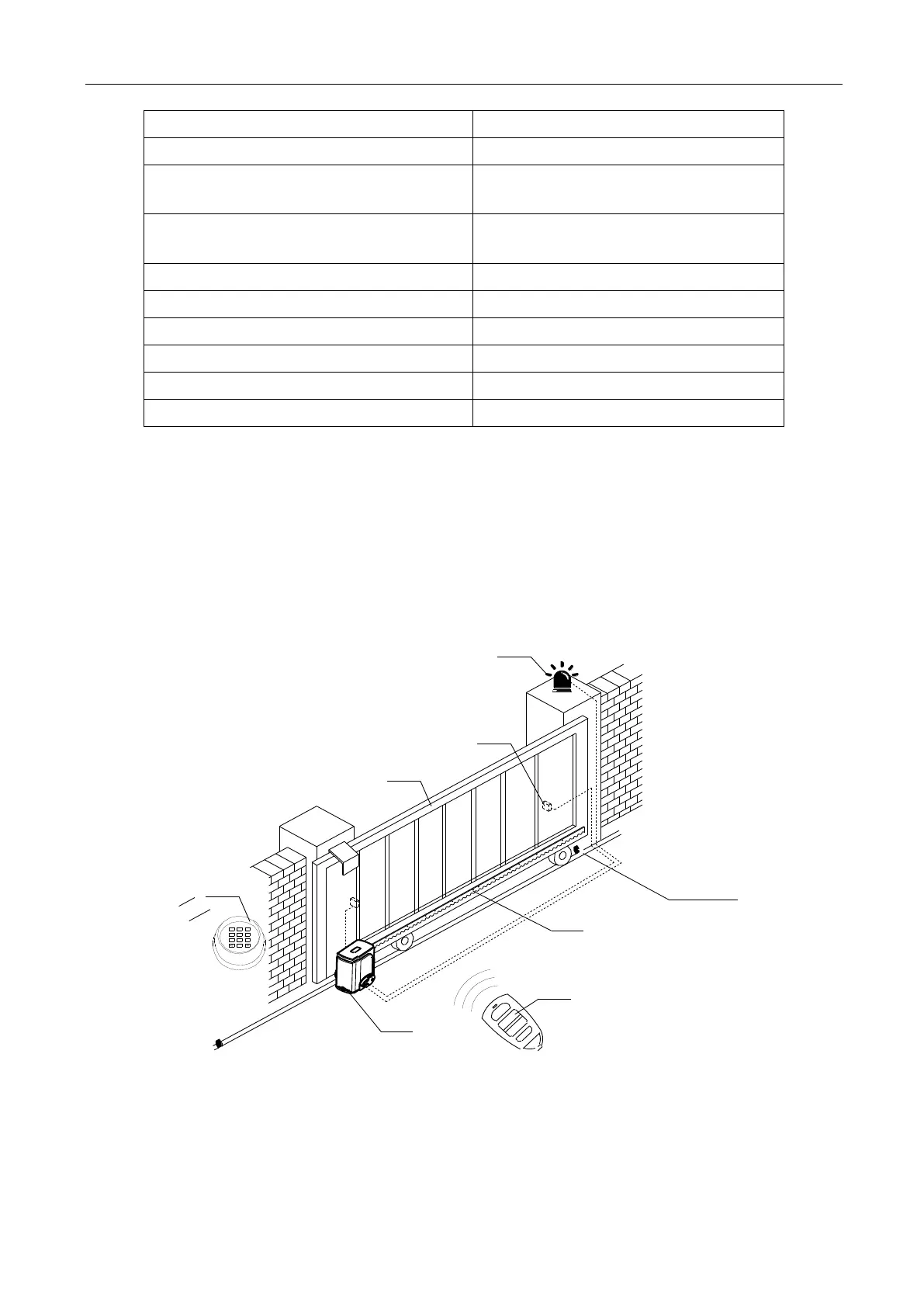

4.1 Installation drawing
⑤
④
③
②
0
8
5 6
97
4
1 2 3
⑧
①
⑦
⑥
Figure 1
① Gate opener; ② Wireless keypad (optional); ③ Gate; ④ Infrared sensor (optional);
⑤ Alarm lamp (optional); ⑥ Safety stop block; ⑦ Gear rack; ⑧ Remote control;
