4.2 Size of main engine and accessories

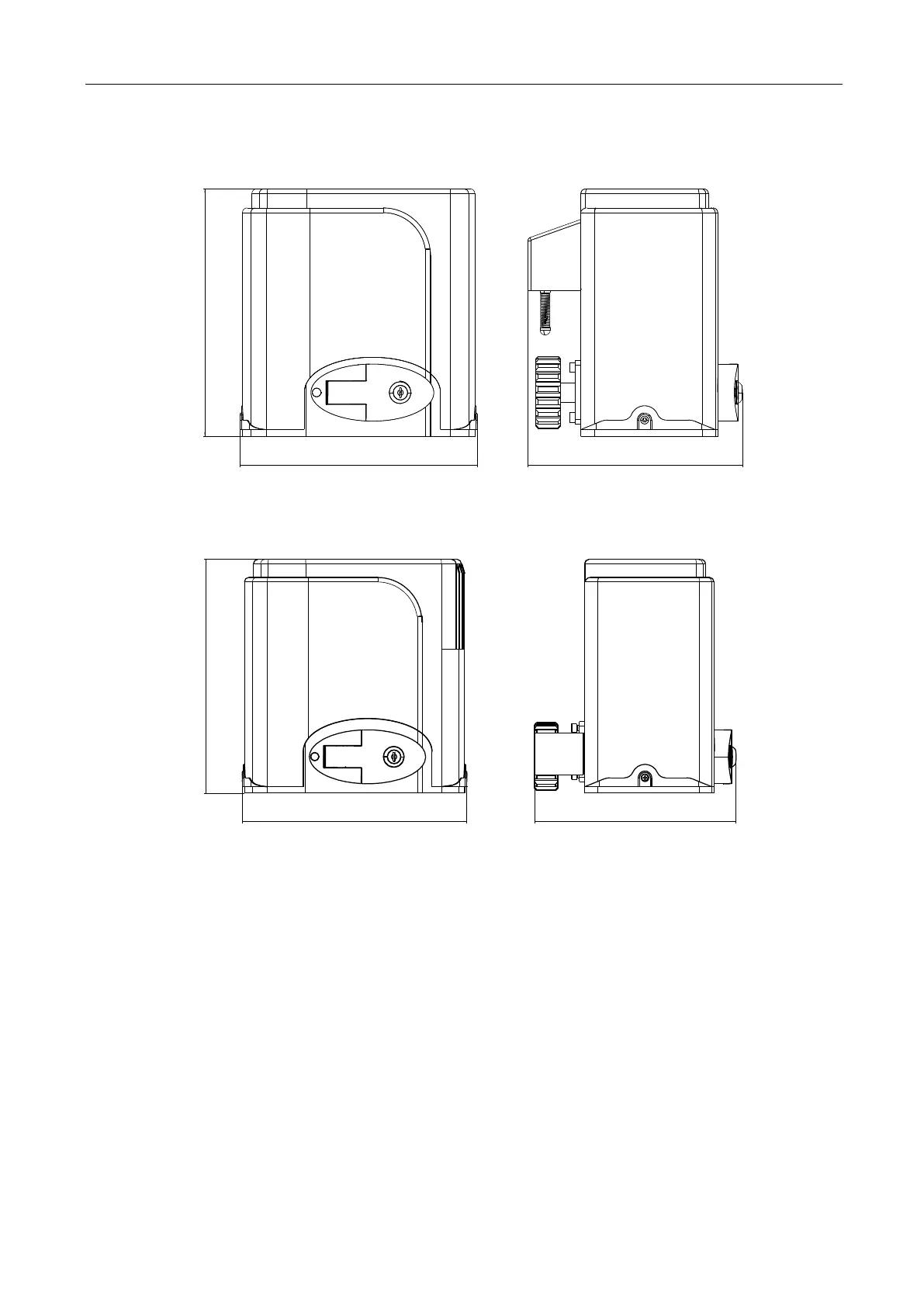

4.2.1 Size of main engine
251
260
227
Figure 2 (1) Spring Limit Switch
260
251
225
Figure 2 (2) Magnetic Limit Switch
4.2.2 Size of mounting plate
