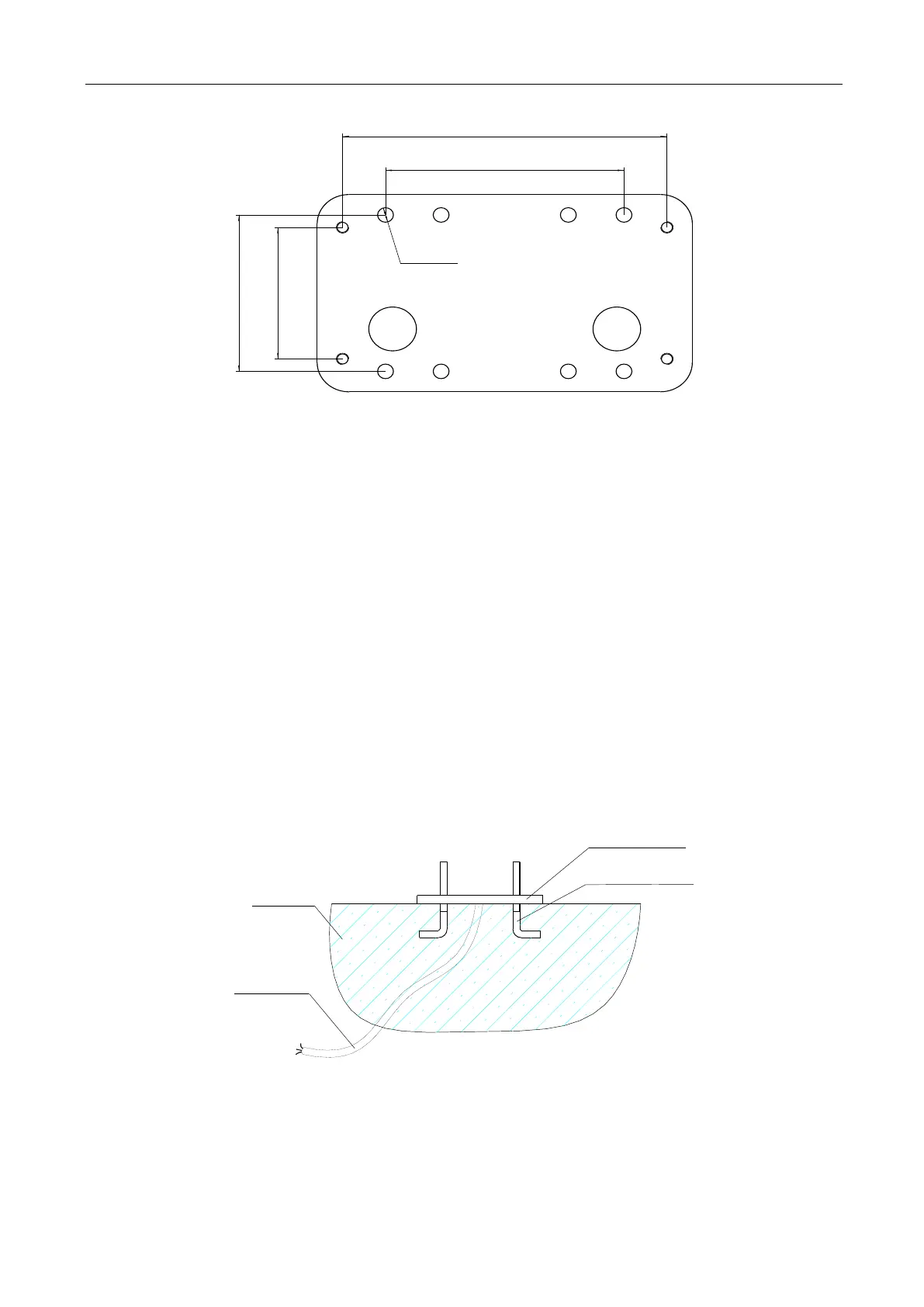

107
150
204±0.3
90±0.3
8× 10
Φ
Figure 3
4.3 Installation procedures
4.3.1 Preparation work before installation
Please make sure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate
can be manually moved smoothly before installing the gate opener.
Cable installation
In order to guarantee the normal operation of the gate opener and protect the cables from damages,
please bury the motor & power cable and controlling cable separately with two PVC tubes.
Concrete pedestal
Please precast a concrete pedestal with the size can be 400mm x 250mm, depth be 200mm in
advance, so as to firmly install SL600AC gate opener. Please make sure the distance
between the gate and gate opener is appropriate before casting the pedestal.
Embedded screws
Concrete
Power line
Mounting plate
Foundation bolt
Figure 4
4.3.2 Main engine installation
a) Dismantle the plastic housing on the main engine before installation and keep relevant fasteners
To Next Page
