Aurora Explorers Edition Accessory Manual 5

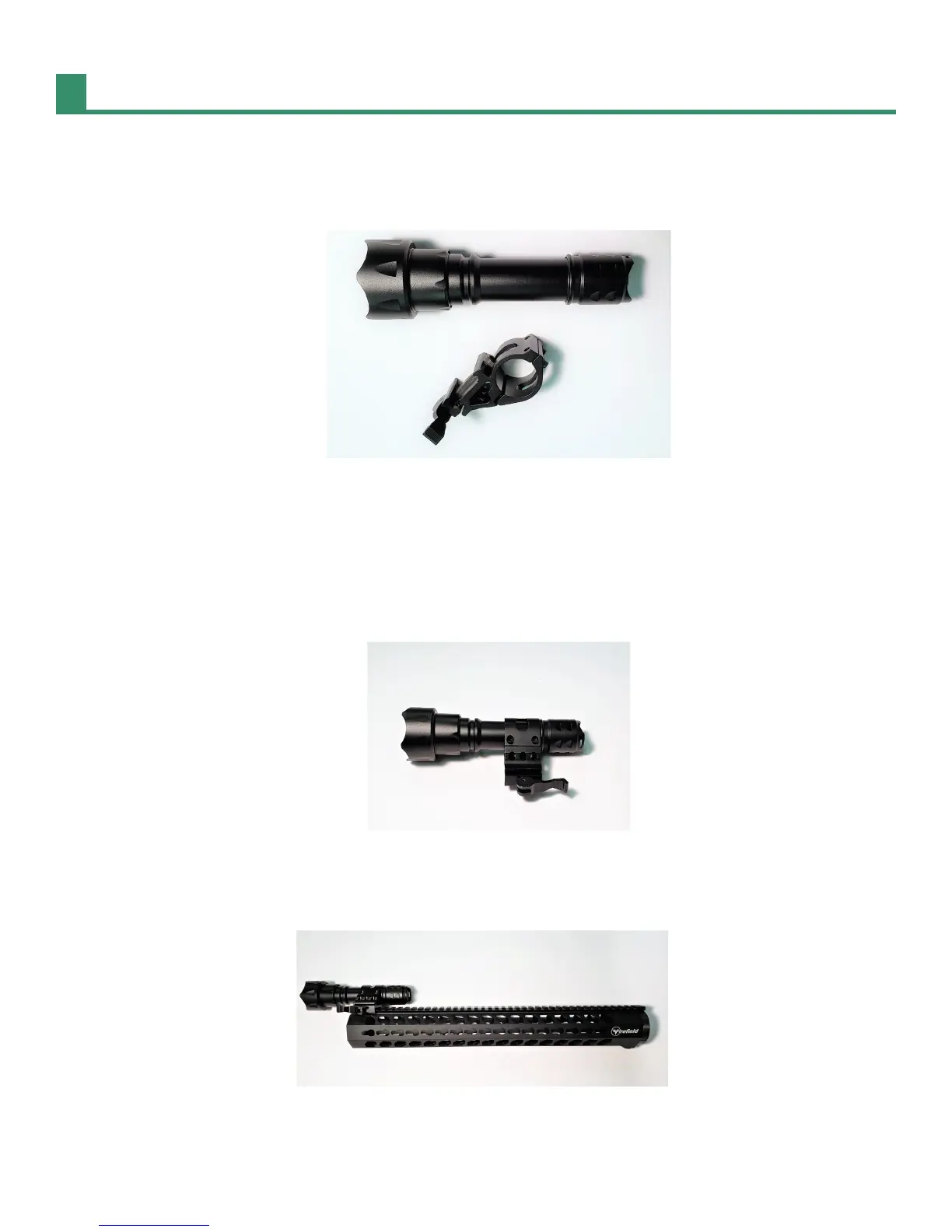

How to Attach the Picatinny Rail Mount to the IR 940nm Illuminator
The Picatinny rail mount is designed to attach the Illuminator to your rie..
1. Loosen the four screws on the mount using the attached Allen wrench.
2. Remove the battery cap on the Illuminator. Place the battery with the positive (+) end in.
3. Slide the mount onto the Illuminator from the battery end.
4. Replace the battery cap and retighten the four screws.
5. Place the mounted Illuminator anywhere you’d like on the rail and close the quick-release latch.
