Sioux Tools SDR10P - Page 22

Form ZCE772A 22 Date 2011December7/B
24. 69017 O-Ring
25. SPSDR-9 ReversingManifold(IncludesFigures24,26)
26. 04215 O-Ring
27. SPSDR-2 PistolReversingHousing(Includes
Figures24-26)
28. SDR-16 ReversingShuttle
29. SDR-12 ReversingMechanismScrew
30. SPSDR-28 Grip(IncludesGripTape)
31. 30610 RollPin5/64x3/4in
32. 21542 RetainingRing
33. 14311 O-Ring
34. SDR-23 TriggerSleeve
35. SDR-200 Trigger
36. 04046 SilencerPad(2)*
37.IM3100-22 TipperValveSeat
38. SDR-20 Tipper
39. SDR-13 TriggerSpring
40. 69007 O-Ring
41. SDR-35 ExhaustCap
42. 66244R InletAdapter
Not Shown:
 SPSDR-7AR 7ToothRotorMotorAssembly(2000&4000RPM)
(IncludesFigures15-23)
 SPSDR-8AR 10ToothRotorMotorAssembly(2500RPM)
(IncludesFigures15-23)
 SPSDR-2A ReversingHousingAssembly
(IncludesFigures24-42)
 SPSDR-61A GearCarrierAssembly(2000RPM)(3/8"thread)
(IncludesFigures5-9)
 SPSDR-62A GearCarrierAssembly(2500RPM)(3/8"thread)
(IncludesFigures5-9)
 SPSDR-63A GearCarrierAssembly(4000RPM)(3/8"thread)
(IncludesFigures5-9)
 SPSDR-64A GearCarrierAssembly(2000RPM)(1/2"thread)
(IncludesFigures5-9)
 30202 ChuckKey1/4"
 30002 ChuckKey3/8"
 30429 ChuckKey1/2"

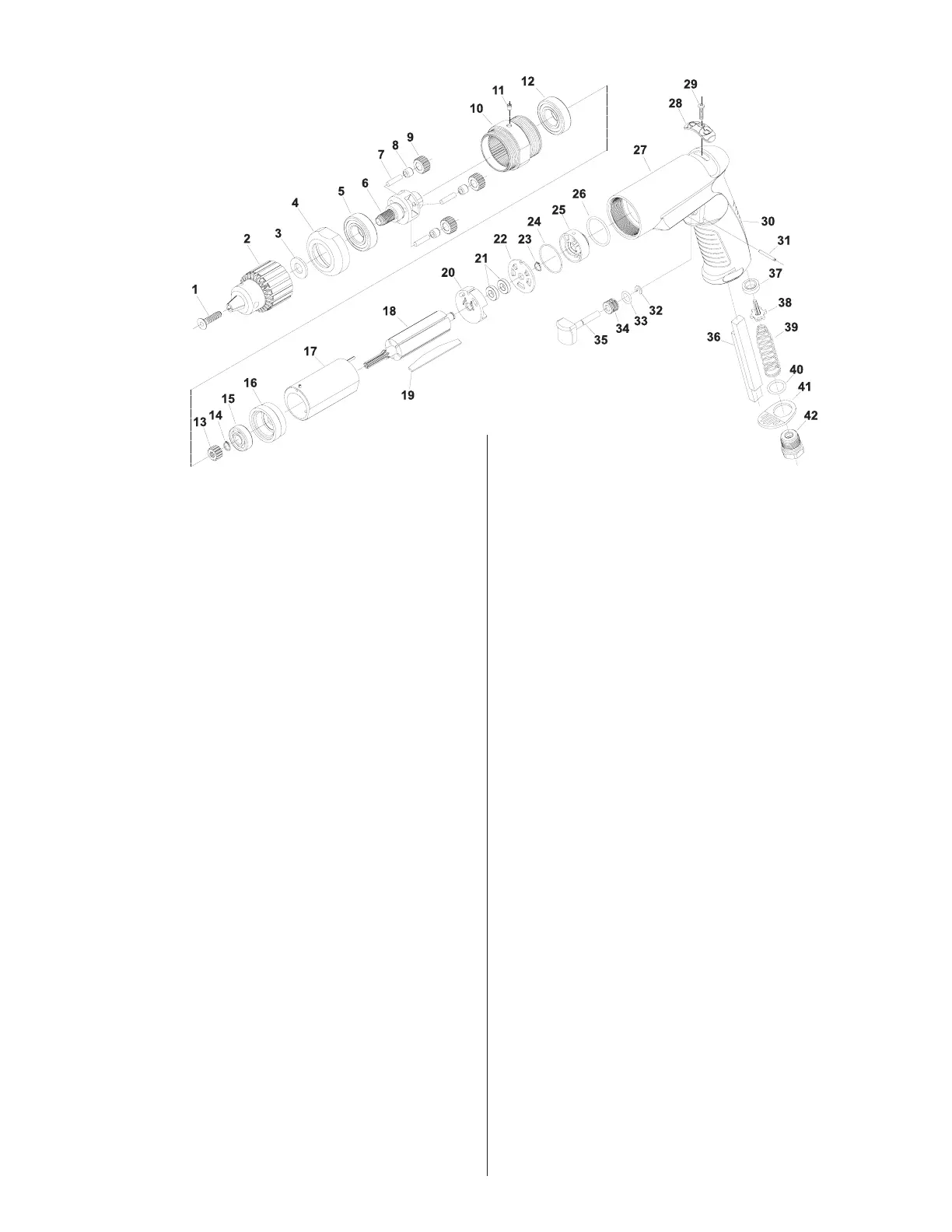

PARTS LIST FOR SDR10P SERIES DRILLS
REVERSING SINGLE REDUCTION
SERIAL “B”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. 57250R ChuckScrew
2. 21019B 1/4"Chuck(formodelnumbersendingwith2)
 21133B 3/8"Chuck(formodelnumbersendingwith3)
 PDR3000-2 3/8"KeylessChuck
(for model numbers ending with RK3)
 74222 1/2"Chuck(formodelnumbersendingwith4)
3. ME5A72 Spacer(formodelnumbersendingwith2or3)
 35798 Spacer(formodelnumbersendingwith4)
4. SDR-43 GearCaseCap
5. 10265 BallBearing
6. SDR-61 GearCarrier(2000RPM)(3/8"thread)
 SDR-62 GearCarrier(2500RPM)(3/8"thread)
 SDR-63 GearCarrier(4000RPM)(3/8"thread)
 SDR-64 GearCarrier(2000RPM)(1/2"thread)
7. SDR-24 Pin(3)*(2000&2500RPM)
 30062 Pin(3)*(4000RPM)
8. 10028B NeedleBearing(3)*(2000&2500RPM)
 10040 NeedleBearing(3)*(4000RPM)
9. SDR-44 PlanetaryGear(3)*(2000RPM)
 SDR-45 PlanetaryGear(3)*(2500RPM)
 SDR-46 PlanetaryGear(3)*(4000RPM)
10. SDR-40 SingleReductionGearCase(IncludesFig.11)
11. 30375 GreaseFitting
12.ME11A33A BallBearing
13. SDR-47 SunGear(4000RPMonly)
14. 21491 RetainingRing(4000RPMonly)
15. 10220 BallBearing
16. SDR-80 FrontEndPlate
17. SP74130 Cylinder,Reversing
18. SDR-7 Rotor(7tooth)(2000&4000RPM)
 SDR-8 Rotor(10tooth)(2500RPM)
19. SP74048 VaneSet
20. SDR-11 RearEndPlate
21. SDR-26 BallBearing(2)*
22. SDR-10 ReversingPlate
23. 21491 RetainingRing
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
