Sioux Tools SDR10P - Page 23

Form ZCE772A 23 Date 2011December7/B

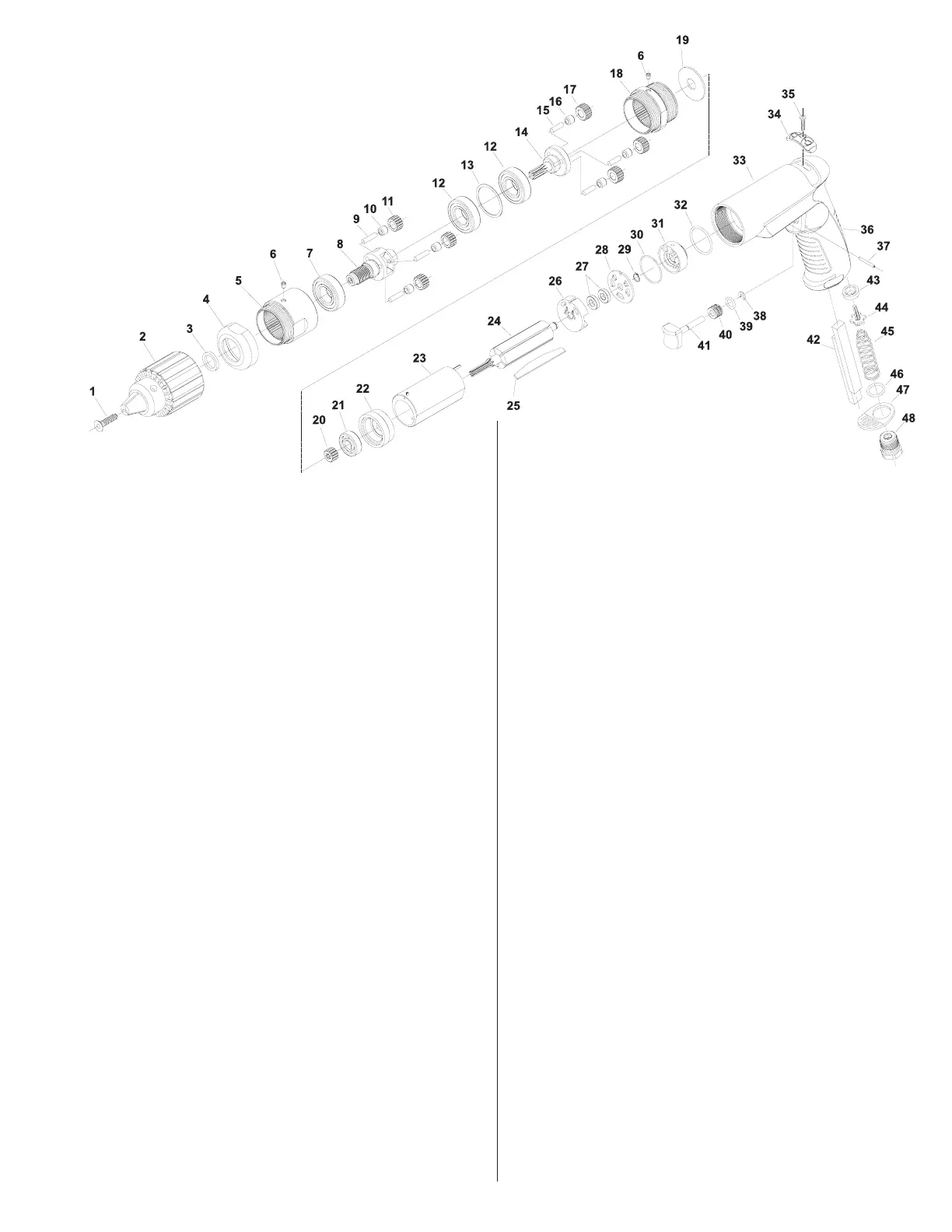

PARTS LIST FOR SDR10P SERIES DRILLS
REVERSING DOUBLE REDUCTION
SERIAL “B”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. 57250R ChuckScrew
2. 21131 3/8"Chuck(formodelnumbersendingwith3)
 74222 1/2"Chuck(formodelnumbersendingwith4)
 PDR5000-2 1/2"KeylessChuck
(formodelnumbersendingwithRK4)
3. 35798 Washer
4. SDR-43 GearCaseCap
5. SDR-42 DoubleReductionGearCase(IncludesFigure6)
6. 30375 GreaseFitting(2)*
7. 10265 BallBearing
8. SDR-65 GearCarrier(1/2"thread)(300,700&500RPM)
 SDR-68 GearCarrier(1/2"thread)(1200RPM)
9. SDR-24 Pin(3)*(300,700&500RPM)
 30062 Pin(3)*(1200RPM)
10. 10028FC NeedleBearing(3)*(300,700&500RPM)
 10040 NeedleBearing(3)*(1200RPM)
11. SDR-45 PlanetaryGear(3)*(300,700&500RPM)
 SDR-46 PlanetaryGear(3)*(1200RPM)
12.ME11A33A BallBearing(2)*
13. SDR-27 Spacer
14. SDR-36 CantileveredGearCarrier(700RPM)
 SDR-37 CantileveredGearCarrier(500RPM)
 SDR-38 CantileveredGearCarrier(300RPM)
 SDR-39 CantileveredGearCarrier(1200RPM)
15. SDR-24 Pin(3)*(300&500RPM)
 30062 Pin(3)*(700&1200RPM)
16. 10028B NeedleBearing(3)*(300&500RPM)
 10040 NeedleBearing(3)*(700&1200RPM)
17. SDR-44 PlanetaryGear(3)*(300RPM)
 SDR-45 PlanetaryGear(3)*(500RPM)
 SDR-46 PlanetaryGear(3)*(700&1200RPM)
18. SDR-41 FirstReductionGearCase(IncludesFigure6)
19. SDR-29 WearPlate
20. SDR-47 SunGear(700&1200RPM)
21. 10220 BallBearing
22. SDR-80 FrontEndPlate
23. SP74130 Cylinder,Reversing
24. SDR-7 Rotor(7tooth)(300,700&1200RPM)
 SDR-8 Rotor(10tooth)(500RPM)
25. SP74048 VaneSet
26. SDR-11 RearEndPlate
27. SDR-26 BallBearing(2)*
28. SDR-10 ReversingPlate
29. 21491 RetainingRing
30. 69017 O-Ring
31. SPSDR-9 ReversingManifold(IncludesFigures30,32)
32. 04215 O-Ring
33. SPSDR-2 PistolReversingHousing(IncludesFigures30-32)
34. SDR-16 ReversingShuttle
35. SDR-12 ReversingMechanismScrew
36. SPSDR-28 Grip(IncludesGripTape)
37. 30610 RollPin5/64x3/4in
38. 21542 RetainingRing
39. 14311 O-Ring
40. SDR-23 TriggerSleeve
41. SDR-200 Trigger
42. 04046 SilencerPad(2)*
43.IM3100-22 TipperValveSeat
44. SDR-20 Tipper
45. SDR-13 TriggerSpring
46. 69007 O-Ring
47. SDR-35 ExhaustCap
48. 66244R InletAdapter
Not Shown:
 SPSDR-7AR 7ToothRotor1HPMotorAssembly
(300,700&1200RPM)(IncludesFigures21-29)
 SPSDR-8AR 10ToothRotorMotorAssembly
(500RPM)(IncludesFigures21-29)
 SPSDR-2A ReversingHousingAssembly
(IncludesFigures30-48)
 SPSDR-14A SupportHandleAssembly
 SPSDR-65A GearCarrierAssembly(1/2"thread)
(300,700&500RPM)(IncludesFigures7-11)
 SPSDR-68A GearCarrierAssembly(1/2"thread)
(1200RPM)(IncludesFigures7-11)
 SPSDR-36A CantileveredGearCarrierAssembly(700RPM)
(IncludesFigures12-17)
 SPSDR-37A CantileveredGearCarrierAssembly
(500RPM)(IncludesFigures12-17)
 SPSDR-38A CantileveredGearCarrierAssembly
(300RPM)(IncludesFigures12-17)
 SPSDR-39A CantileveredGearCarrierAssembly
(1200RPM)(IncludesFigures12-17)
 30002 ChuckKey3/8"
 30429 ChuckKey1/2"
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
