Form ZCE772A 25 Date 2011December7/B

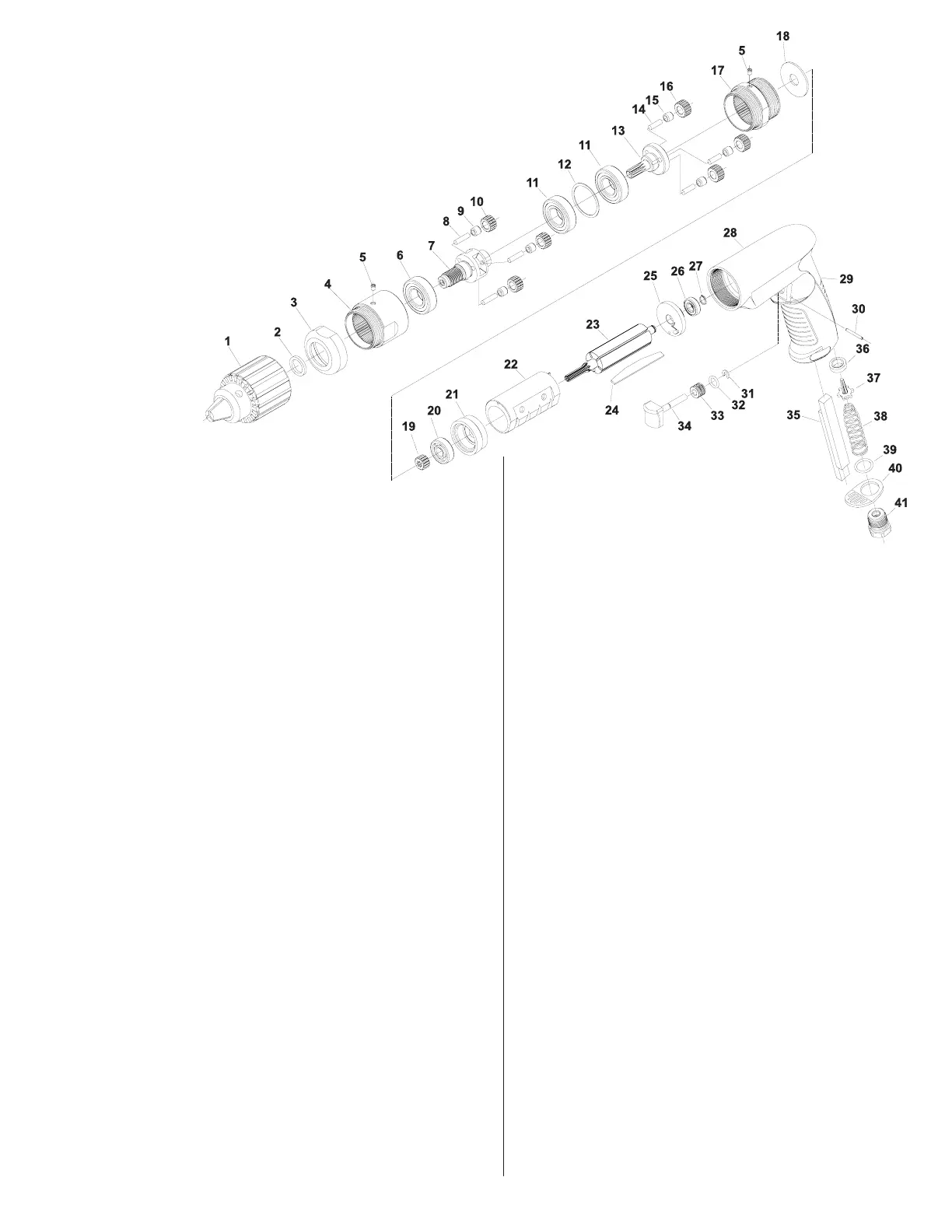

PARTS LIST FOR SDR10P SERIES DRILLS
NON-REVERSING DOUBLE REDUCTION
SERIAL “B”
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
1. 21131 3/8"Chuck(formodelnumbersendingwith3)
 74222 1/2"Chuck(formodelnumbersendingwith4)
2. 35798 Spacer
3. SDR-43 GearCaseCap
4. SDR-42 DoubleReductionGearCase(IncludesFigure5)
5. 30375 GreaseFitting(2)*
6. 10265 BallBearing
7. SDR-65 GearCarrier(1/2”thread)(400,700&1200RPM)
 SDR-68 GearCarrier(1/2"thread)(1600RPM)
8. SDR-24 Pin(3)*(400,700&1200RPM)
 30062 Pin(3)*(1600RPM)
9. 10028FC NeedleBearing(3)*(400,700&1200RPM)
 10040 NeedleBearing(3)*(1600RPM)
10. SDR-45 PlanetaryGear(3)*(400,700&1200RPM)
 SDR-46 PlanetaryGear(3)*(1600RPM)
11.ME11A33A BallBearing(2)*
12. SDR-27 Spacer
13. SDR-36 CantileveredGearCarrier(1200RPM)
 SDR-37 CantileveredGearCarrier(700RPM)
 SDR-38 CantileveredGearCarrier(400RPM)
 SDR-39 CantileveredGearCarrier(1600RPM)
14. SDR-24 Pin(3)*(400&700RPM)
 30062 Pin(3)*(1200&1600RPM)
15. 10028B NeedleBearing(3)*(400&700RPM)
 10040 NeedleBearing(3)*(1200&1600RPM)
16. SDR-44 PlanetaryGear(3)*(500RPM)
 SDR-45 PlanetaryGear(3)*(700RPM)
 SDR-46 PlanetaryGear(3)*(1200&1600RPM)
17. SDR-41 SingleReductionGearCase(IncludesFigure5)
18. SDR-29 WearPlate
19. SDR-47 SunGear(1200&1600RPM)
20. 10220 BallBearing
21. SDR-80 FrontEndPlate
22. 74030 Cylinder,Non-Reversing
23. SDR-7 Rotor(7tooth)(400,1200&1600RPM)
 SDR-8 Rotor(10tooth)(700RPM)
24. SP74048 VaneSet
25. 74023 RearEndPlate
26. 10253 BallBearing
27. 21491 RetainingRing
28. SDR-1 PistolNon-ReversingHousing
29. SPSDR-28 Grip(IncludesGripTape)
30. 30610 RollPin5/64x3/4in
31. 21542 RetainingRing
32. 14311 O-Ring
33. SDR-23 TriggerSleeve
34. SDR-200 Trigger
35. 04046 SilencerPad(2)*
36.IM3100-22 TipperValveSeat
37. SDR-20 Tipper
38. SDR-13 TriggerSpring
39. 69007 O-Ring
40. SDR-35 ExhaustCap
41. 66244R InletAdapter
Not Shown:
 SPSDR-7A 7ToothRotor1HPMotorAssembly
(400,1200&1600RPM)
(IncludesFigures20-27)
 SPSDR-8A 10ToothRotorMotorAssembly(700RPM)
(IncludesFigures20-27)
 SPSDR-1A 1HPNon-ReversingHousingAssembly
(IncludesFigures28-41)
 SPSDR-65A GearCarrierAssembly(1/2"thread)
(400,700&1200RPM)(IncludesFigures6-10)
 SPSDR-68A GearCarrierAssembly(1/2"thread)
(1600RPM)(IncludesFigures6-10)
 SPSDR-36A CantileveredGearCarrierAssembly
(1200RPM)(IncludesFigures11-16)
 SPSDR-37A CantileveredGearCarrierAssembly
(700RPM)(IncludesFigures11-16)
 SPSDR-38A CantileveredGearCarrierAssembly
(400RPM)(IncludesFigures11-16)
 SPSDR-39A CantileveredGearCarrierAssembly
(1600RPM)(IncludesFigures11-16)
 SPSDR-14A SupportHandleAssembly
 30002 ChuckKey3/8”
 30429 ChuckKey1/2”
