Sioux Tools SDR10P - Page 26

Form ZCE772A 26 Date 2011December7/B

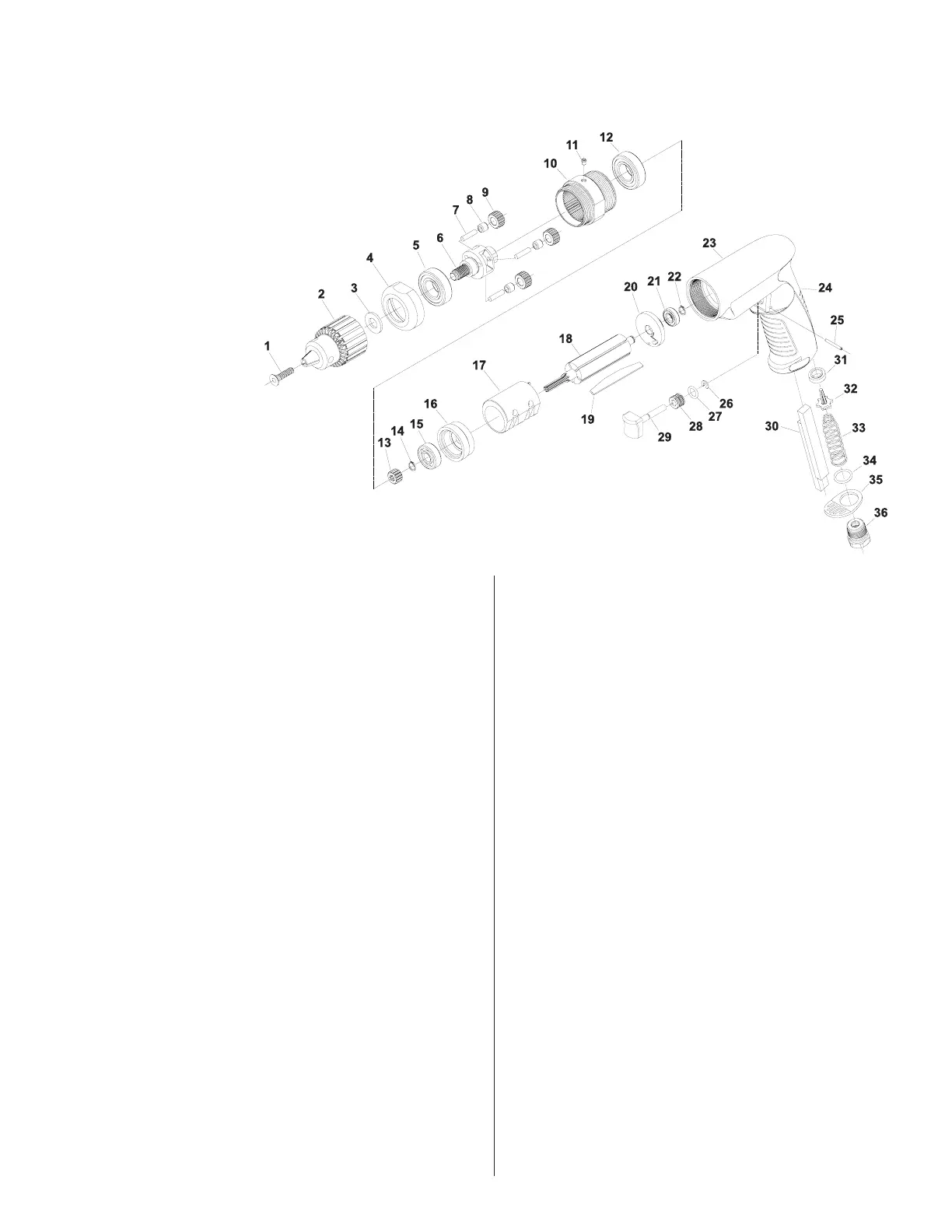

PARTS LIST FOR SDR6P SERIES DRILLS
NON-REVERSING SINGLE REDUCTION
SERIAL “B”
Fig. Part
No. No. Description
Fig. Part
No. No. Description
1. 57250R ChuckScrew(formodelnumbersendingwith4)
2. 21019B 1/4"Chuck(formodelnumbersendingwith2)
 21133B 3/8"Chuck(formodelnumbersendingwith3)
 74222 1/2"Chuck(formodelnumbersendingwith4)
3. ME5A72 Spacer(formodelnumbersending
with2or3)
 35798 Spacer(formodelnumbersendingwith4)
4. SDR-43 GearCaseCap
5. 10265 BallBearing
6. SDR-60 GearCarrier(3/8"thread)(2600RPM)
 SDR-62 GearCarrier(3/8"thread)(4000RPM)
 SDR-63 GearCarrier(3/8"thread)(6000RPM)
 SDR-64 GearCarrier(1/2"thread)(2600RPM)
7. SDR-24 Pin(3)*(2600&4000RPM)
 30062 Pin(3)*(6000RPM)
8. 10028B NeedleBearing(3)*(2600&4000RPM)
 10040 NeedleBearing(3)*(6000RPM)
9. SDR-44 PlanetaryGear(3)*(2600RPM)
 SDR-45 PlanetaryGear(3)*(4000RPM)
 SDR-46 PlanetaryGear(3)*(6000RPM)
10. SDR-40 SingleReductionGearCase(IncludesFig.11)
11. 30375 GreaseFitting
12.ME11A33A BallBearing
13. SDR-47 SunGear(6000RPMonly)
14. 21491 RetainingRing(6000RPMonly)
15. 10220 BallBearing
16. SDR-80 FrontEndPlate
17. 74034 Cylinder,Non-Reversing
18. SDR-77 Rotor(7tooth)(2600&4000RPM)
 SDR-87 Rotor(10tooth)(4000RPM)
19. SP74049 VaneSet
20. 74023 RearEndPlate
21. 10253 BallBearing
22. 21491 RetainingRing
23. SDR-3 DrillHousing
24. SPSDR-28 Grip(IncludesGripTape)
25. 30610 RollPin5/64x3/4in
26. 21542 RetainingRing
27. 14311 O-Ring
28. SDR-23 TriggerSleeve
29. SDR-200 Trigger
30. 04046 SilencerPad(2)*
31.IM3100-22 TipperValveSeat
32. SDR-20 Tipper
33. SDR-13 TriggerSpring
34. 69007 O-Ring
35. SDR-35 ExhaustCap
36. 66244R InletAdapter
Not Shown:
 SPSDR-77A 7ToothRotor.6HPMotorAssembly(2600&
6000RPM)(IncludesFigures15-22)
 SPSDR-87A 10ToothRotor.6HPMotorAssembly(4000
RPM)(IncludesFigures15-22)
 SPSDR-3A .6HPNon-ReversingHousingAssembly
(IncludesFigures23-36)
 SPSDR-60A GearCarrierAssembly(3/8"thread)
(2600RPM)(IncludesFigures5-9)
 SPSDR-62A GearCarrierAssembly(3/8"thread)
(4000RPM)(IncludesFigures5-9)
 SPSDR-63A GearCarrierAssembly(3/8"thread)
(6000RPM)(IncludesFigures5-9)
 SPSDR-64A GearCarrierAssembly(1/2"thread)
(2600RPM)(IncludesFigures5-9)
 30000 ChuckKey1/4"
 30002 ChuckKey3/8"
 30429 ChuckKey1/2"
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
