Sioux Tools SDR10T40N3 - Parts List for SDR10 T Series Drills (Double Reduction)

Form Z833 4 Date 2017February28/A
23
17
18
19
20
21
22
24
25
26
16
5
15
13
14
12
11
27
28
29
30
31
32
33
35
1
2
3
6
7
4
5
8
9
10
34
11
36
37
38
39

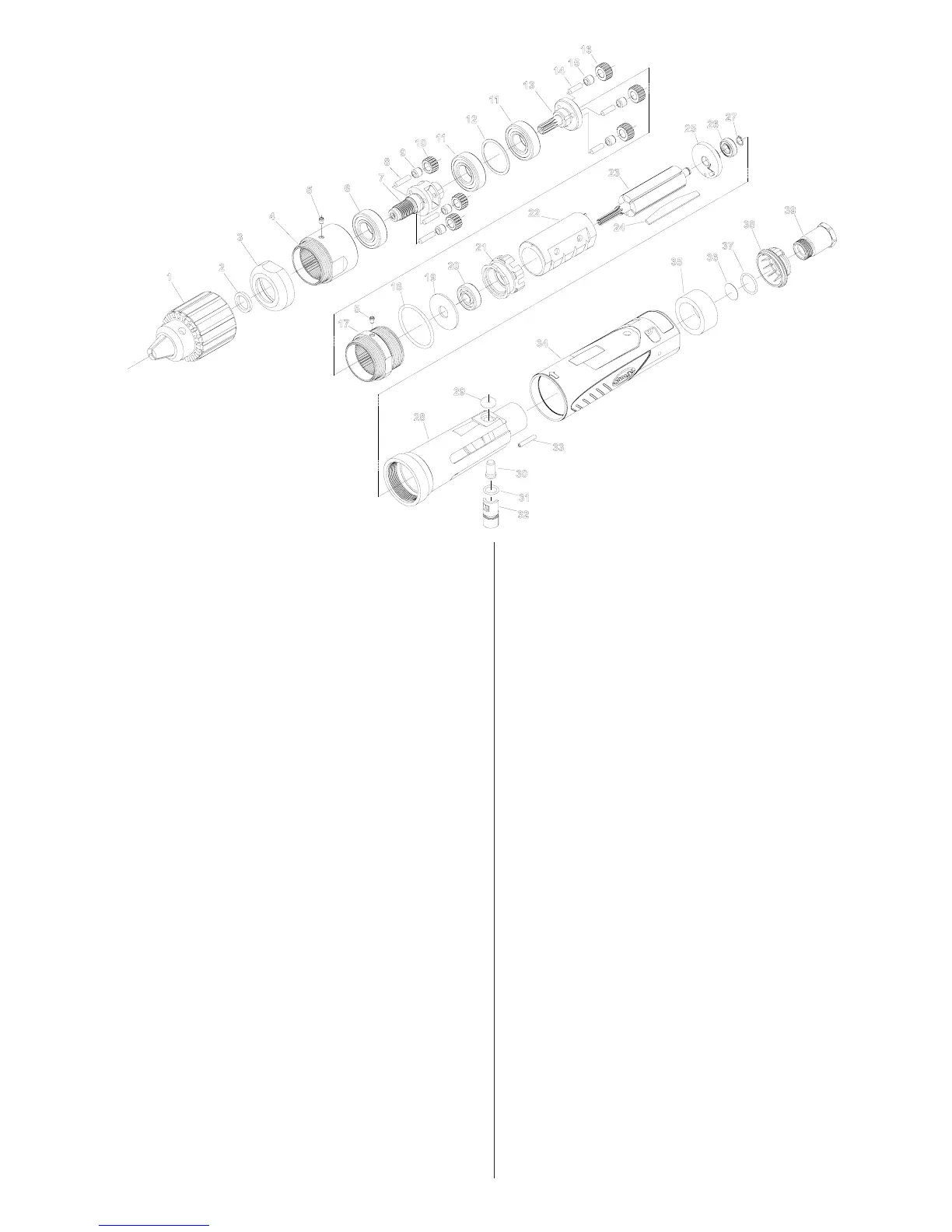

PARTS LIST FOR SDR10T SERIES DRILLS
NON-REVERSING DOUBLE REDUCTION
SERIAL “A”
1. 21133B 3/8" Chuck (for model numbers ending with 3)
74222 1/2" Chuck (for model numbers ending with 4)
2. ME5A72 Washer (for model numbers ending with 3)
35798 Washer (for model numbers ending with 4)
3. SDR-43 Gear Case Cap
4. SDR-42 Double Reduction Gear Case (Includes Fig. 5)
5. 30375 Grease Fitting (2)*
6. 10265 Ball Bearing
7. SDR-36A Gear Carrier (1200 RPM)(1/2" thread)
SDR-37A Gear Carrier (700 RPM)(1/2" thread)
SDR-38A Gear Carrier (400 RPM)(1/2" thread)
SDR-39A Gear Carrier (1600 RPM)(1/2" thread)
8. SDR-24 Pin (3)*(for model numbers ending with 4)
30062 Pin (3)*(for model numbers ending with 3)
9. 10028B Needle Bearing (3)*(for model numbers ending with 4)
10040 Needle Bearing (3)*(for model numbers ending with 3)
10. SDR-45 Planetary Gear (3)*(for model numbers ending with 4)
SDR-46 Planetary Gear (3)*(for model numbers ending with 3)
11. ME11A33A Ball Bearing (2)*
12. SDR-27 Spacer
13. SDR-36 Cantilevered Gear Carrier
14. SDR-24 Pin (3)*(for model numbers ending with 4)
30062 Pin (3)*(for model numbers ending with 3)
15. 10028B Needle Bearing (3)*(for model numbers ending with 4)
10040 Needle Bearing (3)*(for model numbers ending with 3)
16. SDR-45 Planetary Gear (3)*(for model numbers ending with 4)
SDR-46 Planetary Gear (3)*(for model numbers ending with 3)
17. SDR-41 Gear Case (Includes Fig. 5)
18. 14333B O-Ring
19. SDR-29 Wear Plate
20. 10220 Ball Bearing
21. SDR-50 Front End Plate
22. 74030 Cylinder, Non-Reversing
23. SDR-7 Rotor (7 tooth)
SDR-8 Rotor (10 tooth)
24. SP74048 Vane (Set of 5)
25. 74023 Rear End Plate
26. 10253 Ball Bearing
Fig. Part
No. No. Description
Fig. Part
No. No. Description
27. 21491 Retaining Ring
28 SDG-1 Straight Non-Reversing Housing
29. 67793 O-ring
30. 69008 Throttle Plug
31. 14290 O-Ring
32. 74013 Regulator
33. 06402 Screw, 6-32 X 3/4 Set Soc Hex
34. 74004 Cover
35. 74016 Muffler
36. 74011 Screen
37. 14281B O-Ring, 1/16 X 5/8 X 3/4
38. 77048 Rotatable Exhaust Deflector
39. 79103 Inlet Adaptor 1/2" NPT
Complete Assemblies:
SPSDR-7SA 7 Tooth Rotor 1HP Motor Assembly
(Includes Figures 20-27)
SPSDR-8SA 10 Tooth Rotor Motor Assembly
(Includes Figures 20-27)
Not Shown:
30002 Chuck Key 3/8" (with 3/8" thread)
30011B Chuck Key 3/8" (with 1/2" thread)
30429 Chuck Key 1/2"
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL
NUMBER WHEN ORDERING PARTS
